Protective Spark Gap

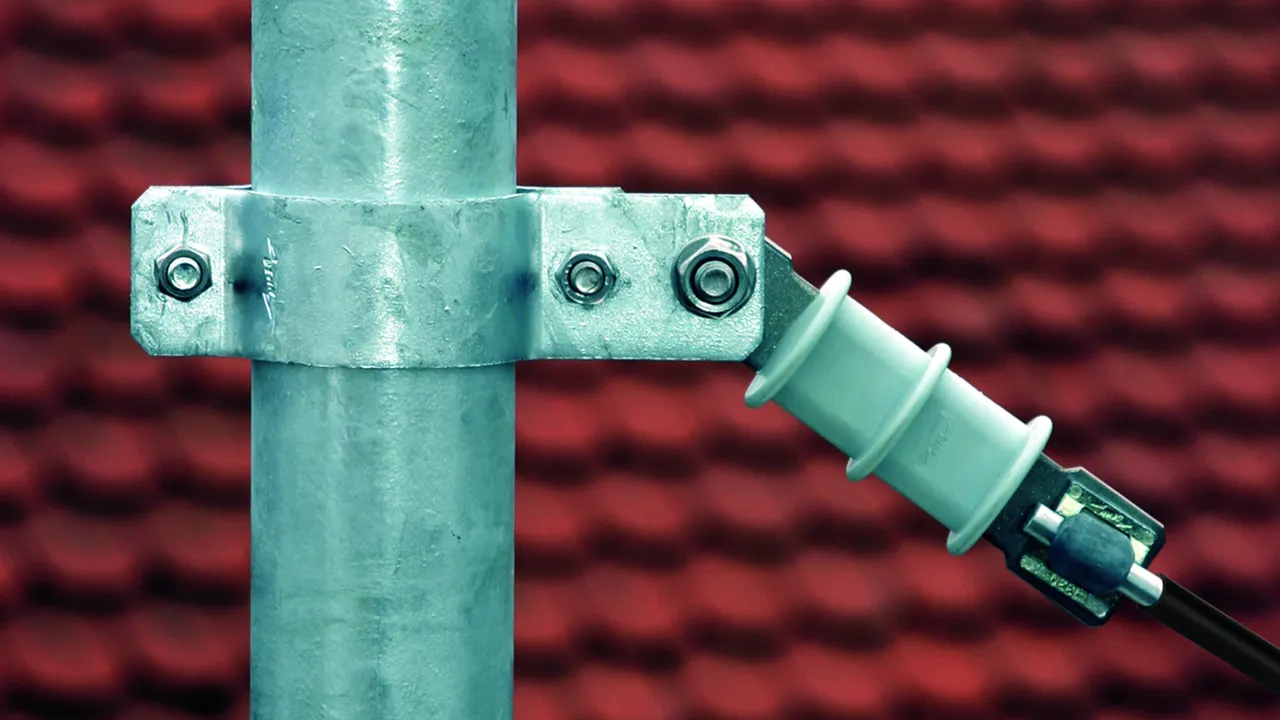

For indirect connection of an overhead line roof pole to the external lightning protection system
Corrosion-resistant stainless steel connections

DSFS

Plastic-insulated protective spark gap for indirect connection of an overhead line roof pole to the external lightning protection system.

1 Produit

GTIN 4013364057494, Clients tariffs no (UE): 85369095, Poids brut: 127.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Brand: DEHN
Type: DSFS
Part No.: 920000
or equivalent.

Caractéristiques techniques

100% lightning impulse sparkover voltage (1.2/50 µs) (U_rimp )	~ 25 kV
Nominal discharge current (8/20 µs) (I_n )	25 kA
Power frequency sparkover voltage (50 Hz) (U_aw )	~ 10 kV

Aller au bloc-notes

Aller à la boutique en ligne

100% lightning impulse sparkover voltage (1.2/50 µs) (U_rimp )	~ 25 kV
Nominal discharge current (8/20 µs) (I_n )	25 kA
Degree of protection	IP 54
Power frequency sparkover voltage (50 Hz) (U_aw )	~ 10 kV
Material (connection)	stainless steel (V2A)
Connection	slot Ø13x11 mm
Enclosure material	plastic
