Protection module for DEHNgap modular

High discharge capacity due to powerful creepage discharge spark gap
Easy replacement of protection modules without tools due to module locking system with module release button
Operating state / fault indication by green / red indicator flag in the inspection window

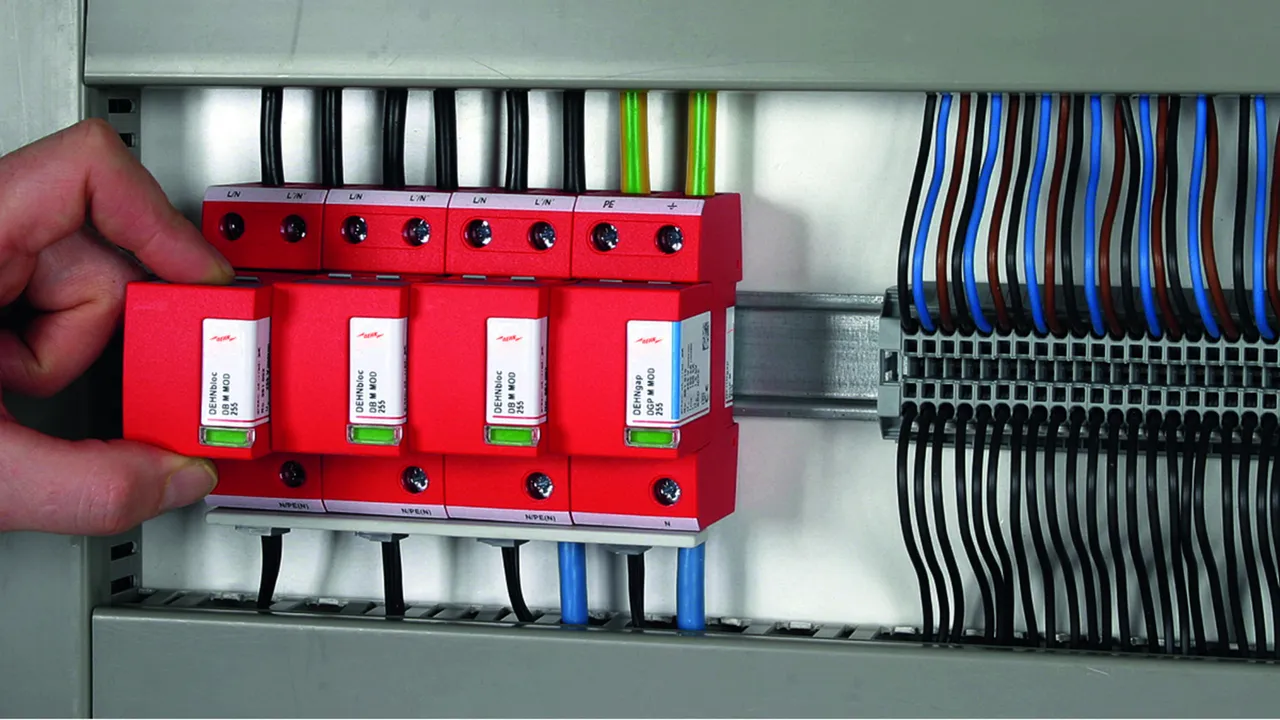

The plug-in protection module can be replaced without the need to de-energise and without removing the distribution board cover

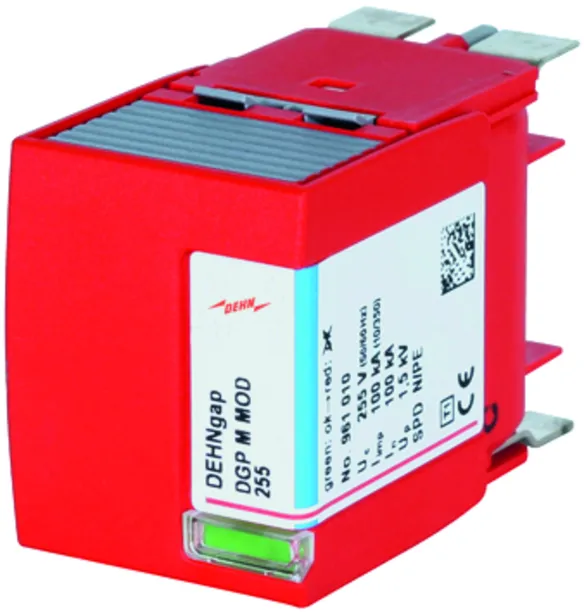

DGP M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap M family.

1 Produit

Référence de la pièce 961010 DGP M MOD 255

GTIN 4013364118744, Clients tariffs no (UE): 85363030, Poids brut: 182.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

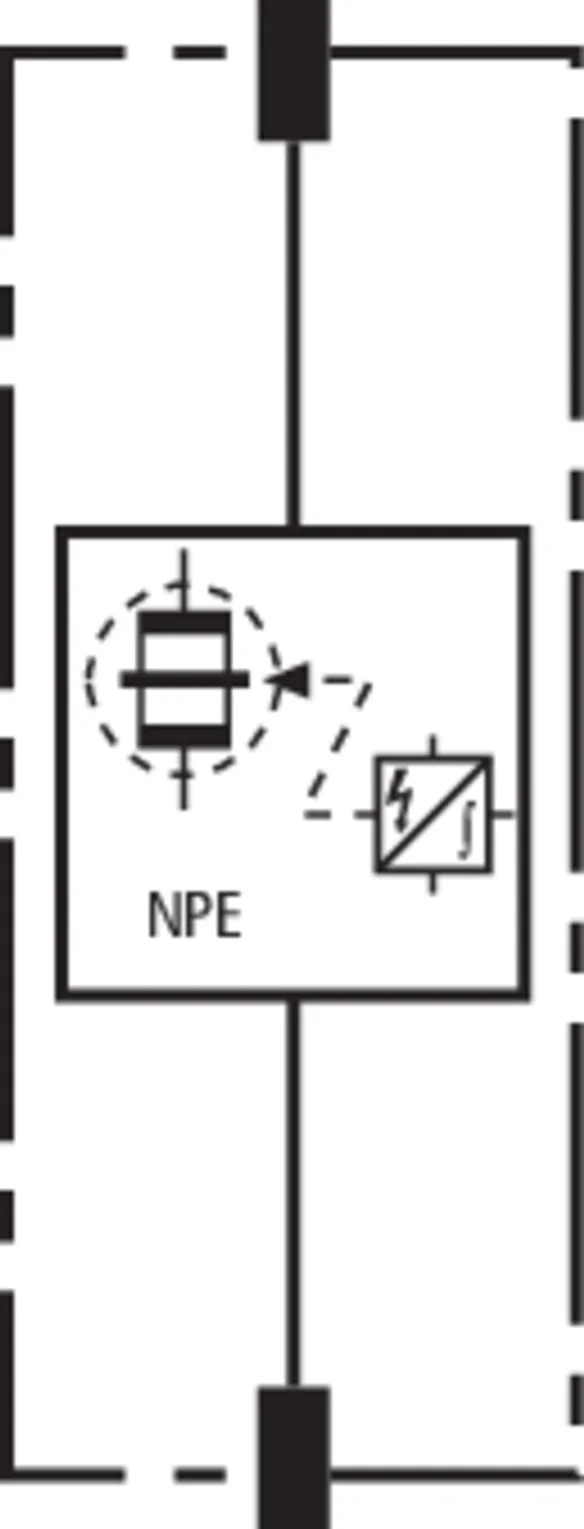

DGP M MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module for all
devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
Heavy-duty creepage discharge spark gap
Fault indication
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 kArms at 255 V a.c.

Brand: DEHN
Type: DGP M MOD 255
Part No.: 961010
or equivalent.

Caractéristiques techniques

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA

Le produit 961010 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 961010 a été ajouté au panier.

Aller à la boutique en ligne

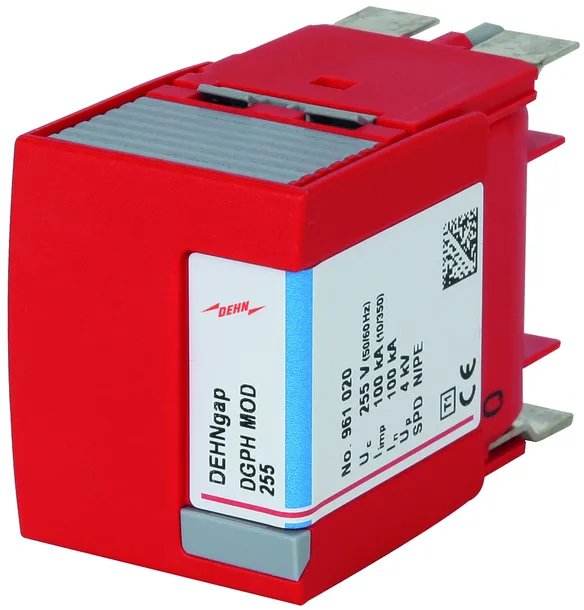

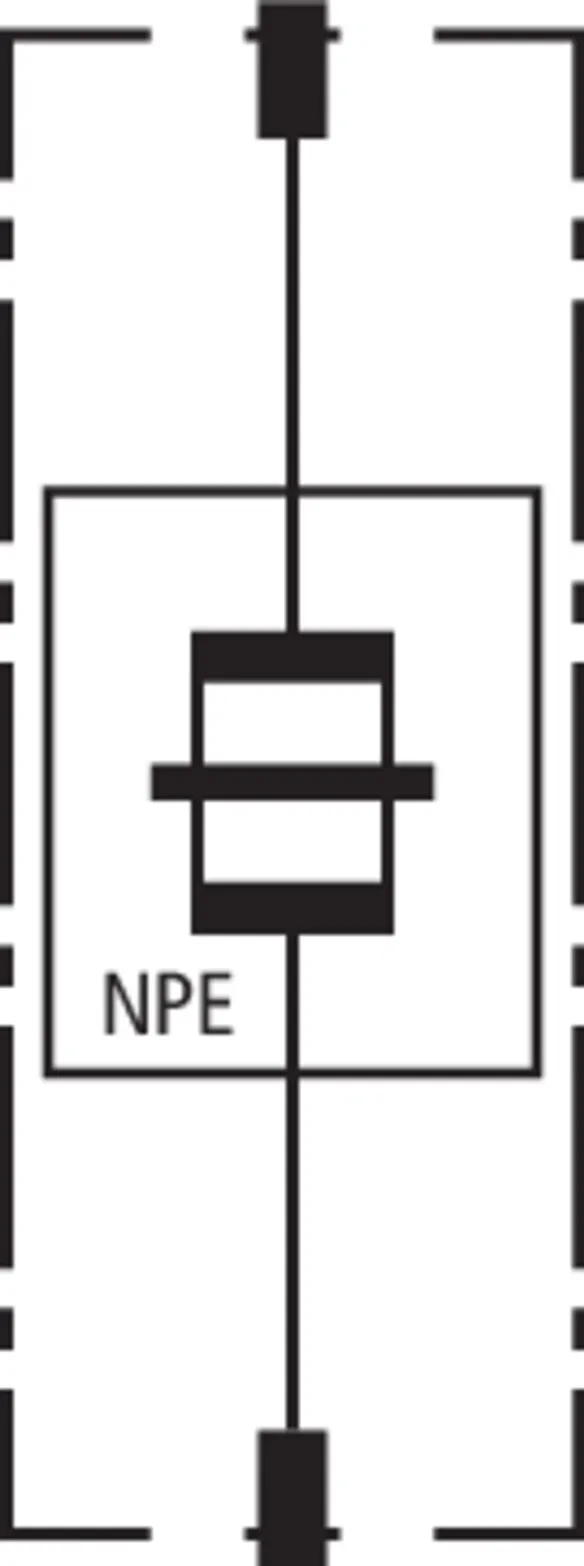

DGPH M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap H M family.

1 Produit

Référence de la pièce 961020 DGPH MOD 255

GTIN 4013364118706, Clients tariffs no (UE): 85363030, Poids brut: 151.00 g, Prix unitaire: 1.00 pc(s)
