DPL 10 G3

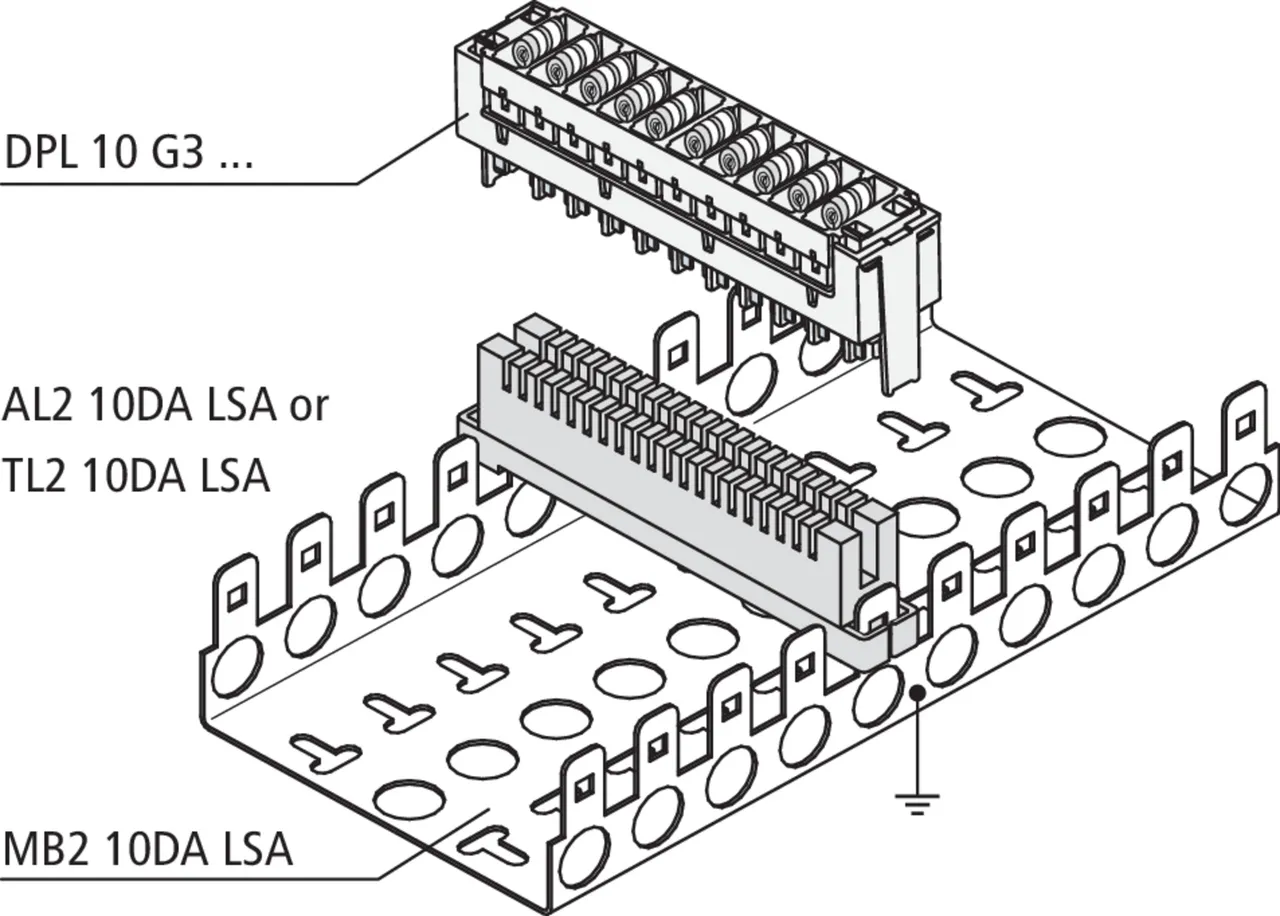

- Suitable for disconnection or terminal blocks of LSA systems of the 2/10 series
- Equipped with individually tested gas discharge tubes for ten pairs
- Individually exchangeable protection elements (gas discharge tubes)
Détails
DPL 10 G3

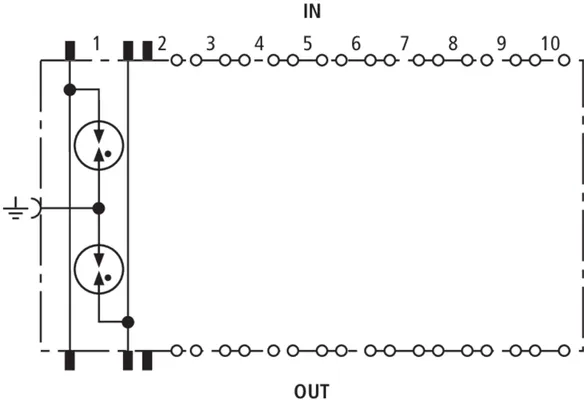

Plug-in SPD block for ten pairs with three-pole gas discharge tubes for almost all applications. FSD arresters feature a fail-safe function and an additional visual indication when the fail-safe function has been activated. Thus, it can be immediately identified whether an arrester has to be replaced.
2 Produits

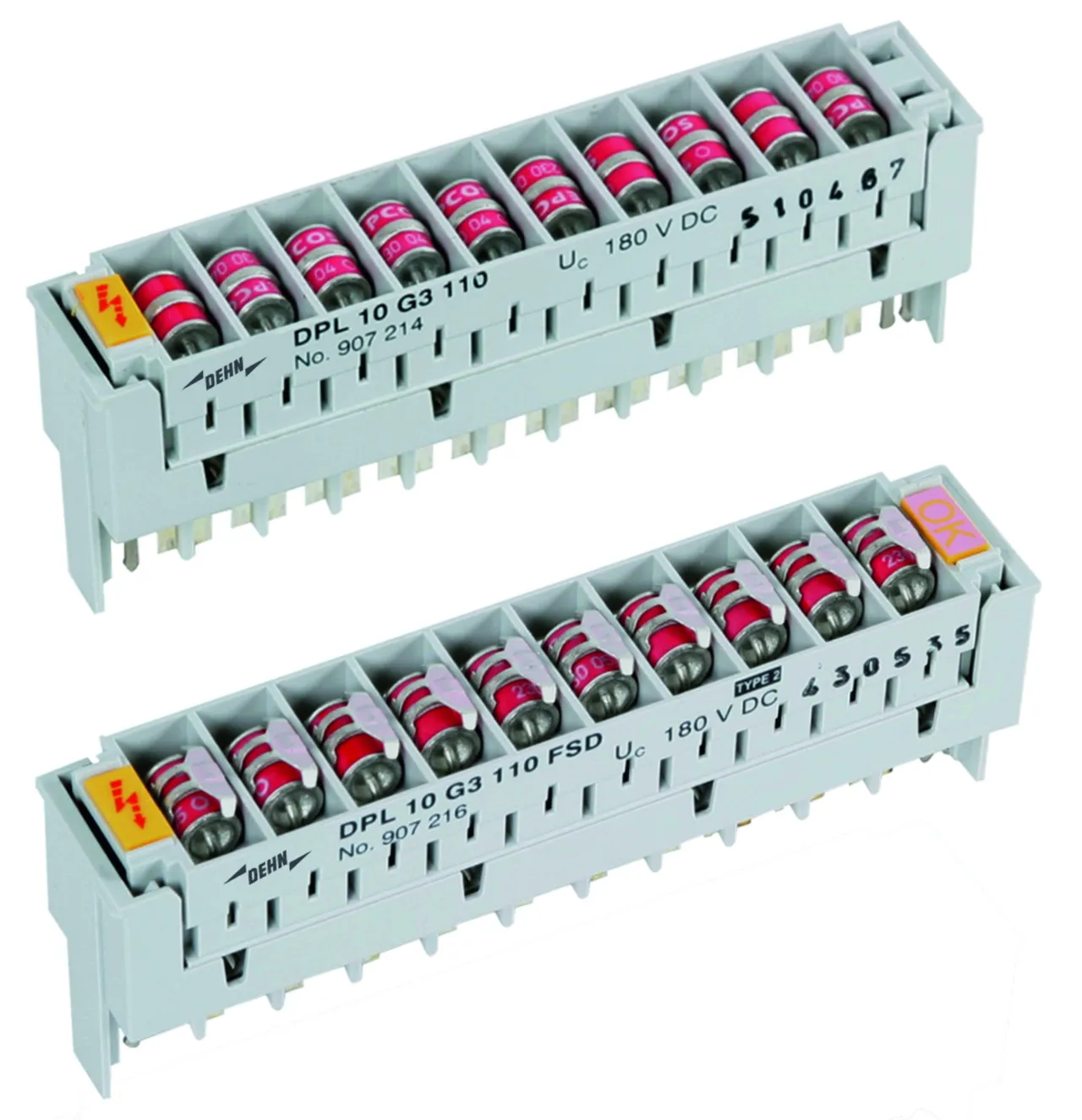

Référence de la pièce 907214 DPL 10 G3 110
GTIN 4013364100879, Clients tariffs no (UE): 85363010, Poids brut: 71.30 g, Prix unitaire: 1.00 pc(s)
Caractéristiques techniques
SPD class | B |
Max. continuous operating voltage (d.c.) (Uc ) | 180 V |
Nominal current (IL ) | 0.4 A |
C2 Total nominal discharge current (8/20 µs) (In ) | 10 kA |

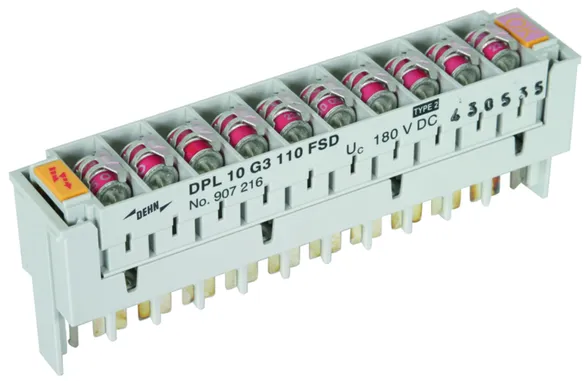

Référence de la pièce 907216 DPL 10 G3 110 FSD
GTIN 4013364106680, Clients tariffs no (UE): 85363010, Poids brut: 70.80 g, Prix unitaire: 1.00 pc(s)
PrécédentCaractéristiques techniques
SPD class | B |
Fault indication | visual, colour change |
Max. continuous operating voltage (d.c.) (Uc ) | 180 V |
Nominal current (IL ) | 0.4 A |
C2 Total nominal discharge current (8/20 µs) (In ) | 10 kA |
