DEHNgate – SPDs for Coaxial Connection

Universal surge and combined arresters
Maximum discharge capacity for coaxial systems
Low voltage protection level also suitable for protecting terminal equipment
Extremely durable contact materials

Détails

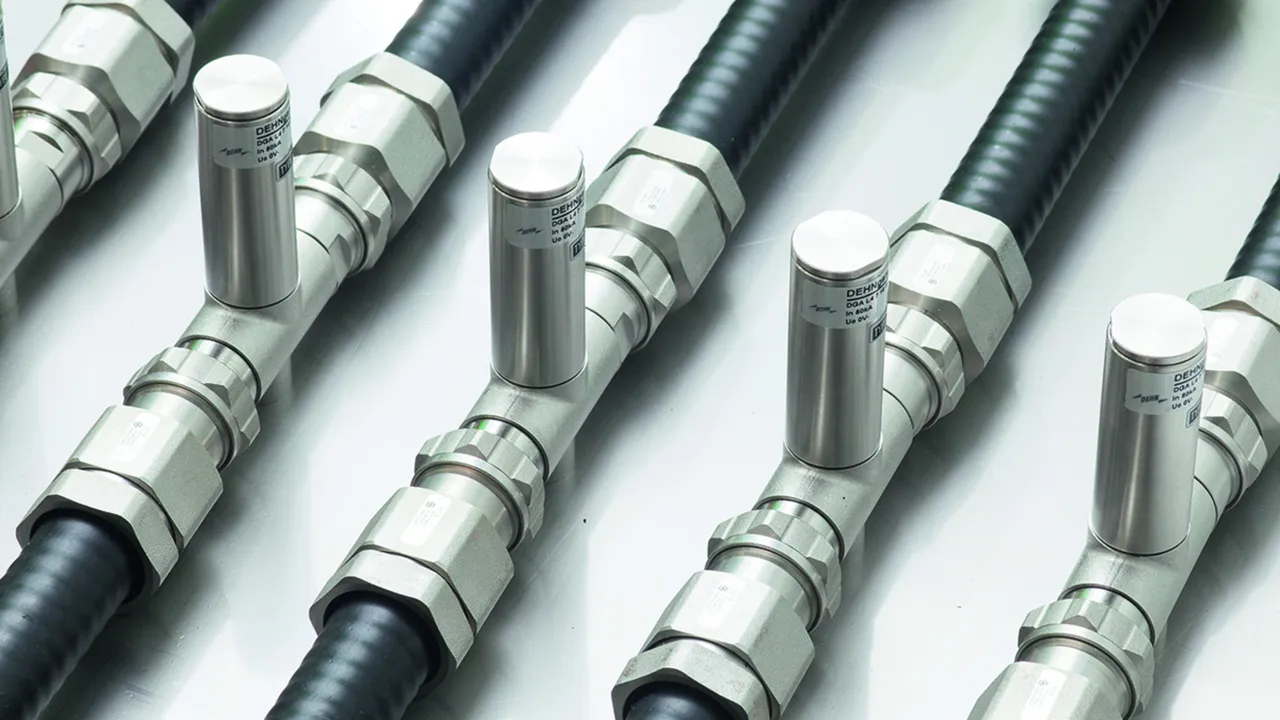

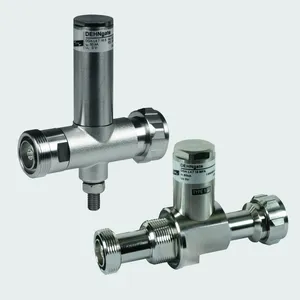

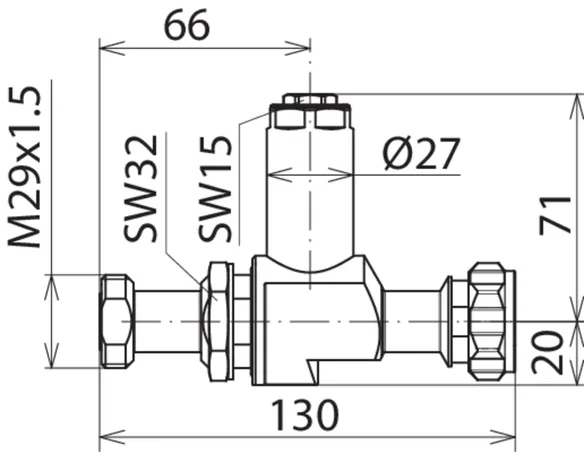

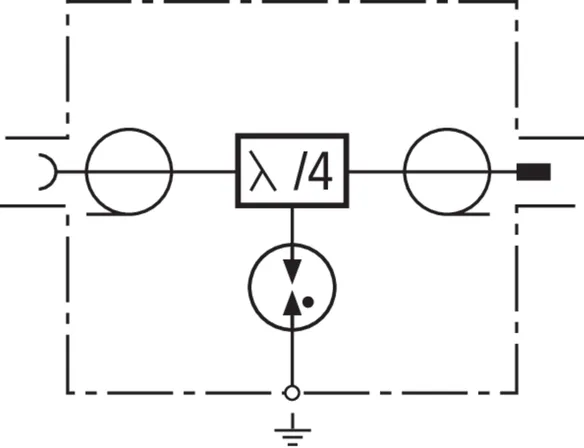

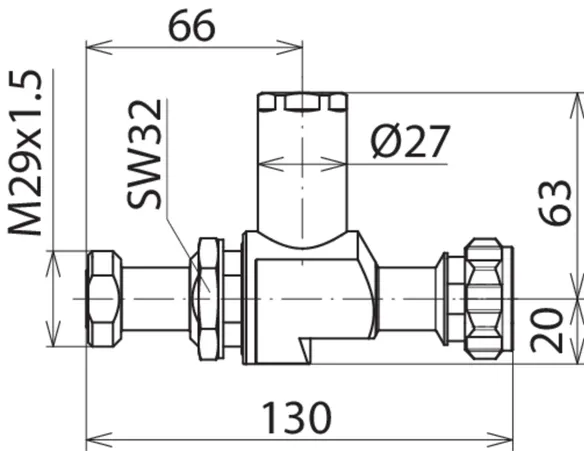

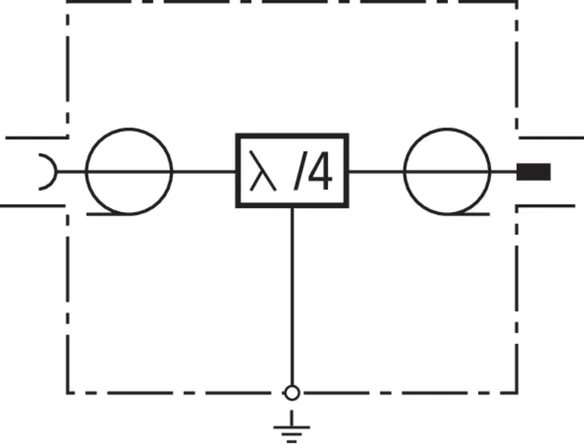

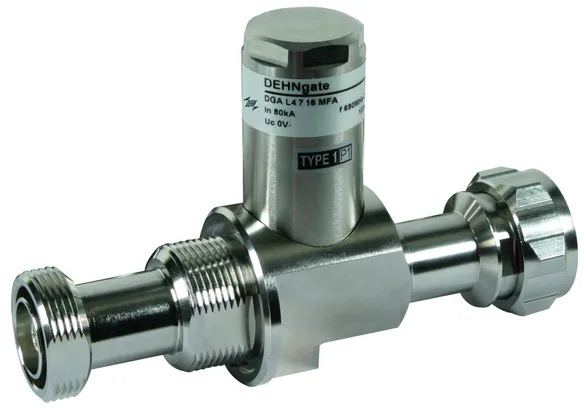

Maintenance-free quarter-wave surge arresters for protecting high-frequency applications (e.g. LTE).

lorem ipsum — Maintenance-free quarter-wave surge arresters for protecting high-frequency applications (e.g. LTE).

Surge arrester for satellite and broadband cable systems.

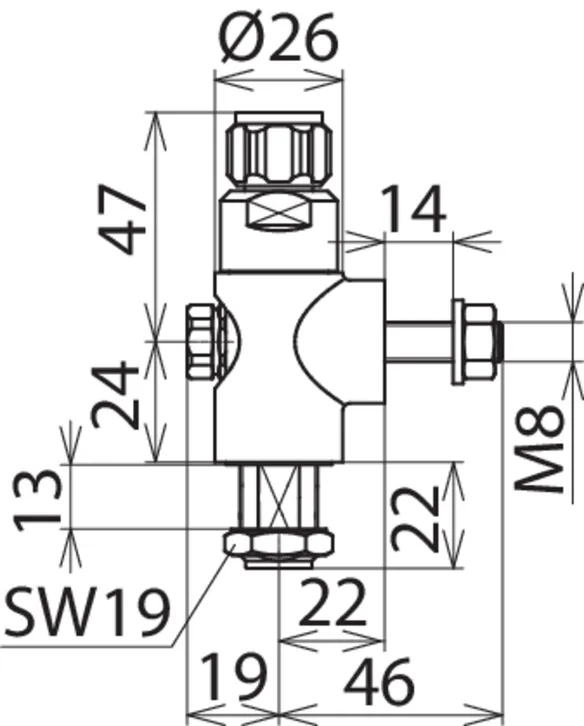

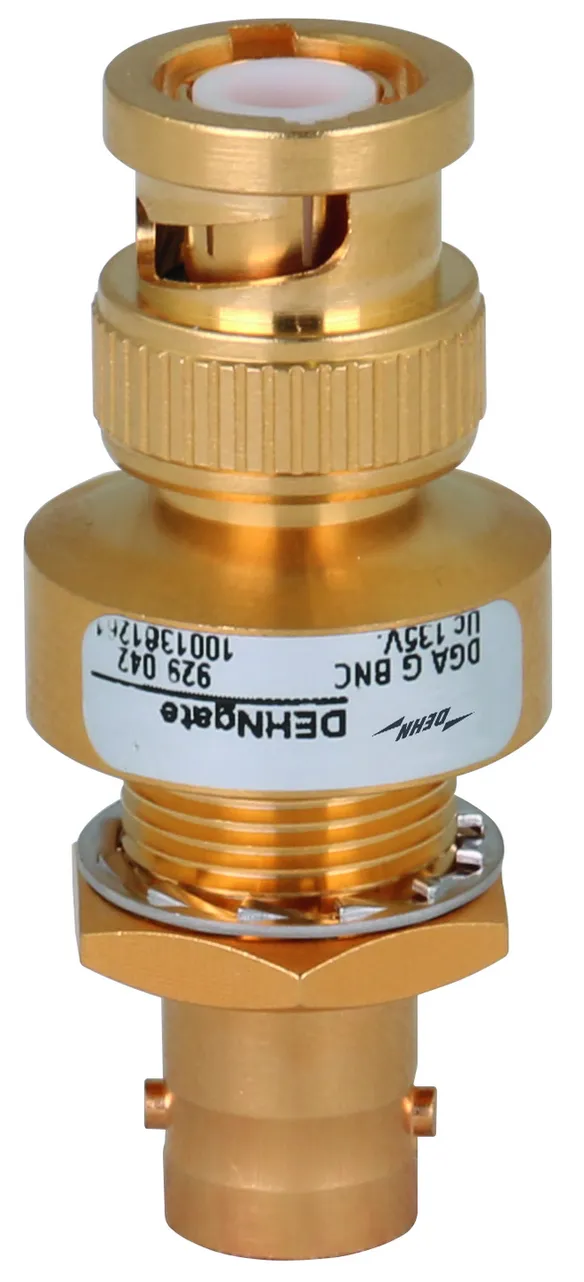

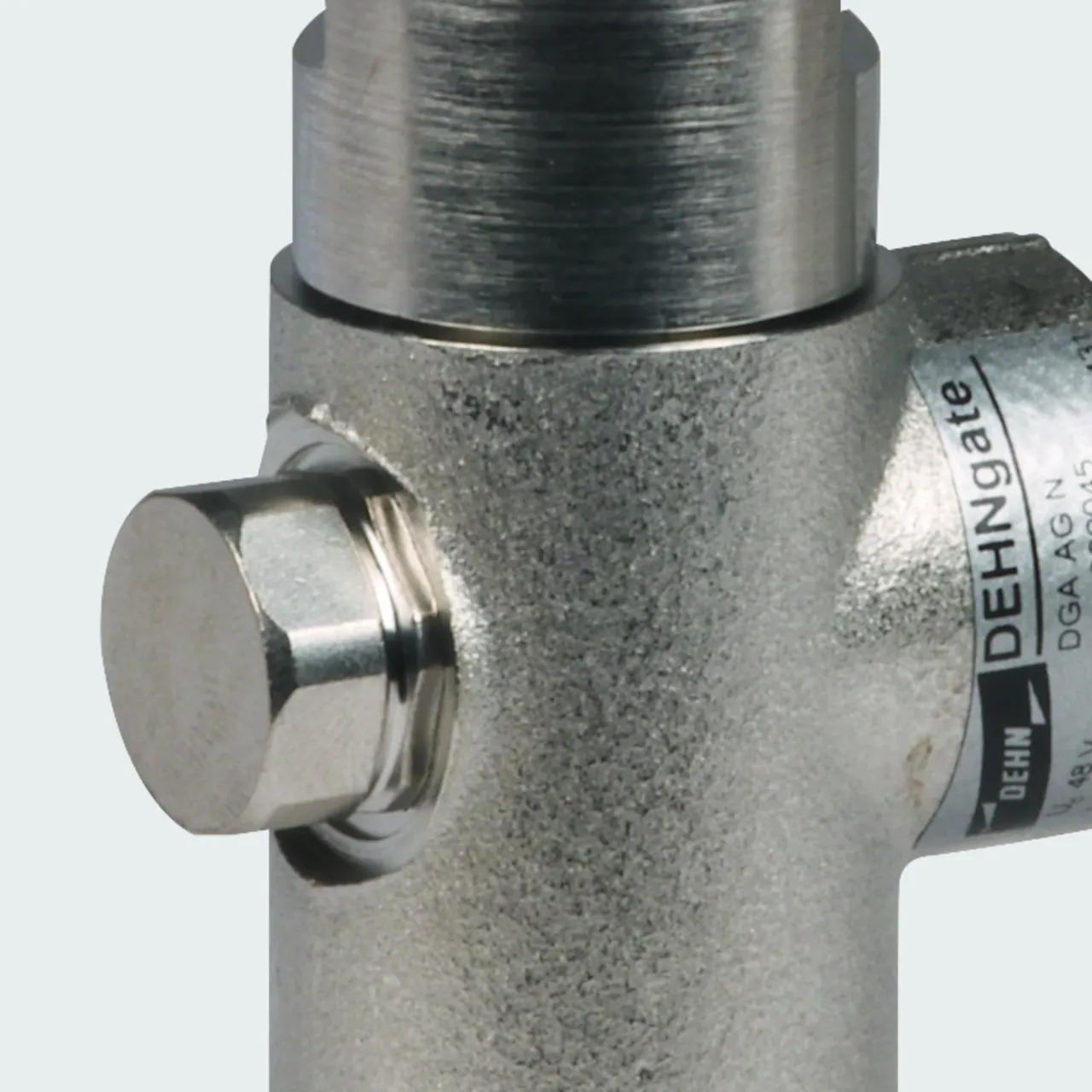

Coaxial arrester with exchangeable gas capsule.

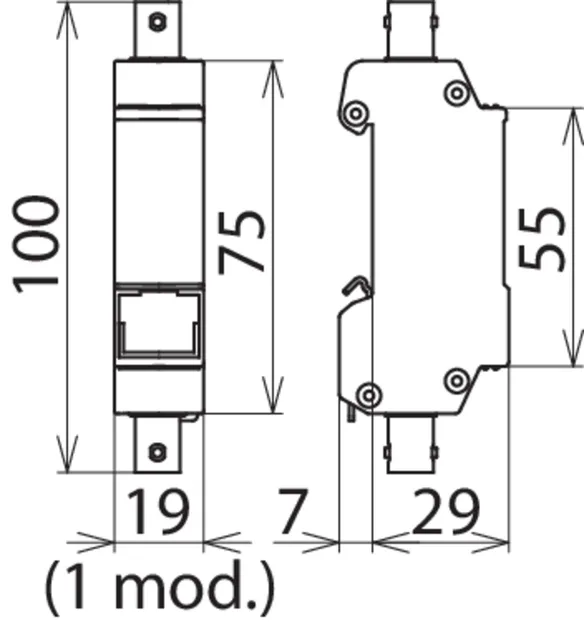

DGA BNC VC

The space-saving surge arrester with BNC socket can be mounted on DIN rails for protecting video and camera systems. Available with direct (VCD) or indirect shield connection (VCID) depending on the type to avoid ground loops.

2 Produits

Référence de la pièce 909710 DGA BNC VCD

GTIN 4013364118942, Clients tariffs no (UE): 85366910, Poids brut: 126.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

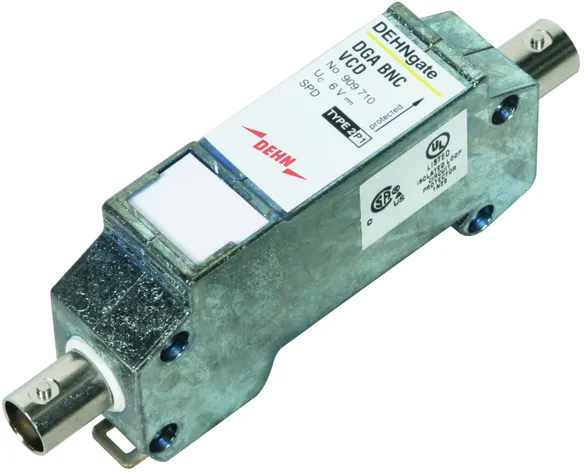

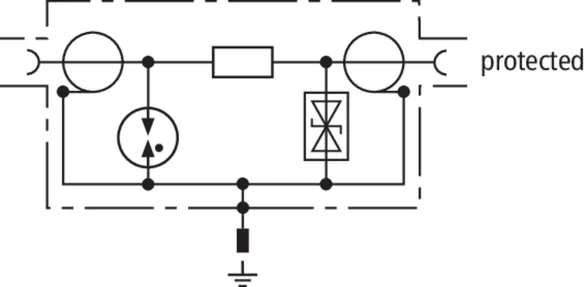

DEHNgate DGA BNC VCD surge arrester with BNC socket connection
DEHNgate surge arrester
SPD class: type 2/P1
Tested to EN 61643-21 for protecting
video systems or Arcnet computer systems
With coaxial BNC socket connection
Shield is always directly earthed
Max. continuous operating voltage (d.c.): 6.4 V
D1 Lightning impulse current (10/350 µs): 1 kA
Frequency range: 0-300 MHz

Brand: DEHN
Type: DGA BNC VCD
Part No.: 909710
or equivalent.

Certificats

Caractéristiques techniques

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	6.4 V
Nominal current (I_L )	0.1 A
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	5 kA
Frequency range	0-300 MHz
Connection (input / output)	BNC socket / BNC socket
Approvals	CSA, UL

SPD class	T
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	6.4 V
Nominal current (I_L )	0.1 A
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) shield-PG (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	5 kA
Voltage protection level line-shield for I_nC2 (U_P )	≤ 35 V
Voltage protection level line-shield at 1 kV/µs C3 (U_P )	≤ 13 V
Frequency range	0-300 MHz
Insertion loss at 160 MHz	≤ 0.4 dB
Insertion loss at 300 MHz	≤ 3 dB
Return loss at 130 MHz	≥ 20 dB
Return loss at 300 MHz	≥ 8 dB
Characteristic impedance (Z)	50 ohms
Series resistance per line	4.7 ohms
Capacitance line-shield (C)	≤ 25 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 10
For mounting on	35 mm DIN rails according to EN 60715
Connection (input / output)	BNC socket / BNC socket
Earthing via	35 mm DIN rail according to EN 60715
Enclosure material	zinc die-casting
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	CSA, UL

Le produit 909710 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 909710 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 909711 DGA BNC VCID

GTIN 4013364118980, Clients tariffs no (UE): 85366910, Poids brut: 127.50 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

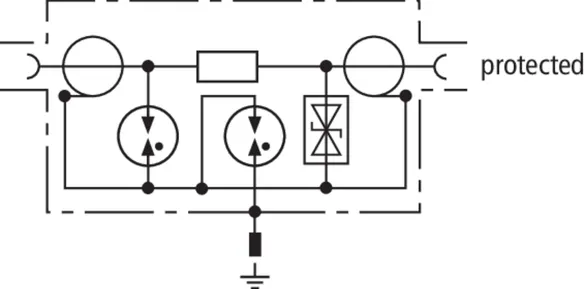

DEHNgate DGA BNC VCID surge arrester with BNC socket connection
DEHNgate surge arrester
SPD class: type 2/P1
Tested to EN 61643-21 for protecting
video systems or Arcnet computer systems
With coaxial BNC socket connection
Shield is earthed indirectly to avoid leakage pick up
Max. continuous operating voltage (d.c.): 6.4 V
D1 Lightning impulse current (10/350 µs): 1 kA
Frequency range: 0-300 MHz

Brand: DEHN
Type: DGA BNC VCID
Part No.: 909711
or equivalent.

Certificats

Caractéristiques techniques

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	6.4 V
Nominal current (I_L )	0.1 A
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	5 kA
Frequency range	0-300 MHz
Connection (input / output)	BNC socket / BNC socket
Approvals	CSA, UL

SPD class	T
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	6.4 V
Nominal current (I_L )	0.1 A
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) shield-PG (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) line-shield (I_n )	5 kA
Voltage protection level line-shield for I_nC2 (U_P )	≤ 35 V
Voltage protection level shield-PG for I_nC2 (U_P )	≤ 650 V
Voltage protection level line-shield at 1 kV/µs C3 (U_P )	≤ 13 V
Voltage protection level shield-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Frequency range	0-300 MHz
Insertion loss at 160 MHz	≤ 0.4 dB
Insertion loss at 300 MHz	≤ 3 dB
Return loss at 130 MHz	≥ 20 dB
Return loss at 300 MHz	≥ 10 dB
Characteristic impedance (Z)	50 ohms
Series resistance per line	4.7 ohms
Capacitance line-shield (C)	≤ 25 pF
Capacitance shield-PG (C)	≤ 20 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 10
For mounting on	35 mm DIN rails according to EN 60715
Connection (input / output)	BNC socket / BNC socket
Earthing via	35 mm DIN rail according to EN 60715
Enclosure material	zinc die-casting
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Approvals	CSA, UL

Le produit 909711 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 909711 a été ajouté au panier.

Aller à la boutique en ligne

DGA TV

DGA ... TV arresters with F connection for remote supply protect 75-ohm satellite and broadband cable systems and fulfil the high shielding requirements of class A according to EN 50083-2. They allow space-saving installation in all common TV and satellite applications and are available as lightning current arresters, surge arresters and combined lightning current and surge arresters with integrated measuring output for checking the system.

3 Produits

Référence de la pièce 909703 DGA FF TV

GTIN 4013364085664, Clients tariffs no (UE): 85363010, Poids brut: 233.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

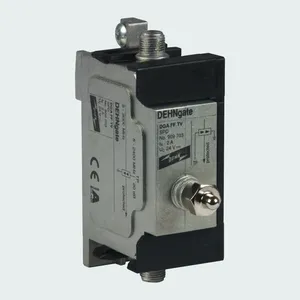

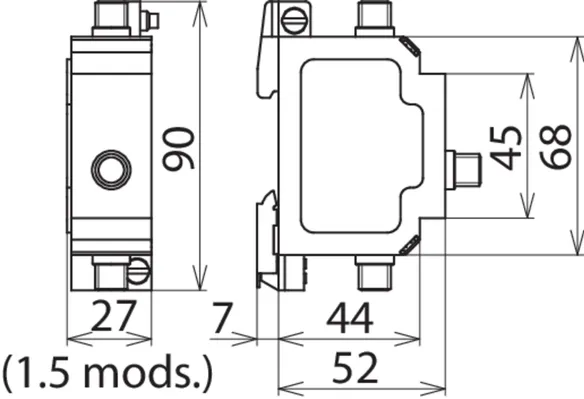

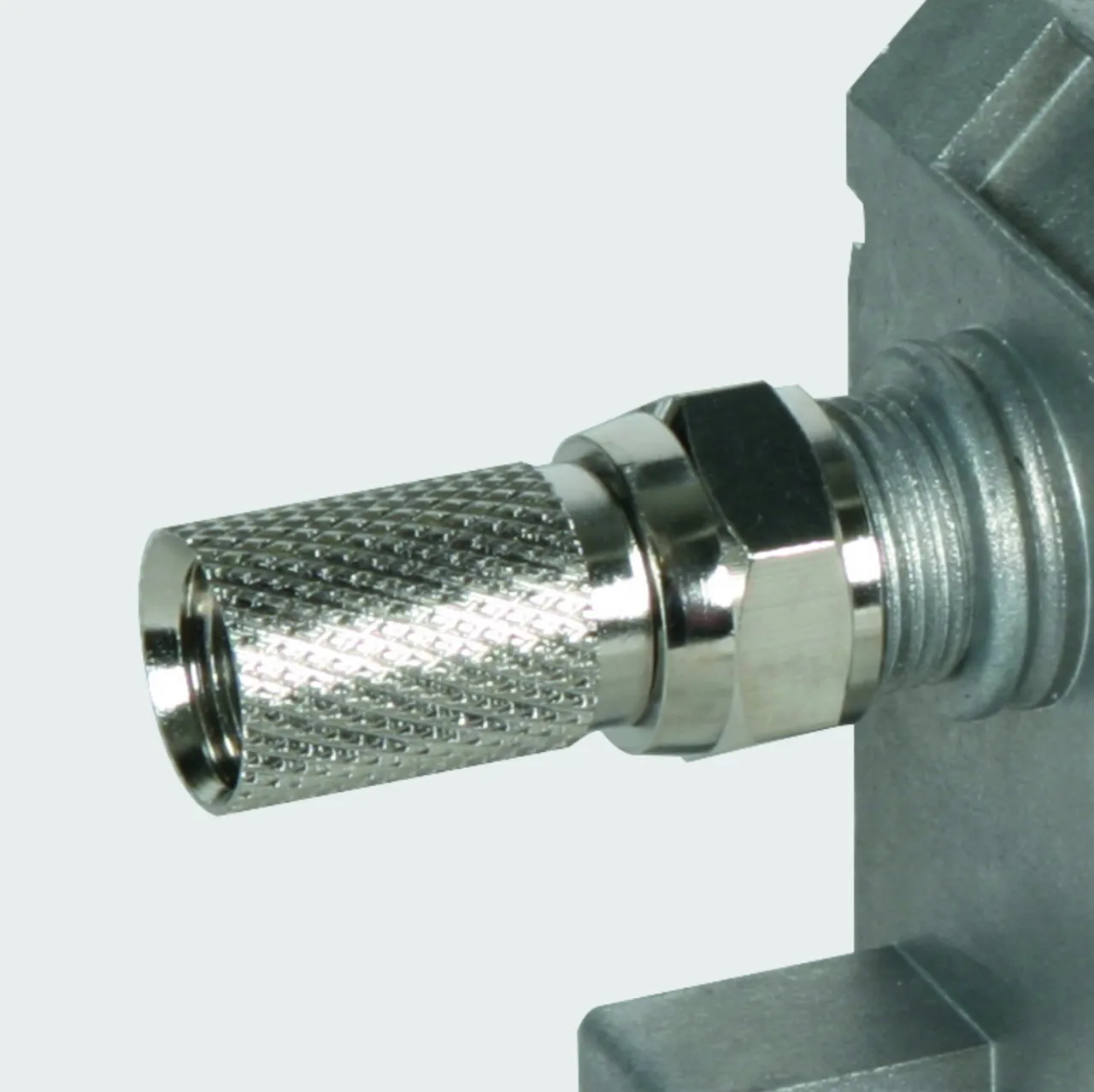

DEHNgate DGA FF TV surge arrester
DEHNgate surge arrester
SPD class: type 3/P1
With integrated measuring / test output for
coaxial 75-ohm TV and SAT systems, tested
to EN 61643-21, energy-coordinated with DGA GF TV
lightning current arrester, suitable for remote
supply, wall-mounted adapter and two F-connectors
included
Class A product
Max. continuous operating voltage (d.c.): 24 V
D1 Lightning impulse current (10/350 µs): 0.2 kA
C2 Nominal discharge current (8/20 µs): 1.5 kA
Frequency range: d.c. / 5-3000 MHz

Brand: DEHN
Type: DGA FF TV
Part No.: 909703
or equivalent.

Certificats

Caractéristiques techniques

SPD class	{
Max. continuous operating voltage (d.c.) (U_C )	24 V
Nominal current (I_L )	2 A
D1 Lightning impulse current (10/350 µs) (I_imp )	0.2 kA
C2 Nominal discharge current (8/20 µs) (I_n )	1.5 kA
Frequency range	d.c. / 5-3000 MHz
Connection (input / output)	F socket / F socket

SPD class	{
Max. continuous operating voltage (d.c.) (U_C )	24 V
Nominal current (I_L )	2 A
D1 Lightning impulse current (10/350 µs) (I_imp )	0.2 kA
C2 Nominal discharge current (8/20 µs) (I_n )	1.5 kA
Voltage protection level for I_impD1 (U_P )	≤ 230 V
Voltage protection level for I_nC2 (U_P )	≤ 300 V
Voltage protection level at 1 kV/µs C3 (U_P )	≤ 60 V
Frequency range	d.c. / 5-3000 MHz
Insertion loss 5-862 MHz typ.	1.2 dB
Insertion loss 862-2400 MHz typ.	1.4 dB
Insertion loss 2400-3000 MHz typ.	2 dB
Return loss	≥ 14 dB
Return loss (47-2400 MHz)	≥ 18 dB (-1.5 dB/octave)
Return loss test socket (5-47 MHz)	≥ 18 dB
Test socket connection loss	20 dB
Shield attenuation 5-300 MHz	≥ 85 dB
Shield attenuation 300-470 MHz	≥ 80 dB
Shield attenuation 470-1000 MHz	≥ 75 dB
Shield attenuation 1000-2400 MHz	≥ 55 dB
Characteristic impedance (Z)	75 ohms
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection (if lines are connected)	IP 30
For mounting on	35 mm DIN rails acc. to EN 60715 or wall mounting
Connection (input / output)	F socket / F socket
Earthing via	DIN rail or screw connection
Enclosure material	metal
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Accessories	2x F plugs

Le produit 909703 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 909703 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 909704 DGA GF TV

GTIN 4013364105690, Clients tariffs no (UE): 85363010, Poids brut: 85.50 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

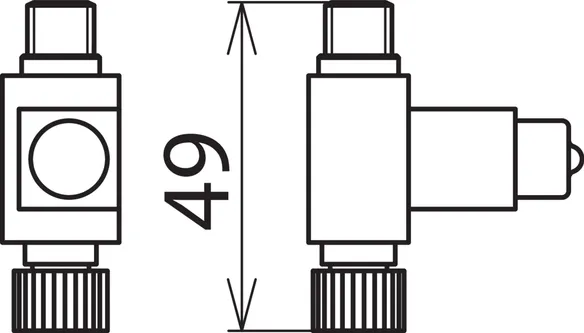

DEHNgate DGA GF TV lightning current arrester
DEHNgate lightning current arrester
SPD class: type 1
For coaxial 75-ohm TV and SAT systems, tested
to EN 61643-21, energy-coordinated with
surge arrester DGA FF TV, suitable for remote
supply, earthing via earthing block, earthing
block and two F-connectors included
Class A product
Max. continuous operating voltage (d.c.): 60 V
D1 Lightning impulse current (10/350 µs): 2.5 kA
C2 Nominal discharge current (8/20 µs): 10 kA
Frequency range: 0-2400 MHz

Brand: DEHN
Type: DGA GF TV
Part No.: 909704
or equivalent.

Certificats

Caractéristiques techniques

SPD class	H
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal current (I_L )	2 A
D1 Lightning impulse current (10/350 µs) (I_imp )	2.5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	10 kA
Frequency range	0-2400 MHz
Connection (input / output)	F socket / F plug

SPD class	H
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal current (I_L )	2 A
D1 Lightning impulse current (10/350 µs) (I_imp )	2.5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level for I_impD1 (U_P )	≤ 700 V
Voltage protection level for I_nC2 (U_P )	≤ 700 V
Voltage protection level at 1 kV/µs C3 (U_P )	≤ 600 V
Frequency range	0-2400 MHz
Insertion loss	0.5 dB
Return loss	≥ 18 dB (-1.5 dB/octave)
Shield attenuation 5-300 MHz	≥ 85 dB
Shield attenuation 300-470 MHz	≥ 80 dB
Shield attenuation 470-1000 MHz	≥ 75 dB
Shield attenuation 1000-2400 MHz	≥ 55 dB
Characteristic impedance (Z)	75 ohms
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection (if lines are connected)	IP 30
For mounting on	earthing brackets
Connection (input / output)	F socket / F plug
Earthing via	earthing bracket with screw connection
Enclosure material	metal
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Accessories	earthing bracket and 2x F plug

Le produit 909704 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 909704 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 909705 DGA GFF TV

GTIN 4013364105706, Clients tariffs no (UE): 85363010, Poids brut: 282.70 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNgate DGA GFF TV combined arrester
DEHNgate combined arrester
SPD class: type 1/P1
With integrated measuring / test output for
coaxial 75-ohm TV and SAT systems, tested
to EN 61643-21 and energy-coordinated acc. to
61643-22, suitable for remote supply, wall-mounted
adapter and two F-connectors included
Class A product
Max. continuous operating voltage (d.c.): 24 V
D1 Lightning impulse current (10/350 µs): 2.5 kA
C2 Nominal discharge current (8/20 µs): 10 kA
Frequency range: d.c. / 5-2400 MHz

Brand: DEHN
Type: DGA GFF TV
Part No.: 909705
or equivalent.

Certificats

Caractéristiques techniques

SPD class	H{
Max. continuous operating voltage (d.c.) (U_C )	24 V
Nominal current (I_L )	2 A
D1 Lightning impulse current (10/350 µs) (I_imp )	2.5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	10 kA
Frequency range	d.c. / 5-2400 MHz
Connection (input / output)	F socket / F socket

SPD class	H{
Max. continuous operating voltage (d.c.) (U_C )	24 V
Nominal current (I_L )	2 A
D1 Lightning impulse current (10/350 µs) (I_imp )	2.5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level for I_impD1 (U_P )	≤ 230 V
Voltage protection level for I_nC2 (U_P )	≤ 300 V
Voltage protection level at 1 kV/µs C3 (U_P )	≤ 60 V
Frequency range	d.c. / 5-2400 MHz
Insertion loss 5-862 MHz typ.	1.7 dB
Insertion loss 862-2400 MHz typ.	1.9 dB
Return loss (5-8 MHz)	≥ 10 dB
Return loss (8-47 MHz)	≥ 14 dB
Return loss (47-2400 MHz)	≥ 18 dB (-1.5 dB/octave)
Return loss test socket (5-47 MHz)	≥ 18 dB
Test socket connection loss	20 dB
Shield attenuation 5-300 MHz	≥ 85 dB
Shield attenuation 300-470 MHz	≥ 80 dB
Shield attenuation 470-1000 MHz	≥ 75 dB
Shield attenuation 1000-2400 MHz	≥ 55 dB
Characteristic impedance (Z)	75 ohms
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection (if lines are connected)	IP 30
For mounting on	35 mm DIN rails acc. to EN 60715 or wall mounting
Connection (input / output)	F socket / F socket
Earthing via	DIN rail or screw connection
Enclosure material	metal
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21
Accessories	2x F plug

Le produit 909705 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 909705 a été ajouté au panier.

Aller à la boutique en ligne

DGA FF5 TV

Five-channel surge arrester for 75-ohm antenna systems. Special design for SAT antenna splitters and multi-switches. The arrester fulfils the shielding requirements of class A acc. to EN 50083-2. Fixing material and EB conductor included in delivery.

1 Produit

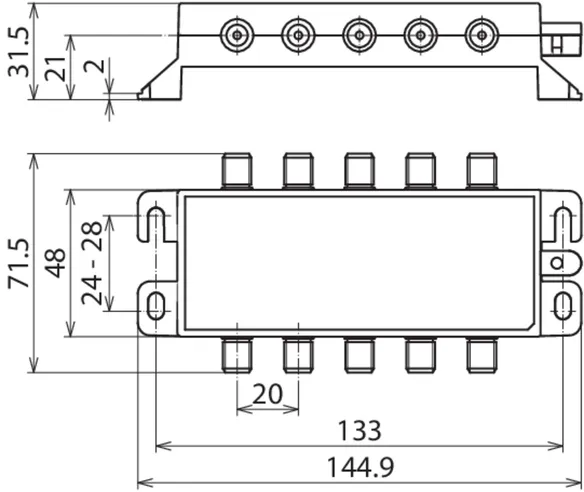

Référence de la pièce 909706 DGA FF5 TV

GTIN 4013364362437, Clients tariffs no (UE): 85363010, Poids brut: 284.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Surge arrester DEHNgate DGA FF5 TV
SPD class Type 2 / P1
Five-channel DEHNgate for
coaxial 75 Ohm TV and SAT
systems, tested acc. to EN 61643-21
Mounting accessories included
Connection for equipotential bonding on enclosure outside
Class A product
Max. continuous operating voltage (d.c.): 20 V
D1 Lightning impulse current (10/350 µs): 0.5 kA
D1 Total lightning impulse current (10/350 µs): 2.5 kA
C2 Nominal discharge current (8/20 µs): 2.5 kA
C2 Total nominal discharge current (8/20 µs): 10 kA
Frequency range: 47-2200 MHz

Brand: DEHN
Type: DGA FF5 TV
Part No.: 909706
or equivalent.

Certificats

Caractéristiques techniques

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	20 V
Nominal current (I_L )	0.4 A
D1 Lightning impulse current (10/350 µs) (I_imp )	0.5 kA
D1 Total lightning impulse current (10/350 µs) (I_imp )	2.5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Frequency range	47-2200 MHz
Connection (input / output)	F socket / F socket

SPD class	T
Max. continuous operating voltage (d.c.) (U_C )	20 V
Nominal current (I_L )	0.4 A
D1 Lightning impulse current (10/350 µs) (I_imp )	0.5 kA
D1 Total lightning impulse current (10/350 µs) (I_imp )	2.5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Voltage protection level for I_nC2 (U_P )	≤ 500 V
Voltage protection level at 1 kV/µs C3 (U_P )	≤ 120 V
Frequency range	47-2200 MHz
Insertion loss 5-2200 MHz typ.	≤ 1 dB
Insertion loss 5-2400 MHz typ.	≤ 3 dB
Near-end crosstalk attenuation 5-2400 MHz typ.	≥ 40 dB
Characteristic impedance (Z)	75 Ohm
Operating temperature range (T_U )	-25 °C ... +55 °C
Degree of protection	IP 40
Mounting	wall mounting
Connection (input / output)	F socket / F socket
Earthing via	enclosure
Enclosure material	metal
Colour	silver
Test standards	IEC 61643-21 / EN 61643-21
Accessories	fixing screws, dowels, EB conductor

Le produit 909706 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 909706 a été ajouté au panier.

Aller à la boutique en ligne

DGA G

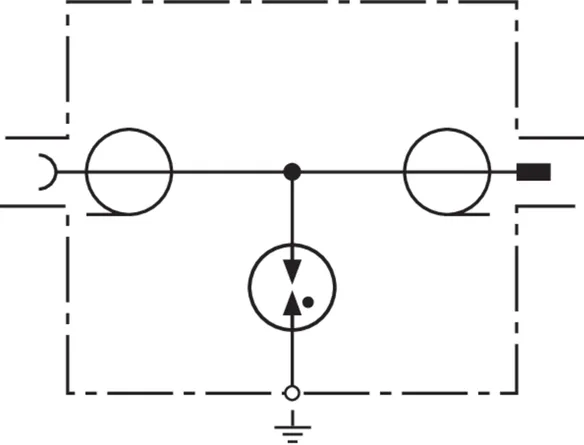

Surge arrester for remote supply with integrated gas discharge tube. Ideally suited for wireless applications for the coaxial interfaces of devices and antennas.
Available with SMA, BNC or N connection for bushing installation.

3 Produits

Référence de la pièce 929039 DGA G SMA

GTIN 4013364135185, Clients tariffs no (UE): 85366910, Poids brut: 24.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

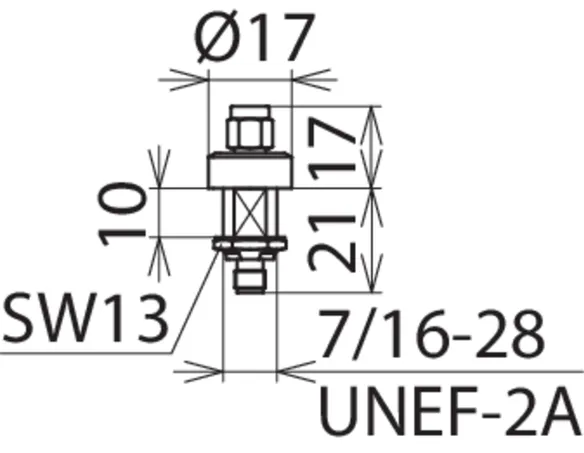

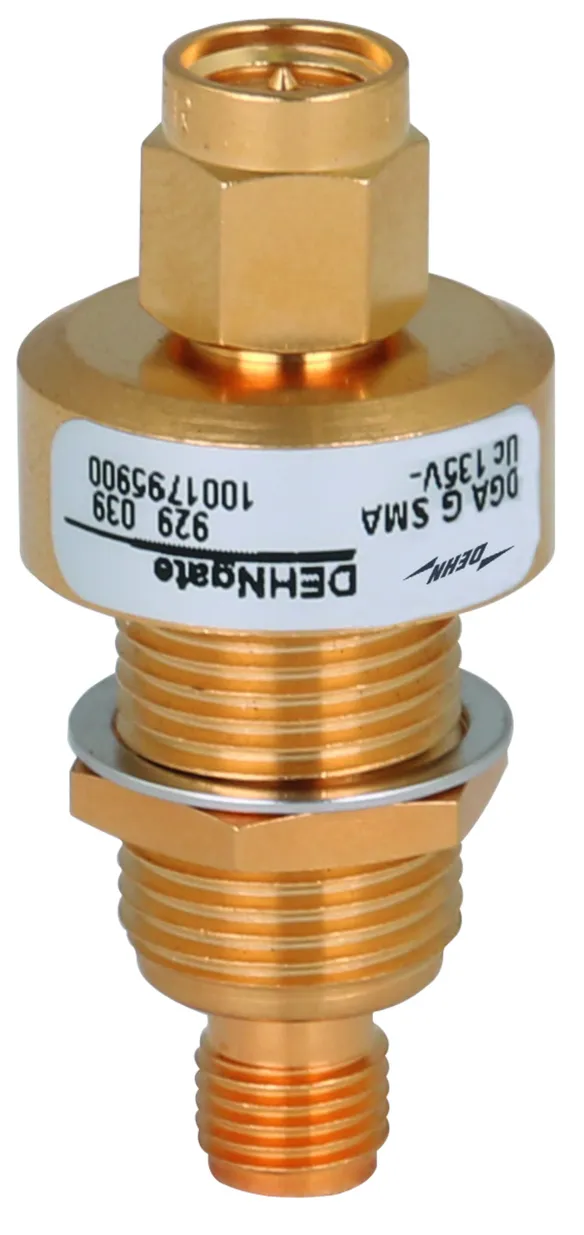

DEHNgate DGA G SMA surge arrester
DEHNgate surge arrester
SPD class: type 2,
For coaxial 50-ohm antenna systems, tested
to EN 61643-21, suitable for remote supply,
earthing via bushing, firmly integrated coaxial
gas discharge tube
Max. continuous operating voltage (d.c.): 135 V
D1 Lightning impulse current (10/350 µs): 1 kA
C2 Nominal discharge current (8/20 µs): 5 kA
Frequency range: 0-5.8 GHz

Brand: DEHN
Type: DGA G SMA
Part No.: 929039
or equivalent.

Certificats

Caractéristiques techniques

SPD class	B
Max. continuous operating voltage (d.c.) (U_C )	135 V
Nominal current (I_L )	2 A
Max. transmission capacity	60 W
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) (I_n )	5 kA
Frequency range	0-5.8 GHz
Connection	SMA socket / SMA plug

SPD class	B
Max. continuous operating voltage (d.c.) (U_C )	135 V
Nominal current (I_L )	2 A
Max. transmission capacity	60 W
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) (I_n )	5 kA
Voltage protection level for I_nC2 (U_P )	≤ 700 V
Frequency range	0-5.8 GHz
Insertion loss	≤ 0.2 dB
Return loss (d.c. - 3 GHz)	≥ 20 dB
Return loss (3 GHz-5.8 GHz)	≥ 18 dB
Characteristic impedance (Z)	50 ohms
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection (if lines are connected)	IP 65
Connection	SMA socket / SMA plug
Earthing via	bushing (Ø11.2 mm)
Enclosure material	gold-plated brass
Colour	gold
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929039 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929039 a été ajouté au panier.

Aller à la boutique en ligne

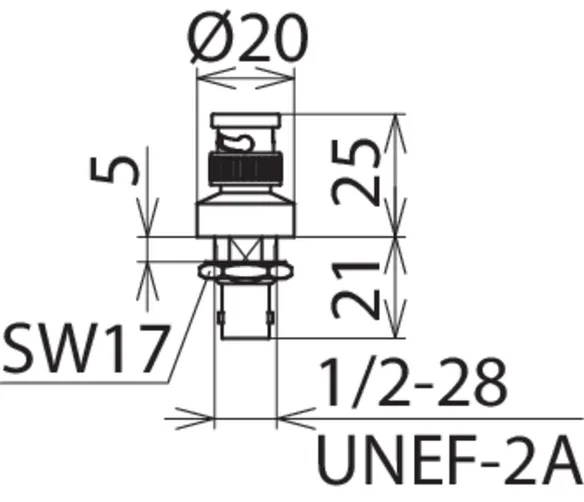

Référence de la pièce 929042 DGA G BNC

GTIN 4013364091030, Clients tariffs no (UE): 85366910, Poids brut: 39.20 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

DEHNgate DGA G BNC surge arrester
DEHNgate surge arrester
SPD class: type 2
For coaxial 50-ohm antenna systems, tested
to EN 61643-21, suitable for remote supply,
earthing via bushing, firmly integrated coaxial
gas discharge tube
Max. continuous operating voltage (d.c.): 135 V
D1 Lightning impulse current (10/350 µs): 1 kA
C2 Nominal discharge current (8/20 µs): 5 kA
Frequency range: 0-4 GHz

Brand: DEHN
Type: DGA G BNC
Part No.: 929042
or equivalent.

Certificats

Caractéristiques techniques

SPD class	B
Max. continuous operating voltage (d.c.) (U_C )	135 V
Nominal current (I_L )	3.5 A
Max. transmission capacity	25 W
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) (I_n )	5 kA
Frequency range	0-4 GHz
Connection	BNC socket / BNC plug

SPD class	B
Max. continuous operating voltage (d.c.) (U_C )	135 V
Nominal current (I_L )	3.5 A
Max. transmission capacity	25 W
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) (I_n )	5 kA
Voltage protection level for I_nC2 (U_P )	≤ 650 V
Frequency range	0-4 GHz
Insertion loss	≤ 0.2 dB
Return loss (d.c. - 3 GHz)	≥ 20 dB
Return loss (3 GHz-4 GHz)	≥ 20 dB
Characteristic impedance (Z)	50 ohms
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection (if lines are connected)	IP 20
Connection	BNC socket / BNC plug
Earthing via	bushing (Ø12.9 mm)
Enclosure material	brass, gold-plated
Colour	gold
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929042 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929042 a été ajouté au panier.

Aller à la boutique en ligne

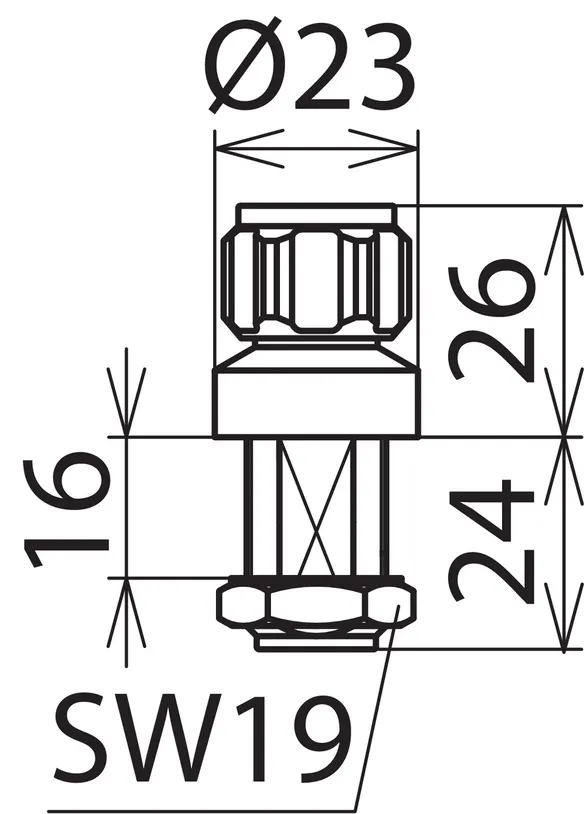

Référence de la pièce 929044 DGA G N

GTIN 4013364091054, Clients tariffs no (UE): 85366910, Poids brut: 86.30 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

fichiers CAO

DEHNgate DGA G N surge arrester
DEHNgate surge arrester
SPD class: type 2
For coaxial 50-ohm antenna systems, tested
to EN 61643-21, suitable for remote supply,
earthing via bushing, firmly integrated coaxial
gas discharge tube
Max. continuous operating voltage (d.c.): 135 V
D1 Lightning impulse current (10/350 µs): 1 kA
C2 Nominal discharge current (8/20 µs): 5 kA
Frequency range: 0-5.8 GHz

Brand: DEHN
Type: DGA G N
Part No.: 929044
or equivalent.

Certificats

Caractéristiques techniques

SPD class	B
Max. continuous operating voltage (d.c.) (U_C )	135 V
Nominal current (I_L )	6 A
Max. transmission capacity	60 W
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) (I_n )	5 kA
Frequency range	0-5.8 GHz
Connection	N socket / N plug

SPD class	B
Max. continuous operating voltage (d.c.) (U_C )	135 V
Nominal current (I_L )	6 A
Max. transmission capacity	60 W
D1 Lightning impulse current (10/350 µs) (I_imp )	1 kA
C2 Nominal discharge current (8/20 µs) (I_n )	5 kA
Voltage protection level for I_nC2 (U_P )	≤ 650 V
Frequency range	0-5.8 GHz
Insertion loss	≤ 0.2 dB
Return loss (d.c. - 5.6 GHz)	≥ 20 dB
Return loss (5.6 GHz-5.8 GHz)	≥ 18.5 dB
Characteristic impedance (Z)	50 ohms
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection (if lines are connected)	IP 65
Connection	N socket / N plug
Earthing via	bushing (Ø16.2 mm)
Enclosure material	brass, gold-plated
Colour	gold
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929044 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929044 a été ajouté au panier.

Aller à la boutique en ligne

DGA AG

Arrester suitable for remote supply with exchangeable gas discharge tube. Long endurance due to minimum contact erosion resulting from the large-area contact surface of the gas discharge tube.

2 Produits

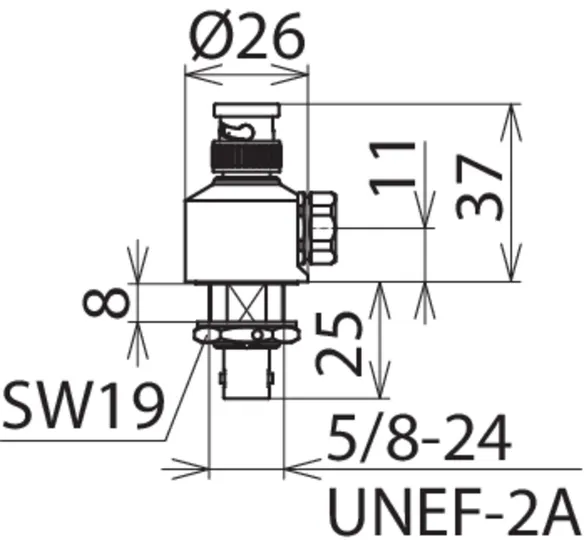

Référence de la pièce 929043 DGA AG BNC

GTIN 4013364091047, Clients tariffs no (UE): 85366910, Poids brut: 89.60 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNgate DGA AG BNC lightning current arrester
DEHNgate lightning current arrester
SPD class: type 1
For coaxial 50-ohm antenna systems,
tested to EN 61643-21, suitable for remote
supply, earthing via bushing, guiding gasket for
exchangeable gas discharge tube
Max. continuous operating voltage (d.c.): 180 V
D1 Lightning impulse current (10/350 µs): 5 kA
C2 Nominal discharge current (8/20 µs): 20 kA
Frequency range: 0-1 GHz

Brand: DEHN
Type: DGA AG BNC
Part No.: 929043
or equivalent.

Certificats

Caractéristiques techniques

SPD class	A
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	3.5 A
Max. transmission capacity	150 W
D1 Lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	20 kA
Frequency range	0-1 GHz
Connection	BNC socket / BNC plug

SPD class	A
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	3.5 A
Max. transmission capacity	150 W
D1 Lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection level for I_nC2 (U_P )	≤ 850 V
Frequency range	0-1 GHz
Insertion loss	< 0.1 dB
Return loss	≥ 19 dB
Characteristic impedance (Z)	50 ohms
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection	IP 20
Connection	BNC socket / BNC plug
Earthing via	bushing (Ø16.1 mm)
Enclosure material	brass, refined surface with trimetal plating
Colour	bare surface
Exchangeable gas discharge tube	yes
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929043 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929043 a été ajouté au panier.

Aller à la boutique en ligne

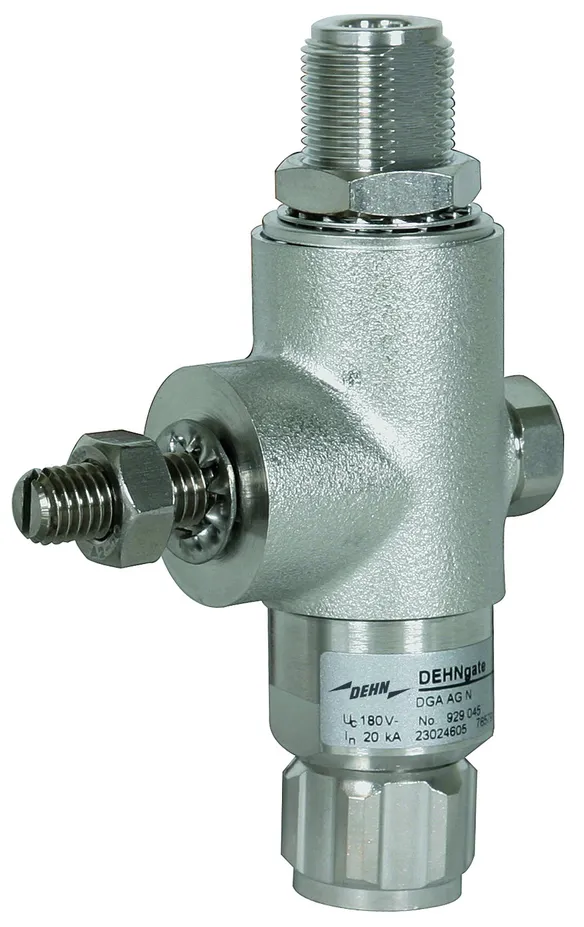

Référence de la pièce 929045 DGA AG N

GTIN 4013364091061, Clients tariffs no (UE): 85366910, Poids brut: 266.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

DEHNgate DGA AG N lightning current arrester
DEHNgate lightning current arrester
SPD class: type 1
For coaxial 50-ohm antenna systems,
tested to EN 61643-21, suitable for remote
supply, earthing via bushing or earthing screw,
guiding gasket for exchangeable gas discharge tube
Max. continuous operating voltage (d.c.): 180 V
D1 Lightning impulse current (10/350 µs): 5 kA
C2 Nominal discharge current (8/20 µs): 20 kA
Frequency range: 0-2.5 GHz

Brand: DEHN
Type: DGA AG N
Part No.: 929045
or equivalent.

Certificats

Caractéristiques techniques

SPD class	A
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	6 A
Max. transmission capacity	150 W
D1 Lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	20 kA
Frequency range	0-2.5 GHz
Connection	N socket / N plug

SPD class	A
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	6 A
Max. transmission capacity	150 W
D1 Lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection level for I_nC2 (U_P )	≤ 850 V
Frequency range	0-2.5 GHz
Insertion loss	< 0.2 dB
Return loss	≥ 20 dB
Characteristic impedance (Z)	50 ohms
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection	IP 65
Connection	N socket / N plug
Earthing via	bushing (Ø16.1 mm) or earthing screw
Enclosure material	brass, refined surface with trimetal plating
Colour	bare surface
Exchangeable gas discharge tube	yes
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929045 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929045 a été ajouté au panier.

Aller à la boutique en ligne

DGA LG

Quarter-wave arrester with spark gap for remote supply protects multi-frequency applications (multi-carrier systems) due to minimum passive intermodulation. Broadband device for all 4+3G and LTE services.

1 Produit

Référence de la pièce 929146 DGA LG 7 16 MFA

GTIN 4013364157156, Clients tariffs no (UE): 85366910, Poids brut: 493.00 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

fichiers CAO

DEHNgate DGA LG 7 16 MFA lightning current arrester
DEHNgate lightning current arrester
SPD class: type 1
for coaxial 50-ohm antenna systems, tested
to EN 61643-21, suitable for remote supply,
maintenance-free quarterwave technology
specifically for multi-carrier applications,
for3+4G and LTE services
Max. continuous operating voltage (d.c.): 65 V
D1 Lightning impulse current (10/350 µs): 5 kA
C2 Nominal discharge current (8/20 µs): 20 kA
Frequency range: 690 MHz-2.7 GHz

Brand: DEHN
Type: DGA LG 7 16 MFA
Part No.: 929146
or equivalent.

Certificats

Caractéristiques techniques

SPD class	A
Max. continuous operating voltage (d.c.) (U_C )	65 V
Nominal current (I_L )	13 A
Max. transmission capacity	1500 W
D1 Lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	20 kA
Frequency range	690 MHz-2.7 GHz
Connection	7/16 socket / 7/16 plug

SPD class	A
Max. continuous operating voltage (d.c.) (U_C )	65 V
Nominal current (I_L )	13 A
Max. transmission capacity	1500 W
D1 Lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Nominal discharge current (8/20 µs) (I_n )	20 kA
Voltage protection level for I_nC2 (U_P )	≤ 800 V
Frequency range	690 MHz-2.7 GHz
Insertion loss	≤ 0.1 dB
Return loss	≥ 28 dB
Characteristic impedance (Z)	50 ohms
Intermodulation	typ. -160 dBc @ 2*43 dBm
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection	IP 67
Connection	7/16 socket / 7/16 plug
Earthing via	bushing (Ø29.5 mm) or M8 earthing screw
Enclosure material	brass, refined surface with trimetal plating
Colour	bare surface
Exchangeable gas discharge tube	yes
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929146 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929146 a été ajouté au panier.

Aller à la boutique en ligne

DGA L4

Combined lightning current and surge arrester with maintenance-free quarter-wave technology for multi-frequency applications (multi-carrier systems). The arrester is also capable of discharging high partial lightning currents. No remote supply as the arrester represents an electrical short-circuit for low-frequency signals. Broadband device for all 4+3G services.

2 Produits

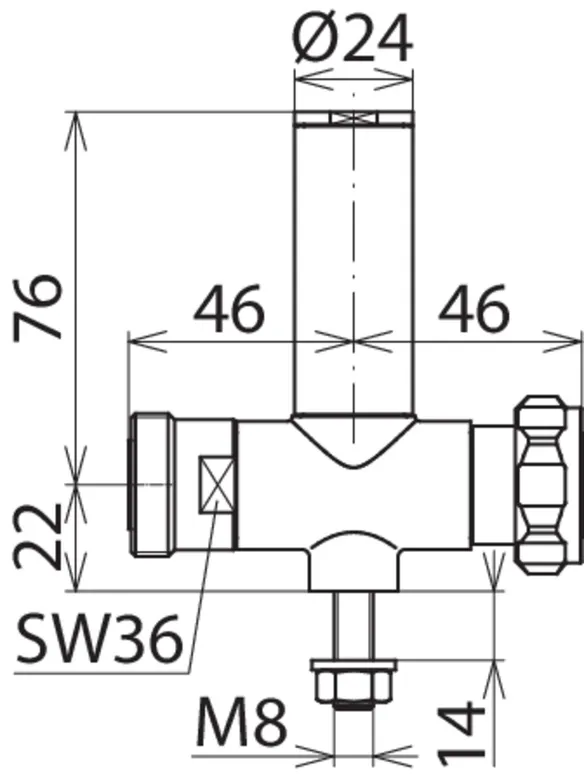

Référence de la pièce 929047 DGA L4 7 16 S

GTIN 4013364091085, Clients tariffs no (UE): 85366910, Poids brut: 467.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

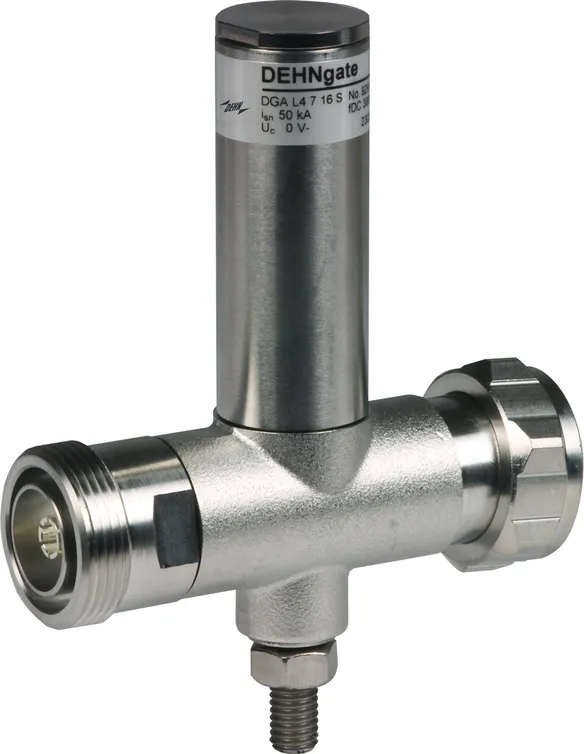

DEHNgate DGA L4 7 16 S combined arrester
Combined lightning current and surge arrester
DEHNgate, SPD class TYPE 1/P1, for coaxial
50 Ohm antenna systems, tested acc.
to EN 61643-21, constructed in maintenance-free
quarterwave technology with very low intermo-
dulation loss, high endurably by CuBe-socket and
nickel free 3-metallization, earthing by earthing
screw

Max. continuous operating voltage (d.c.): 0 V
D1 Lightning impulse current (10/350 µs): 25 kA
C2 Nominal discharge current (8/20 µs): 50 kA
Frequency range: 380-512 MHz

Brand: DEHN
Type: DGA L4 7 16 S
Part No.: 929047
or equivalent.

Certificats

Caractéristiques techniques

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	0 V
Nominal current (I_L )	0 A
Max. transmission capacity	3000 W
D1 Lightning impulse current (10/350 µs) (I_imp )	25 kA
C2 Nominal discharge current (8/20 µs) (I_n )	50 kA
Frequency range	380-512 MHz
Connection	7/16 socket / 7/16 plug

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	0 V
Nominal current (I_L )	0 A
Max. transmission capacity	3000 W
D1 Lightning impulse current (10/350 µs) (I_imp )	25 kA
C2 Nominal discharge current (8/20 µs) (I_n )	50 kA
Voltage protection level for I_nC2 (U_P )	≤ 130 V
Frequency range	380-512 MHz
Insertion loss	< 0.1 dB
Return loss	≥ 20 dB
Characteristic impedance (Z)	50 ohms
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection	IP 65
Connection	7/16 socket / 7/16 plug
Earthing via	earthing screw
Enclosure material	brass, refined surface with trimetal plating
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929047 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929047 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 929148 DGA L4 7 16 MFA

GTIN 4013364157163, Clients tariffs no (UE): 85366910, Poids brut: 476.00 g, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

fichiers CAO

DEHNgate DGA L4 7 16 MFA combined arrester
DEHNgate combined arrester
SPD class: type 1/P1
For coaxial 50-ohm antenna systems, tested
to EN 61643-21, maintenance-free quarterwave
technology specifically for multi-carrier applications,
with minimal passive intermodulation,
particularly broadband for all 3+4G and LTE services,
earthing via bushing or earthing screw
Max. continuous operating voltage (d.c.): 0 V
D1 Lightning impulse current (10/350 µs): 40 kA
C2 Nominal discharge current (8/20 µs): 80 kA
Frequency range: 690 MHz-2.7 GHz

Brand: DEHN
Type: DGA L4 7 16 MFA
Part No.: 929148
or equivalent.

Certificats

Caractéristiques techniques

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	0 V
Nominal current (I_L )	0 A
Max. transmission capacity	1500 W
D1 Lightning impulse current (10/350 µs) (I_imp )	40 kA
C2 Nominal discharge current (8/20 µs) (I_n )	80 kA
Frequency range	690 MHz-2.7 GHz
Connection	7/16 socket / 7/16 plug

SPD class	M
Max. continuous operating voltage (d.c.) (U_C )	0 V
Nominal current (I_L )	0 A
Max. transmission capacity	1500 W
D1 Lightning impulse current (10/350 µs) (I_imp )	40 kA
C2 Nominal discharge current (8/20 µs) (I_n )	80 kA
Voltage protection level for I_nC2 (U_P )	≤ 300 V
Frequency range	690 MHz-2.7 GHz
Insertion loss	≤ 0.1 dB
Return loss	≥ 28 dB
Characteristic impedance (Z)	50 ohms
Intermodulation	typ. -160 dBc @ 2*43 dBm
Operating temperature range (T_U )	-40 °C ... +85 °C
Degree of protection	IP 67
Connection	7/16 socket / 7/16 plug
Earthing via	bushing (Ø 29.5 mm) or M8 earthing screw
Enclosure material	brass, refined surface with trimetal plating
Colour	bare surface
Test standards	IEC 61643-21 / EN 61643-21

Le produit 929148 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 929148 a été ajouté au panier.

Aller à la boutique en ligne

DEHNgate – SPDs for Coaxial Connection

Détails

DGA BNC VC

Référence de la pièce 909710 DGA BNC VCD

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 909710 a été ajouté au bloc-notes

Le produit 909710 a été ajouté au panier.

Référence de la pièce 909711 DGA BNC VCID

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 909711 a été ajouté au bloc-notes

Le produit 909711 a été ajouté au panier.

DGA TV

Référence de la pièce 909703 DGA FF TV

Le produit 909703 a été ajouté au bloc-notes

Le produit 909703 a été ajouté au panier.

Référence de la pièce 909704 DGA GF TV

Le produit 909704 a été ajouté au bloc-notes

Le produit 909704 a été ajouté au panier.

Référence de la pièce 909705 DGA GFF TV

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 909705 a été ajouté au bloc-notes

Le produit 909705 a été ajouté au panier.

DGA FF5 TV

Référence de la pièce 909706 DGA FF5 TV

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 909706 a été ajouté au bloc-notes

Le produit 909706 a été ajouté au panier.

DGA G

Référence de la pièce 929039 DGA G SMA

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 929039 a été ajouté au bloc-notes

Le produit 929039 a été ajouté au panier.

Référence de la pièce 929042 DGA G BNC

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 929042 a été ajouté au bloc-notes

Le produit 929042 a été ajouté au panier.

Référence de la pièce 929044 DGA G N

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 929044 a été ajouté au bloc-notes

Le produit 929044 a été ajouté au panier.
