DEHNcube PV

  • Prewired multipole surge arrester with IP 65 degree of protection for use in photovoltaic systems
  • No space required in a distribution board enclosure
  • Pre-assembled connecting cable available for simple connection of the surge arrester directly upstream of the inverter to be protected
  • Combined disconnection and short-circuiting device with safe electrical isolation in every protective circuit (patented SCI principle)
  • Spring-loaded terminals for easy and quick connection without tools
  • Tested to EN 61643-31
  • For use in all PV systems according to IEC 60364-7-712

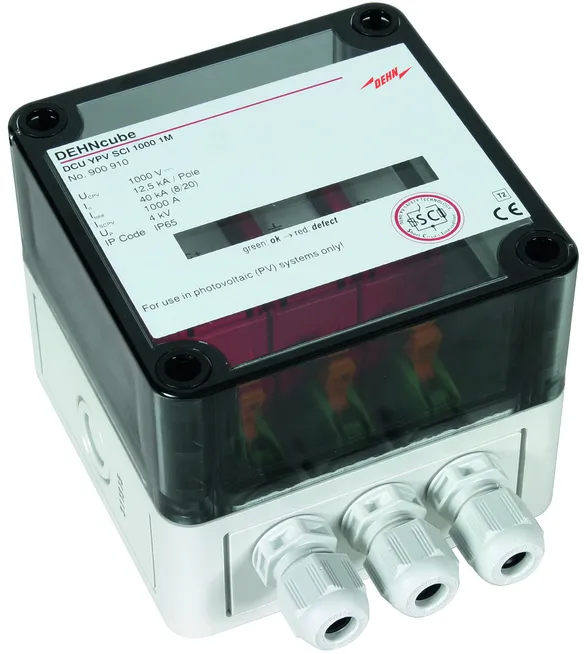

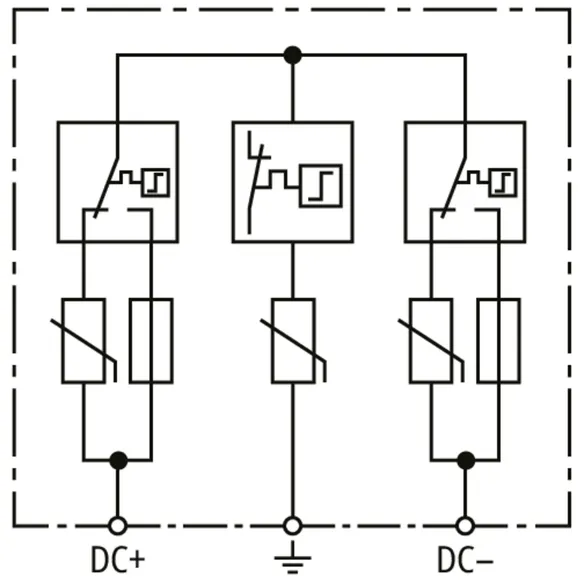

DEHNcube YPV SCI 1000 1M

Two-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting one MPP input.

1 Produit

Référence de la pièce 900910 DCU YPV SCI 1000 1M

GTIN 4013364155046, Clients tariffs no (UE): 85363030, Poids brut: 426.00 g, Prix unitaire: 1.00 pc(s)


Images

Plus d'informations

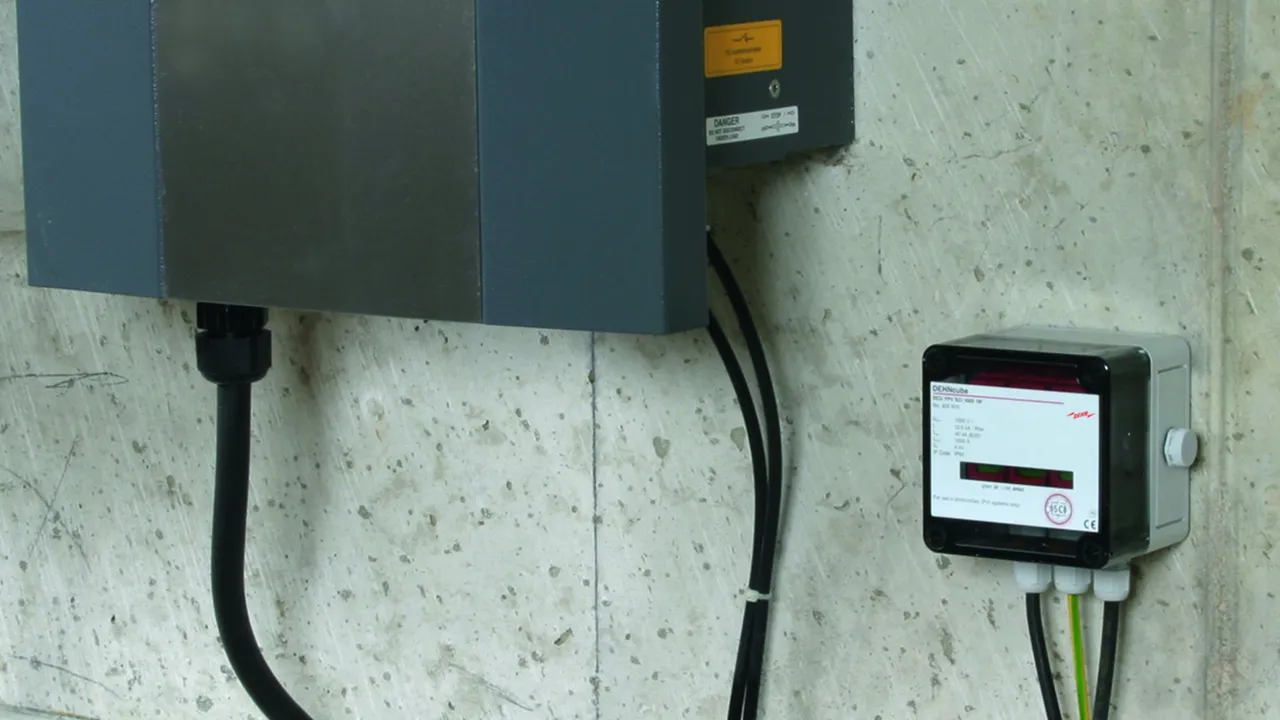

DEHNcube YPV SCI 1000 1M surge arrester
Multipole arrester for use
in photovoltaic systems up to 1000 V d.c.
For protecting 1 MPP input with IP65 degree of protection
Fault indication
Type 2 SPD according to EN 61643-31
with three-step d.c. switching device
For use in accordance with IEC 60364-7-712
Max. PV voltage: <= 1000 V d.c.
Nominal discharge current (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 1000 A

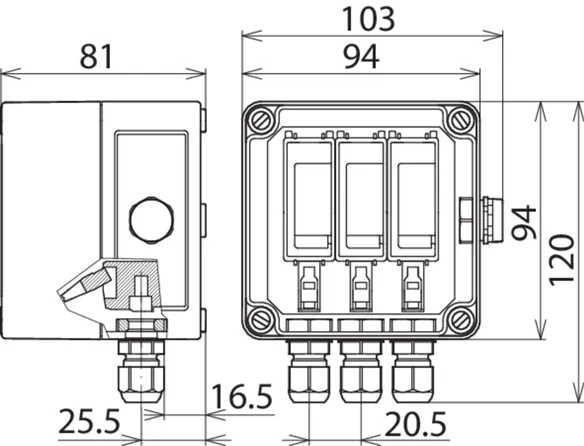

Dimensions 94 x 94 x 81 mm
Cable entry: 3x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 1M
Part No.: 900910
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-31 / IEC 61643-31 type 2 / class II
Max. PV voltage (UCPV ) 1000 V
Short-circuit current rating (ISCPV ) 1 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (Imax ) 25 kA
Voltage protection level (UP ) ≤ 4 kV
Degree of protection IP 65

Le produit 900910 a été ajouté au bloc-notes

Le produit 900910 a été ajouté au panier.


DEHNcube YPV SCI 1000 2M

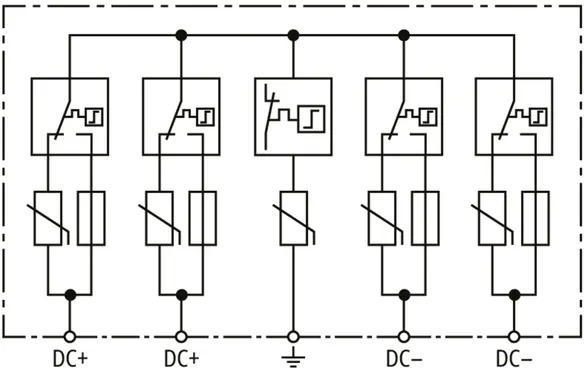

Four-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting two MPP inputs.

1 Produit

Référence de la pièce 900920 DCU YPV SCI 1000 2M

GTIN 4013364155053, Clients tariffs no (UE): 85363030, Poids brut: 731.00 g, Prix unitaire: 1.00 pc(s)


Images

Plus d'informations

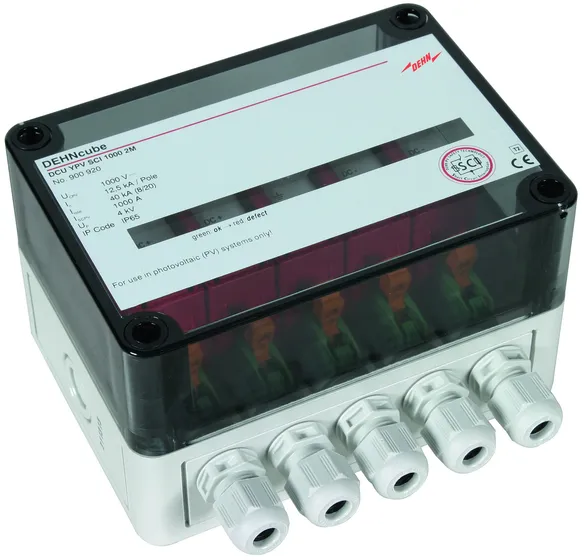

DEHNcube YPV SCI 1000 2M surge arrester
Multipole arrester for use in photovoltaic systems up to 1,000 V DC
for the protection of 2 MPP inputs with IP65 degree of protection
Fault indication
Type 2 arrester as per EN 61643-31 with three-step DC switching device
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,000 V DC
Nominal discharge current: (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 1000 A

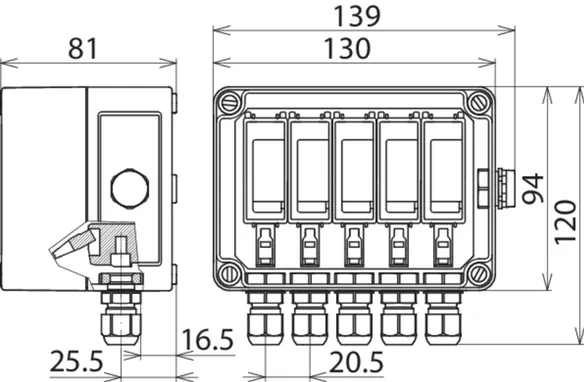

Dimensions: 130 x 94 x 81 mm
Cable entry: 5x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 2M
Part No.: 900920
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-31 / IEC 61643-31 type 2 / class II
Max. PV voltage (UCPV ) 1000 V
Short-circuit current rating (ISCPV ) 1 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (Imax ) 25 kA
Voltage protection level (UP ) ≤ 4 kV
Degree of protection IP 65

Le produit 900920 a été ajouté au bloc-notes

Le produit 900920 a été ajouté au panier.


DEHNcube 2 YPV 1100 1M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting one MPP input and two strings.
With surge protection and push-in terminals for the input and output.

1 Produit

Référence de la pièce 900913 DCU 2 YPV 1100 1M 2S

GTIN 4013364492455, Clients tariffs no (UE): 85372091, Poids brut: 1.59 kg, Prix unitaire: 1.00 pc(s)


Images

Plus d'informations

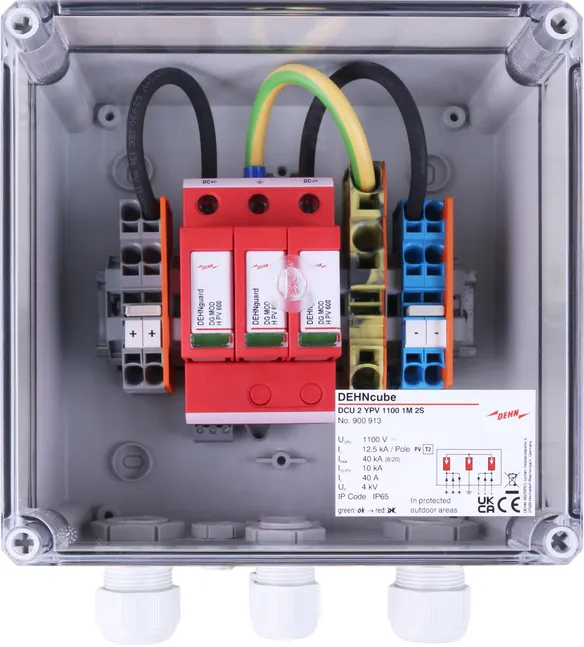

Generator junction box DCU 2 YPV 1100 1M 2S
Generator junction box up to 1,100 V DC
for protecting 1 MPP input and
2 strings with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2 with
3-step DC switching device
For use according to IEC 60364-7-712
Max. PV voltage: <=1100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

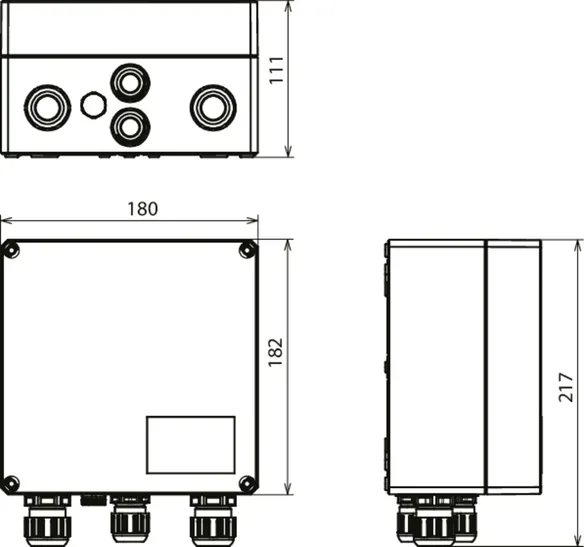

Dimensions: 180 x 182 x 111 mm
Cable entry: 2x 3-fold cable gland (2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20 (16mm²)

Brand: DEHN
Type: DCU 2 YPV 1100 1M 2S
Part No.: 900913
or equivalent.



Caractéristiques techniques

SPD according to EN 61643-31 / IEC 61643-31 type 2 / class II
Max. PV voltage (UCPV ) 1100 V
Short-circuit current rating (ISCPV ) 10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (Imax ) 40 kA
Voltage protection level (UP ) ≤ 4 kV
Degree of protection IP 65

Le produit 900913 a été ajouté au bloc-notes

Le produit 900913 a été ajouté au panier.

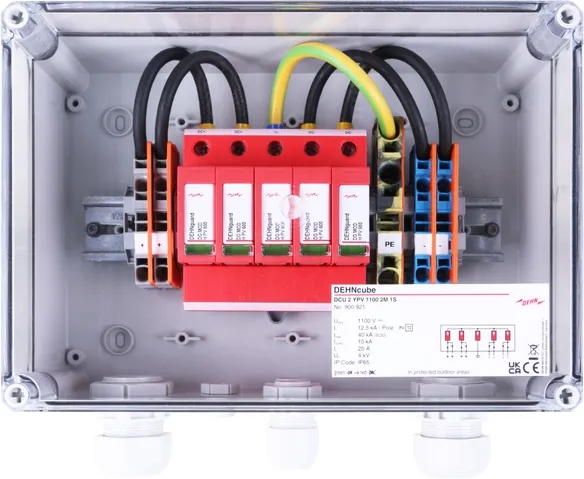

DEHNcube 2 YPV 1100 2M 1S

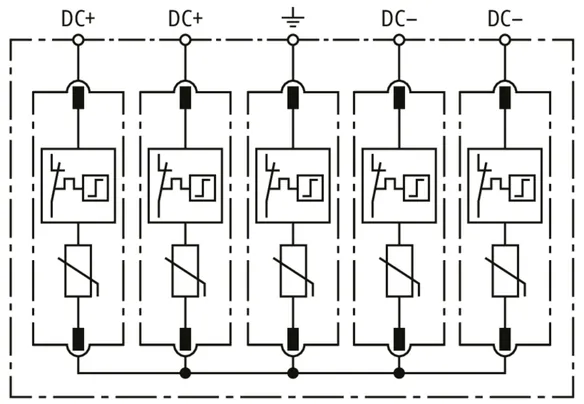

Generator junction box for PV systems of up to 1100 V DC for protecting two MPP inputs and one string.
With surge protection and push-in terminals for the input and output.

1 Produit

Référence de la pièce 900921 DCU 2 YPV 1100 2M 1S

GTIN 4013364492462, Clients tariffs no (UE): 85372091, Poids brut: 2.14 kg, Prix unitaire: 1.00 pc(s)


Images

Plus d'informations

Generator junction box DCU 2 YPV 1100 2M 1S
Generator junction box up to 1,100 V DC
for protecting 2 MPP inputs
and 1 string each with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2 with
3-step DC switching device
For use according to IEC 60364-7-712
Max. PV voltage: <=1100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

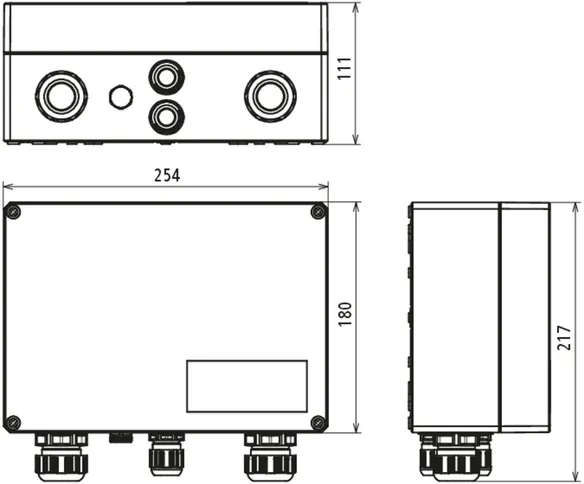

Dimensions: 180 x 182 x 111 mm
Cable entry: 2x 4-fold cable gland (2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20 (16mm²)

Brand: DEHN
Type: DCU 2 YPV 1100 2M 1S
Part No.: 900921
or equivalent.



Caractéristiques techniques

SPD according to EN 61643-31 / IEC 61643-31 type 2 / class II
Max. PV voltage (UCPV ) 1100 V
Short-circuit current rating (ISCPV ) 10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (Imax ) 40 kA
Voltage protection level (UP ) ≤ 4 kV
Degree of protection IP 65

Le produit 900921 a été ajouté au bloc-notes

Le produit 900921 a été ajouté au panier.

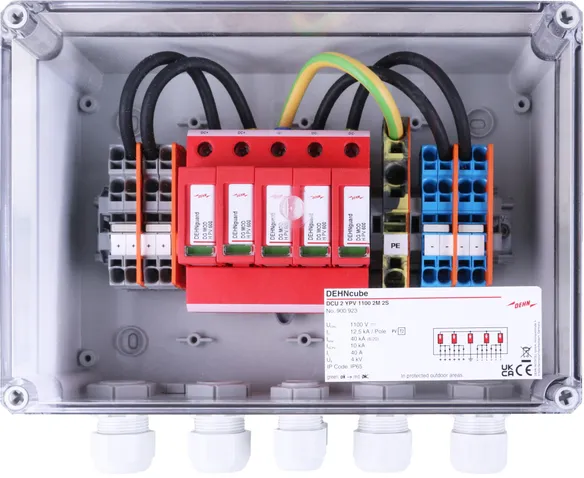

DEHNcube 2 YPV 1100 2M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting two MPP inputs and two strings.
With surge protection and push-in terminals for the input and output.

1 Produit

Référence de la pièce 900923 DCU 2 YPV 1100 2M 2S

GTIN 4013364492400, Clients tariffs no (UE): 85372091, Poids brut: 2.21 kg, Prix unitaire: 1.00 pc(s)


Images

Plus d'informations

Generator junction box DCU 2 YPV 1100 2M 2S
Generator junction box up to 1,100 V DC
for protecting 2 MPP inputs
and 2 strings each with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2 with
3-step DC switching device
For use according to IEC 60364-7-712
Max. PV voltage: <=1100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 180 x 182 x 111 mm
Cable entry: 4x 3-fold cable gland (2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20 (16mm²)

Brand: DEHN
Type: DCU 2 YPV 1100 2M 2S
Part No.: 900923
or equivalent.



Caractéristiques techniques

SPD according to EN 61643-31 / IEC 61643-31 type 2 / class II
Max. PV voltage (UCPV ) 1100 V
Short-circuit current rating (ISCPV ) 10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (Imax ) 40 kA
Voltage protection level (UP ) ≤ 4 kV
Degree of protection IP 65

Le produit 900923 a été ajouté au bloc-notes

Le produit 900923 a été ajouté au panier.
