DEHNguard modular E (Y)PV SCI 1500

  • Prewired modular complete unit for use in photovoltaic systems up to 1500 V consisting of a base part and plug-in protection modules
  • Combined disconnection and short-circuiting device with safe electrical isolation in the protection module (patented SCI principle)
  • New design for safe use in PV systems up to 1500 V
  • Tested to EN 50539-11
  • Suitable for use in all PV systems in accordance with IEC 60364-7-712

Détails

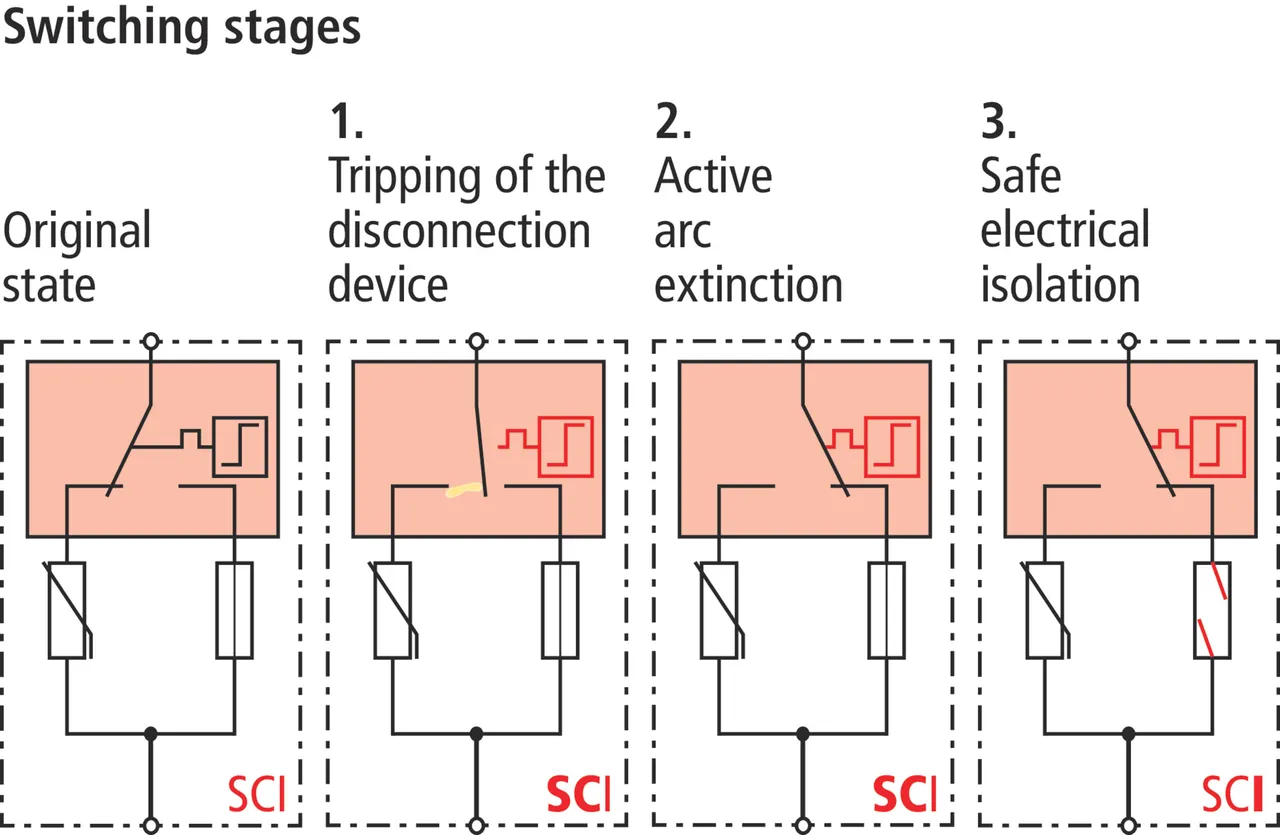

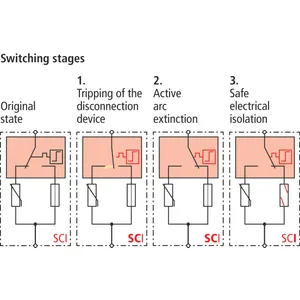

Three-step d.c. switching device (patented SCI principle)
lorem ipsum

DEHNguard ME YPV SCI 1500 (FM)

Modular multipole surge arrester with three-step d.c. switching device for PV systems.

2 Produits

Référence de la pièce 952520 DG ME YPV SCI 1500

GTIN 4013364149069, Clients tariffs no (UE): 85354000, Poids brut: 535.70 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

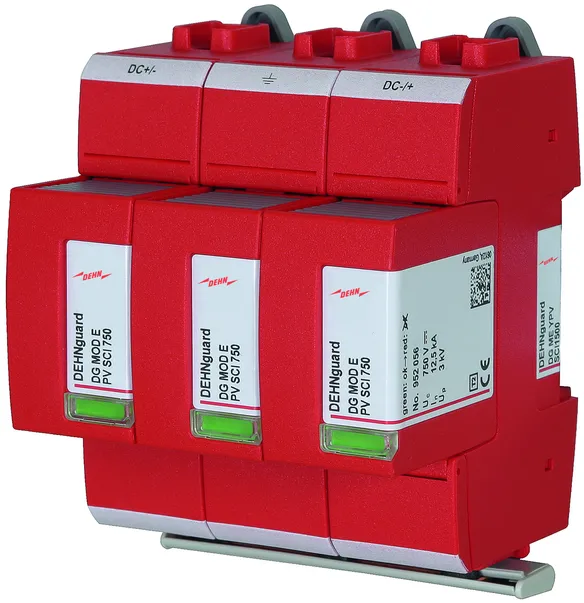

DEHNguard ME YPV SCI 1500 surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems up to 1500 V d.c.

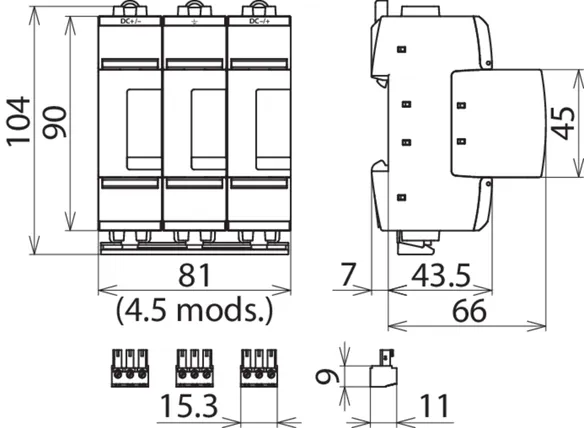

with three-step d.c. switching device, width: 4.5 modules
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1500 V d.c.
Total discharge current: 25 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG ME YPV SCI 1500
Part No.: 952520
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. PV voltage (UCPV ) 1500 V
Short-circuit current rating (ISCPV ) 10 kA
Total discharge current (8/20 µs) (Itotal ) 25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Voltage protection level (UP ) ≤ 6 kV
Approvals KEMA, UL

Le produit 952520 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 952520 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 952525 DG ME YPV SCI1500 FM

GTIN 4013364149076, Clients tariffs no (UE): 85354000, Poids brut: 556.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DEHNguard ME YPV SCI 1500 FM surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems up to 1500 V d.c.
with three-step d.c. switching device, width: 4.5 modules

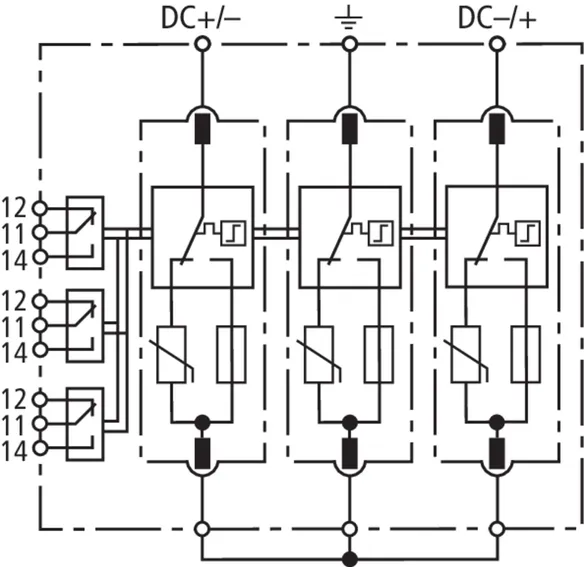

with remote signalling contact
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1500 V d.c.
Total discharge current: 25 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG ME YPV SCI1500 FM
Part No.: 952525
or equivalent.

Certificats



Caractéristiques techniques

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. PV voltage (UCPV ) 1500 V
Short-circuit current rating (ISCPV ) 10 kA
Total discharge current (8/20 µs) (Itotal ) 25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) 12.5 kA
Voltage protection level (UP ) ≤ 6 kV
Approvals KEMA, UL
Type of remote signalling contact changeover contact
