Référence de la pièce 900780 SPD+POP 2 255 C25

GTIN 4013364156203, Clients tariffs no (UE): 85363030, Poids brut: 404.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Surge arrester SPD+POP 2 255 C25
Compact surge arrester for transients and
mains-frequency surges with integrated
miniature circuit breaker
Type 2 SPD according to EN 61643-11,
POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices
do not have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C25
Part No.: 900780
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / flexible
Cross-sectional area (L, N) (max.)	16 mm²flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm²solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm²solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
SPD according to IEC 61643-11	class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900780 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900780 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900781 SPD+POP 2 255 C32

GTIN 4013364156210, Clients tariffs no (UE): 85363030, Poids brut: 425.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Surge arrester SPD+POP 2 255 C32
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not
have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C32
Part No.: 900781
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900781 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900781 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900782 SPD+POP 2 255 C40

GTIN 4013364156227, Clients tariffs no (UE): 85363030, Poids brut: 424.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Surge arrester SPD+POP 2 255 C40
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not have to
be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C40
Part No.: 900782
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900782 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900782 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900785 SPD+POP 4 255 C25

GTIN 4013364156234, Clients tariffs no (UE): 85363030, Poids brut: 730.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

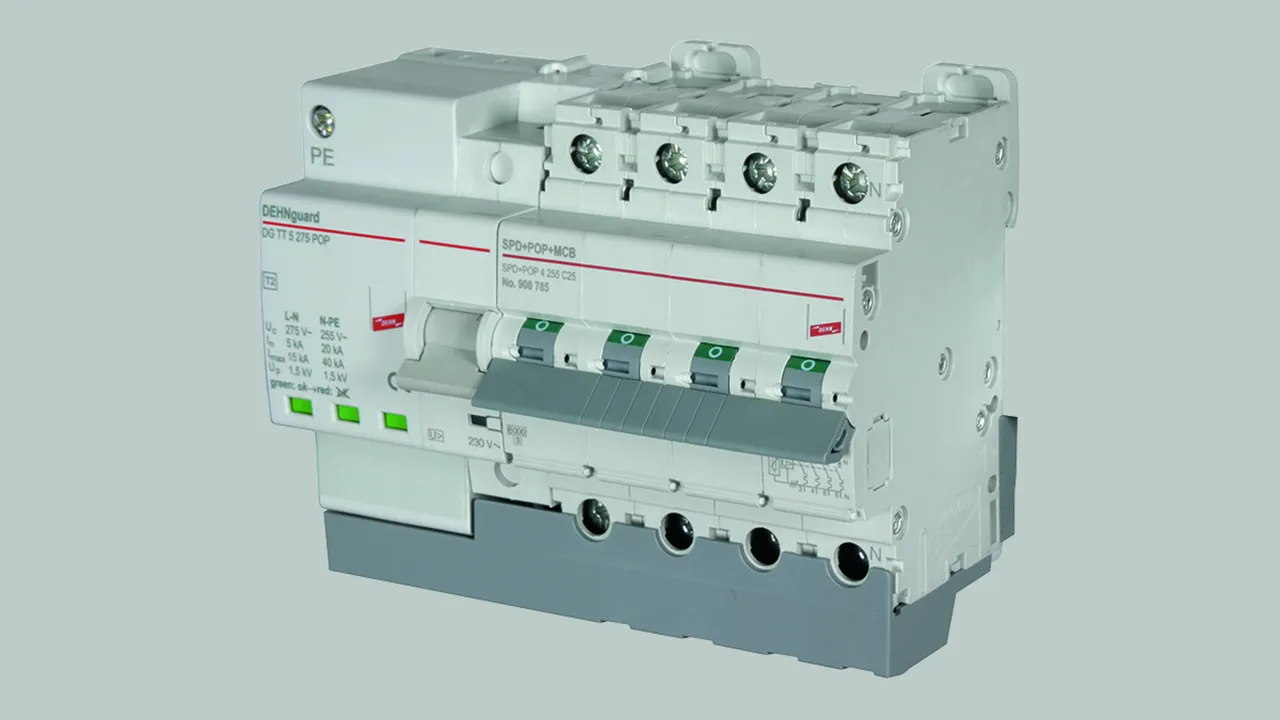

Surge arrester SPD+POP 4 255 C25
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C25
Part No.: 900785
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm²flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900785 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900785 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900786 SPD+POP 4 255 C32

GTIN 4013364156241, Clients tariffs no (UE): 85363030, Poids brut: 763.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Surge arrester SPD+POP 4 255 C32
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C32
Part No.: 900786
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900786 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900786 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900787 SPD+POP 4 255 C40

GTIN 4013364156258, Clients tariffs no (UE): 85363030, Poids brut: 769.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Surge arrester SPD+POP 4 255 C40
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C40
Part No.: 900787
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm²stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900787 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900787 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900788 SPD+POP 4 255 C63

GTIN 4013364156265, Clients tariffs no (UE): 85363030, Poids brut: 773.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Surge arrester SPD+POP 4 255 C63
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C63
Part No.: 900788
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900788 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900788 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900760 POP 2 255 C25

GTIN 4013364156135, Clients tariffs no (UE): 85363030, Poids brut: 297.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Protective device POP 2 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C25
Part No.: 900760
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900760 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900760 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900761 POP 2 255 C32

GTIN 4013364156142, Clients tariffs no (UE): 85363030, Poids brut: 317.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Protective device POP 2 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C32
Part No.: 900761
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900761 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900761 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900762 POP 2 255 C40

GTIN 4013364156159, Clients tariffs no (UE): 85363030, Poids brut: 317.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Protective device POP 2 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C40
Part No.: 900762
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900762 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900762 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900765 POP 4 255 C25

GTIN 4013364156166, Clients tariffs no (UE): 85363030, Poids brut: 547.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Protective device POP 4 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C25
Part No.: 900765
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900765 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900765 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900766 POP 4 255 C32

GTIN 4013364156173, Clients tariffs no (UE): 85363030, Poids brut: 580.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Protective device POP 4 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C32
Part No.: 900766
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900766 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900766 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900767 POP 4 255 C40

GTIN 4013364156180, Clients tariffs no (UE): 85363030, Poids brut: 586.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Protective device POP 4 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C40
Part No.: 900767
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900767 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900767 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900768 POP 4 255 C63

GTIN 4013364156197, Clients tariffs no (UE): 85363030, Poids brut: 591.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

fichiers CAO

Protective device POP 4 255 C63
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C63
Part No.: 900768
or equivalent.

Certificats

Caractéristiques techniques

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_n )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Le produit 900768 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900768 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 900720 POP SA 3P 230

GTIN 4013364477377, Clients tariffs no (UE): 85363030, Poids brut: 141.37 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Protective device POP SA 3P 230
Protective device for
power-frequency overvoltages
for the triggering of external
circuit breakers
POP as per IEC 63052 cat. 4.1.3S2
Number pf poles 3P + N
Adjustable output switching signal
from 12V – 230V
DIN rail mounted device according to
DIN 43880, 2 modules

Brand: DEHN
Type: POP SA 3P 230
Part No.: 900720
or equivalent.

Certificats

Caractéristiques techniques

Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-5°C to +45°C
Cross-sectional area (L1, L2, L3, N) (min.)	0.5 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²flexible / 4 mm²solid
Degree of protection protection	IP 20
Capacity	2 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
Status indication	RGB LED
POP
Tested to	IEC 63052 cat. 4.1.3S2
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	440 V
Tripping time at 400 V a.c.	140 ms

Le produit 900720 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 900720 a été ajouté au panier.

Aller à la boutique en ligne

SPD+POP+MCB / POP+MCB / POP

Two-pole SPD+POP+MCB

Référence de la pièce 900780 SPD+POP 2 255 C25

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900780 a été ajouté au bloc-notes

Le produit 900780 a été ajouté au panier.

Référence de la pièce 900781 SPD+POP 2 255 C32

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900781 a été ajouté au bloc-notes

Le produit 900781 a été ajouté au panier.

Référence de la pièce 900782 SPD+POP 2 255 C40

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900782 a été ajouté au bloc-notes

Le produit 900782 a été ajouté au panier.

Four-pole SPD+POP+MCB

Référence de la pièce 900785 SPD+POP 4 255 C25

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900785 a été ajouté au bloc-notes

Le produit 900785 a été ajouté au panier.

Référence de la pièce 900786 SPD+POP 4 255 C32

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900786 a été ajouté au bloc-notes

Le produit 900786 a été ajouté au panier.

Référence de la pièce 900787 SPD+POP 4 255 C40

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900787 a été ajouté au bloc-notes

Le produit 900787 a été ajouté au panier.

Référence de la pièce 900788 SPD+POP 4 255 C63

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900788 a été ajouté au bloc-notes

Le produit 900788 a été ajouté au panier.

Two-pole POP+MCB

Référence de la pièce 900760 POP 2 255 C25

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900760 a été ajouté au bloc-notes

Le produit 900760 a été ajouté au panier.

Référence de la pièce 900761 POP 2 255 C32

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 900761 a été ajouté au bloc-notes

Le produit 900761 a été ajouté au panier.

Référence de la pièce 900762 POP 2 255 C40

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger
