EP4 Continuity Tester

Continuity tester for measuring the resistance of e.g. air-termination and down conductors and subsequently installed reinforcing bars of buildings. The tester is suited for measuring the resistance of earth-termination systems according to DIN 18014 with a test current of 200 mA.

1 Produit

Référence de la pièce 578370 DGP EP4

GTIN 4013364110953, Clients tariffs no (UE): 90303320, Poids brut: 350.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

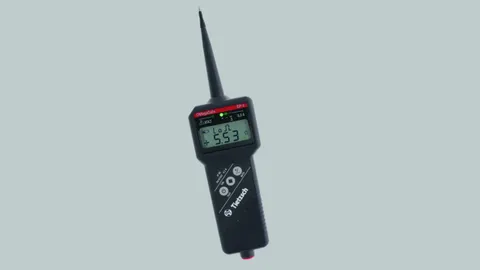

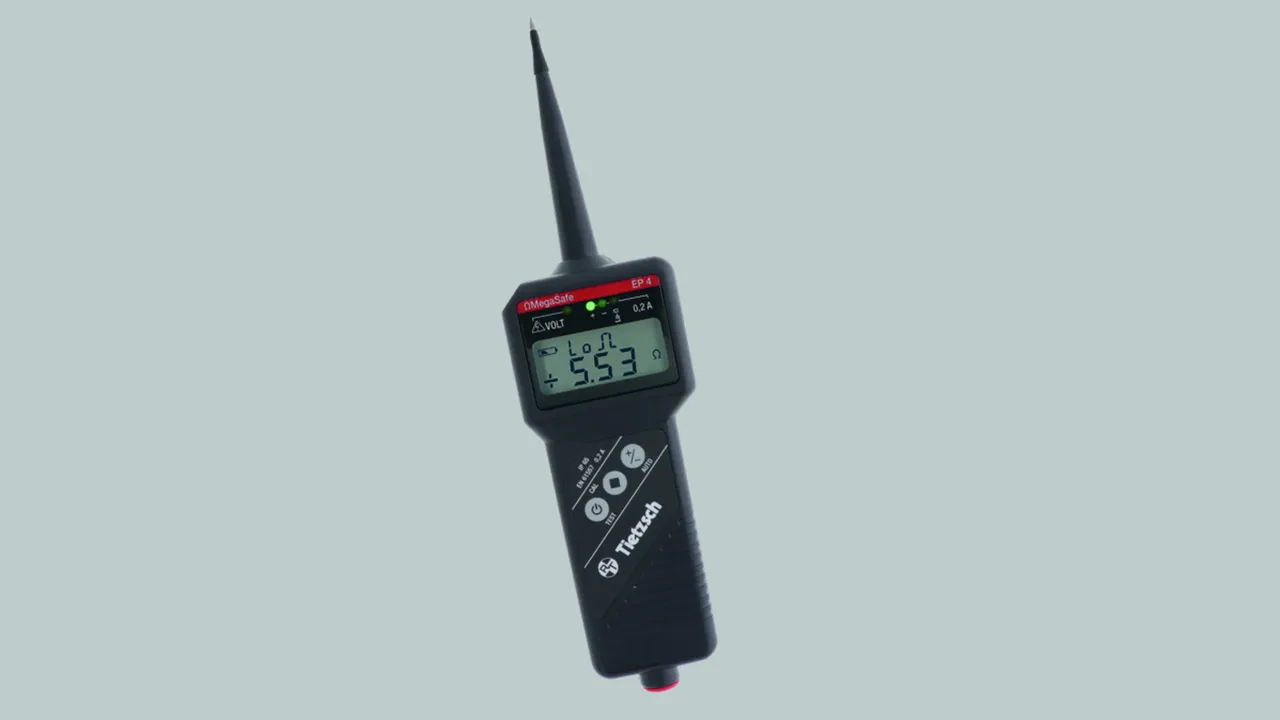

Continuity tester EP4
Continuity tester EP4 for measuring resistances
on,
for example, air-termination systems, down conductors, earthing systems and
subsequently used reinforcing bars
of structures with a test current
of 200 mA.
Digital LCD display
Different measuring ranges from 0.01 ohms to 2,000 kohms
Measuring current 200 mA ranging up to 10 ohms
Automatic measured value storage
Quick compensation of the measuring line

Brand: DEHN
Type: DGP EP4
Part No.: 578370
or equivalent.

Certificats

Caractéristiques techniques

Display	digital LCD display
Resistance measuring range	0.01 Ω to 2,000 kΩ
Measuring current	200 mA in the range up to 10 Ω acc. to EN 61557-4
Dimensions (l x w x d)	230 x 60 x 40 mm
