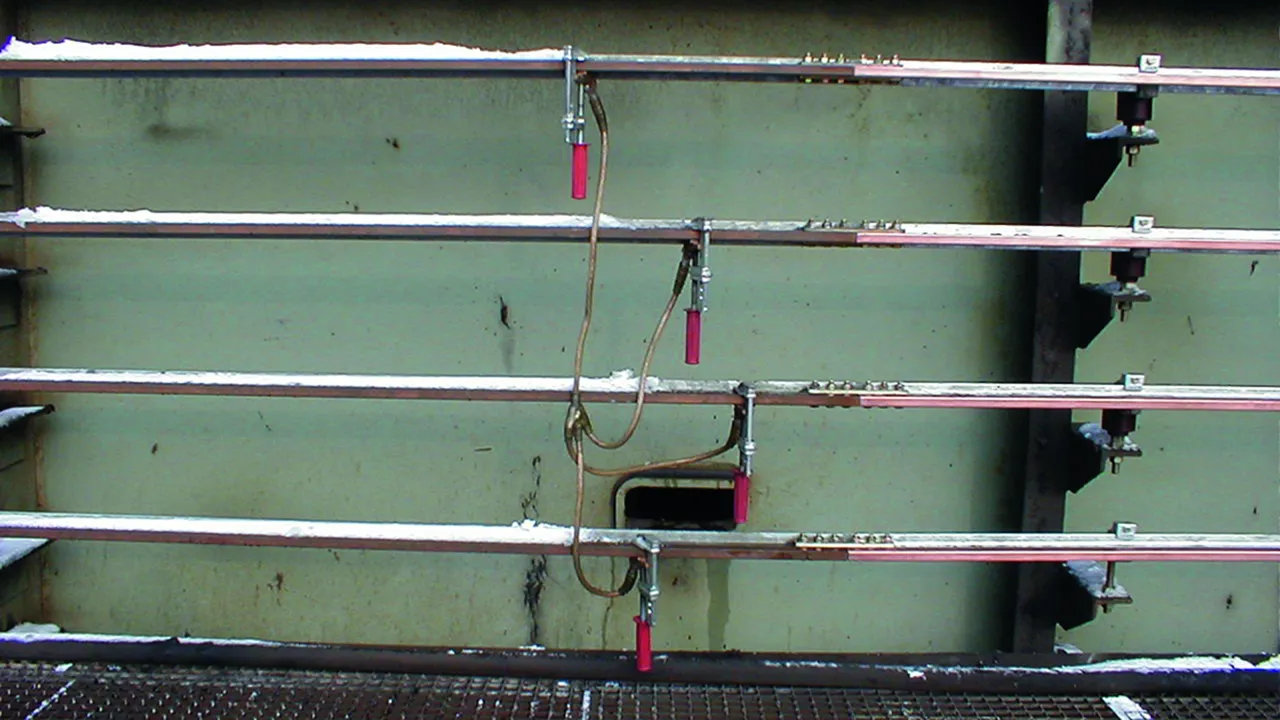

Earthing and Short-Circuiting Devices for Crane Conductor Bars

For insulated or bare conductor bars of cranes and lifting equipment
Allows to lock the clamping range of the clamps in several positions
Waterproof, plastic-sheathed cable entries and node unit, with additional ant-kink protection
Other cable lengths can be selected online via the earthing and short-circuiting configurator

Détails

With Screw Clamps for insulated Conductor Bars

3 Produits

Référence de la pièce VH8QTCZ EKV3 25IS ZK VH8QTCZ

GTIN 4013364163775, Clients tariffs no (UE): 85359000, Poids brut: 5.59 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Clamping range	55 mm
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Attention: Please state the relevant Variant No. when ordering.

Clamping range	55 mm
Version	Three-pole
Cable cross-section (phase side)	25 mm²
Cable cross-section (earth side)	25 mm²
Length of phase cable A	500 mm
Length of phase cable B	500 mm
Length of phase cable C	500 mm
Length of earthing cable	600 mm
Fully insulated	No
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Material (clamp body)	MCI/gal Zn
Material (pressure plates)	Cu alloy
Material (short-circuiting cables)	Cu , highly flexible
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Attention: Please state the relevant Variant No. when ordering.

Le produit VH8QTCZ a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VH8QTCZ a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VKB2Q6J EKV3 35IS ZK VKB2Q6J

GTIN 4013364163829, Clients tariffs no (UE): 85359000, Poids brut: 5.75 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Clamping range	55 mm
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Attention: Please state the relevant Variant No. when ordering.

Clamping range	55 mm
Version	Three-pole
Cable cross-section (phase side)	35 mm²
Cable cross-section (earth side)	35 mm²
Length of phase cable A	500 mm
Length of phase cable B	500 mm
Length of phase cable C	500 mm
Length of earthing cable	600 mm
Fully insulated	No
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Material (clamp body)	MCI/gal Zn
Material (pressure plates)	Cu alloy
Material (short-circuiting cables)	Cu , highly flexible
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Attention: Please state the relevant Variant No. when ordering.

Le produit VKB2Q6J a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VKB2Q6J a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VP6YV4T EKV3 50IS ZK VP6YV4T

GTIN 4013364162686, Clients tariffs no (UE): 85359000, Poids brut: 6.30 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Clamping range	55 mm
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Attention: Please state the relevant Variant No. when ordering.

Clamping range	55 mm
Version	Three-pole
Cable cross-section (phase side)	50 mm²
Cable cross-section (earth side)	50 mm²
Length of phase cable A	500 mm
Length of phase cable B	500 mm
Length of phase cable C	500 mm
Length of earthing cable	600 mm
Fully insulated	No
Max. short-circuit current I_k0.5 s	14.0 kA
Max. short-circuit current I_k1 s	9.9 kA
Material (clamp body)	MCI/gal Zn
Material (pressure plates)	Cu alloy
Material (short-circuiting cables)	Cu , highly flexible
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Attention: Please state the relevant Variant No. when ordering.

Le produit VP6YV4T a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VP6YV4T a été ajouté au panier.

Aller à la boutique en ligne

With Screw Clamps for bare Conductor Bars

2 Produits

Référence de la pièce VQKTK4T EKV3 25BS ZK VQKTK4T

GTIN 4013364163768, Clients tariffs no (UE): 85359000, Poids brut: 5.40 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Clamping range	85 mm
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Attention: Please state the relevant Variant No. when ordering.

Clamping range	85 mm
Version	Three-pole
Cable cross-section (phase side)	25 mm²
Cable cross-section (earth side)	25 mm²
Length of phase cable A	500 mm
Length of phase cable B	500 mm
Length of phase cable C	500 mm
Length of earthing cable	600 mm
Fully insulated	No
Max. short-circuit current I_k0.5 s	7.0 kA
Max. short-circuit current I_k1 s	4.9 kA
Material (clamp body)	MCI/gal Zn
Material (pressure plates)	Cu alloy
Material (short-circuiting cables)	Cu , highly flexible
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Attention: Please state the relevant Variant No. when ordering.

Le produit VQKTK4T a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VQKTK4T a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VN63A91 EKV3 35BS ZK VN63A91

GTIN 4013364163812, Clients tariffs no (UE): 85359000, Poids brut: 5.56 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Clamping range	85 mm
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Attention: Please state the relevant Variant No. when ordering.

Clamping range	85 mm
Version	Three-pole
Cable cross-section (phase side)	35 mm²
Cable cross-section (earth side)	35 mm²
Length of phase cable A	500 mm
Length of phase cable B	500 mm
Length of phase cable C	500 mm
Length of earthing cable	600 mm
Fully insulated	No
Max. short-circuit current I_k0.5 s	10.0 kA
Max. short-circuit current I_k1 s	6.9 kA
Material (clamp body)	MCI/gal Zn
Material (pressure plates)	Cu alloy
Material (short-circuiting cables)	Cu , highly flexible
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Attention: Please state the relevant Variant No. when ordering.
