Short-Circuiting Bar

Simply compile the right short circuit bar online
Individual configuration
Permanent plausibility check in the background
With longitudinal slot for reliable contact
High short-circuit current strength up to max. 130 kA / 0.5 s for low-voltage systems (LV) and 80 kA / 0.5 s for medium-voltage systems (MV)
For use with earthing sticks for hexagon or T pin shafts
Short-circuiting bar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator

Détails

**SQ:** T pin shaft (bayonet locking mechanism).

lorem ipsum — **SQ:** T pin shaft (bayonet locking mechanism).

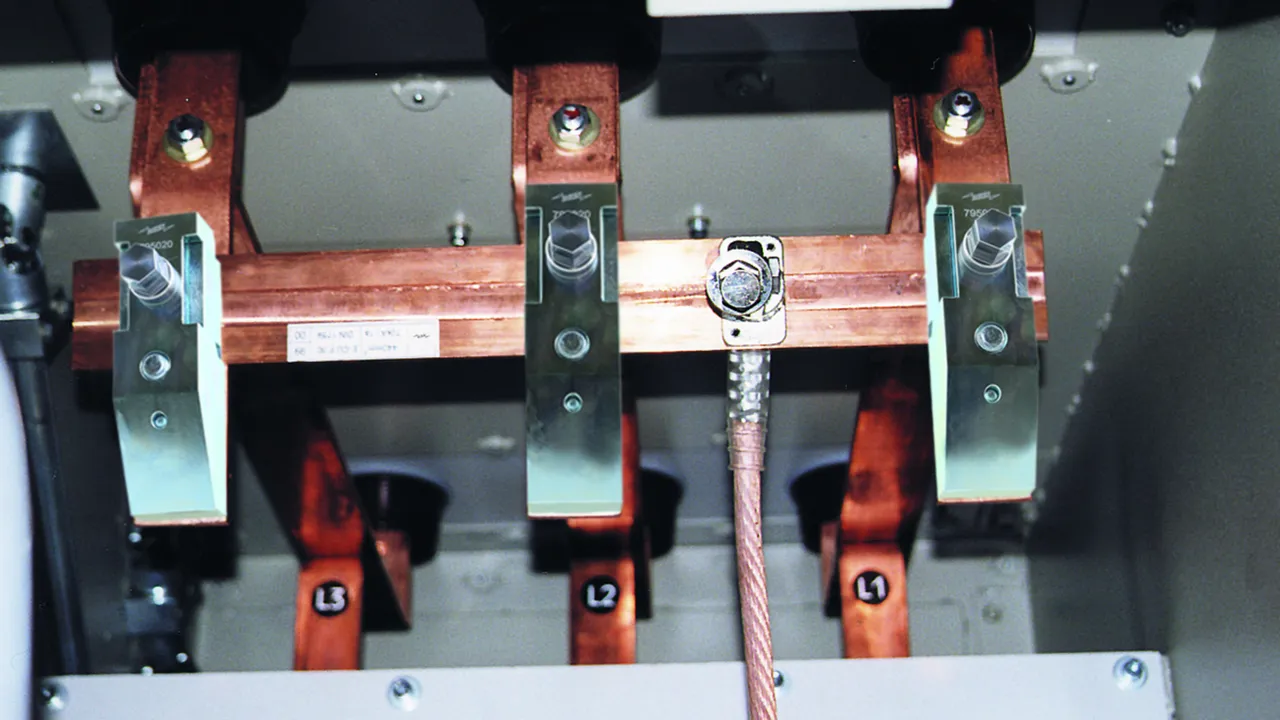

Fixed clamping point mounted on busbar and inserted short-circuiting bar

Short-Circuiting Bar made of Copper

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 Produits

Référence de la pièce VL2FG28 KS SQ C NS VL2FG28

GTIN 4013364450820, Clients tariffs no (UE): 85359000, Poids brut: 6.18 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
Note: When ordering please specify the relevant Variant No.

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Le produit VL2FG28 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VL2FG28 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VHNEFQE KS SK C NS VHNEFQE

GTIN 4013364450837, Clients tariffs no (UE): 85359000, Poids brut: 6.14 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
Note: When ordering please specify the relevant Variant No.

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	130 kA
Max. short-circuit current I_k1 s	90 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Le produit VHNEFQE a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VHNEFQE a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VV7M6CQ KSX SQ C MS VV7M6CQ

GTIN 4013364461963, Clients tariffs no (UE): 85359000, Poids brut: 10.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	525 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
Note: When ordering please specify the relevant Variant No.

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	525 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Le produit VV7M6CQ a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VV7M6CQ a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce V5DHK24 KSX SK C MS V5DHK24

GTIN 4013364461970, Clients tariffs no (UE): 85359000, Poids brut: 10.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	525 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
Note: When ordering please specify the relevant Variant No.

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	525 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	80 kA
Max. short-circuit current I_k1 s	80 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Copper
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Note: When ordering please specify the relevant Variant No.

Le produit V5DHK24 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit V5DHK24 a été ajouté au panier.

Aller à la boutique en ligne

Short-Circuiting Bar made of Aluminium

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 Produits

Référence de la pièce VNRLBXU KS SQ A NS VNRLBXU

GTIN 4013364450868, Clients tariffs no (UE): 85359000, Poids brut: 10.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	LV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Le produit VNRLBXU a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VNRLBXU a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VP33XYL KS SK A NS VP33XYL

GTIN 4013364450875, Clients tariffs no (UE): 85359000, Poids brut: 10.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	LV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	175 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	500 mm
Bar spacing (S_A )	150 mm
Max. short-circuit current I_k0.5 s	90 kA
Max. short-circuit current I_k1 s	64 kA
For	Low-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Le produit VP33XYL a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VP33XYL a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VSJ3Y6N KSX SQ A MS VSJ3Y6N

GTIN 4013364461994, Clients tariffs no (UE): 85359000, Poids brut: 10.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	675 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	MV
Coupling mechanism	SQ
Position of the coupling mechanism (I_H )	675 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Le produit VSJ3Y6N a été ajouté au bloc-notes

Aller au bloc-notes

Le produit VSJ3Y6N a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce VANH53Y KSX SK A MS VANH53Y

GTIN 4013364461987, Clients tariffs no (UE): 85359000, Poids brut: 10.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	675 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator

Application	MV
Coupling mechanism	SK
Position of the coupling mechanism (I_H )	675 mm
Profile	60 x 12 mm
Height	60 mm
Width	12 mm
Total length (l_G )	1500 mm
Bar spacing (S_A )	450 mm
Max. short-circuit current I_k0.5 s	60 kA
Max. short-circuit current I_k1 s	60 kA
For	Medium-voltage installations
Standard	EN/IEC 61230 (DIN VDE 0683-100)
Temperature range	–25 °C ... +55 °C
Material (Short-Circuiting Bar)	Aluminium
Material (cable)	Highly flexible copper
Cable cross-section	50 mm²
Cable length	2500 mm
Important: Please state the unique Variant No. when ordering. Note: Other types can be configured online via the earthing and short-circuiting configurator
