RFID LifeCheck SPD Test Devices

SPD test device for preventive maintenance

The RFID LifeCheck monitoring device detects thermal or electrical overload conditions of all components
To avoid imminent failure and thus system downtime, the protection module should be replaced as soon as possible

Benefits of this type of SPD testing:

Extremely easy and within a matter of seconds
Detection of thermal or electrical pre-damage of all components

Détails

lorem ipsum — Interval testing with DRC LC M3+.

Communication principle between SPD and test device

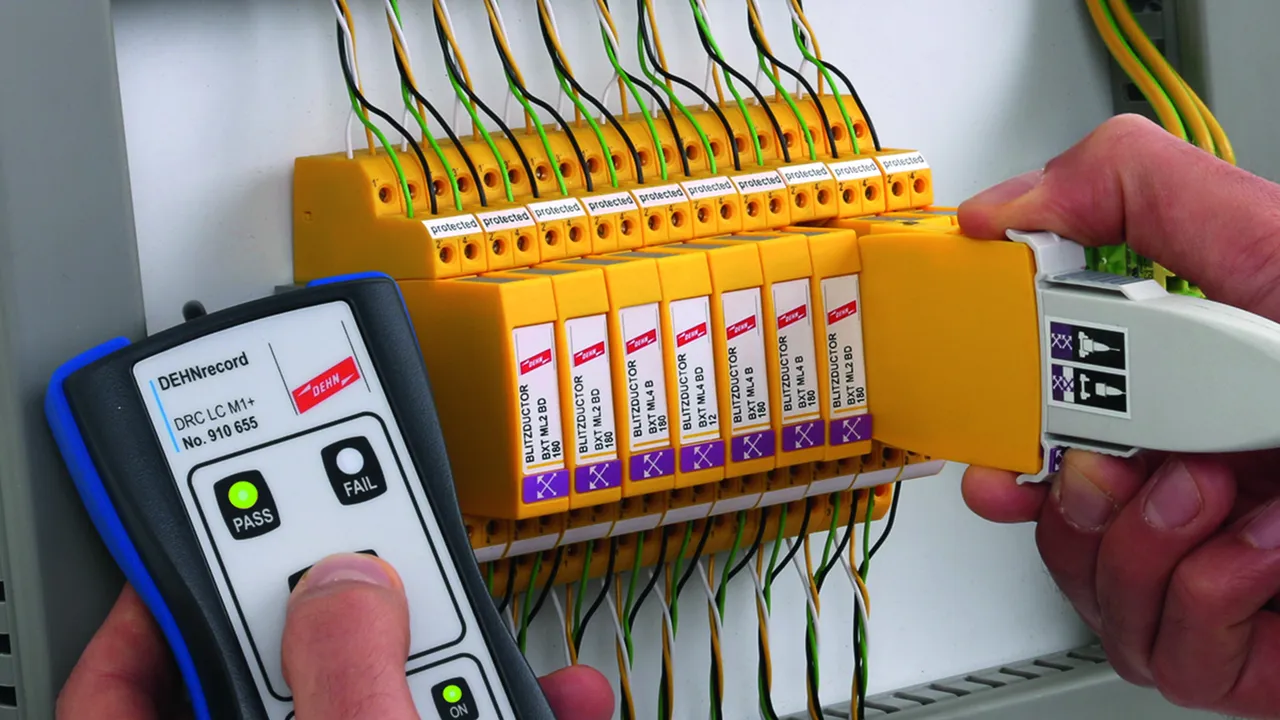

Intuitive operation and fast arrester testing (M1+).

DRC LC M3+

Portable device with LifeCheck sensor for flexible use. Fast and easy testing of LifeCheck-equipped arresters. Visual and acoustic indication. With additional USB connection and database software for PC-aided management of test samples and documentation of the test results. DRC LC M3+ features a snap-on LifeCheck sensor. The hand-held device allows parameterisation of arresters for condition monitoring.

1 Produit

Référence de la pièce 910653 DRC LC M3+

GTIN 4013364113008, Clients tariffs no (UE): 90308900, Poids brut: 1.45 kg, Prix unitaire: 1.00 pc(s)

Précédent

Images

Plus d'informations

Portable DRC LC M3+ device with LifeCheck sensor
Portable SPD test unit for BLITZDUCTOR
surge arrester modules with LifeCheck,
RFID reader with LifeCheck sensor
Very quick testing with visual and acoustic
ok indication and additional USB connection for PC-
aided management of the test objects and
documentation of the test results
The handy storage case contains
reader, LifeCheck sensor, USB cable,
software, loading device and test module for
reference
Testing of: BLITZDUCTOR XT / XTU ML
Testing of BXT ML EX: BLITZDUCTOR XT ML EX: for use in non-hazardous atmospheres only!
RFID transmission frequency: 125 kHz
Measured value indication: beep and LCD
Testing period: typically 3 to 10 sec.

Brand: DEHN
Type: DRC LC M3+
Part No.: 910653
or equivalent.

Certificats

Caractéristiques techniques

Voltage supply (included in delivery)	lithium-ion battery
RFID transmission frequency	125 kHz
Measured value indication	beep and LCD
Delivery includes	hand-held device, BXT LifeCheck sensor, battery charger, USB cable, test module for reference, software CD, storage case
Dimensions of the storage case	340 x 275 x 83 mm

Testing of	BLITZDUCTOR XT / XTU ML
Testing of BXT ML EX	BLITZDUCTOR XT ML EX: for use in non-hazardous atmospheres only!
Voltage supply (included in delivery)	lithium-ion battery
RFID transmission frequency	125 kHz
Measured value indication	beep and LCD
Testing period	typically 3 to 10 sec.
Operating temperature range	-20 °C ... +65 °C
Battery test	automatically switched off in case of flat battery
Cable length to the LifeCheck sensor	approx. 1000 mm
Dimensions of the LifeCheck sensor	90 x 51 x 12 mm
Dimensions of the hand-held device	166 x 95 x 30 mm
Delivery includes	hand-held device, BXT LifeCheck sensor, battery charger, USB cable, test module for reference, software CD, storage case
Dimensions of the storage case	340 x 275 x 83 mm

Le produit 910653 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 910653 a été ajouté au panier.

Aller à la boutique en ligne

DRC LC M1+

Portable device with LifeCheck sensor for flexible use. Fast and easy testing of LifeCheck-equipped arresters. The result of the LifeCheck test, the operating state of the device and the battery status are indicated via LEDs. DRC LC M1+ features a snap-on LifeCheck sensor.

1 Produit

Référence de la pièce 910655 DRC LC M1+

GTIN 4013364149250, Clients tariffs no (UE): 90308900, Poids brut: 1214.60 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Portable DRC LC M1+ device with LifeCheck sensor
Portable arrester test unit for
BLITZDUCTOR surge arrester modules
with LifeCheck, designed as RFID
reader with snap-on LifeCheck sensor.
Testing within a matter of seconds
via visual indication.
The handy storage case includes
the reader, LifeCheck sensor,
USB cable, charger with country-specific
adapters and reference test module.
Testing of: BLITZDUCTOR XT / XTU ML
Testing of BXT ML EX: BLITZDUCTOR XT ML EX: for use in non-hazardous atmospheres only!
RFID transmission frequency: 125 kHz
Measured value indication: LED
Testing period: typically 3 to 10 sec.

Brand: DEHN
Type: DRC LC M1+
Part No.: 910655
or equivalent.

Certificats

Caractéristiques techniques

Voltage supply (included in delivery)	lithium-polymer battery
RFID transmission frequency	125 kHz
Measured value indication	LED
Delivery includes	hand-held device, BXT LifeCheck sensor, power supply unit with country-specific adapters, USB cable, test module for reference, storage case
Dimensions of the storage case	275 x 230 x 83 mm

Testing of	BLITZDUCTOR XT / XTU ML
Testing of BXT ML EX	BLITZDUCTOR XT ML EX: for use in non-hazardous atmospheres only!
Voltage supply (included in delivery)	lithium-polymer battery
RFID transmission frequency	125 kHz
Measured value indication	LED
Testing period	typically 3 to 10 sec.
Operating temperature range	-20 °C ... +60 °C
Battery test	automatically switched off in case of empty batteries
Cable length to the LifeCheck sensor	approx. 1000 mm
Dimensions of the LifeCheck sensor	90 x 51 x 12 mm
Dimensions of the hand-held device	122 x 69 x 33 mm
Delivery includes	hand-held device, BXT LifeCheck sensor, power supply unit with country-specific adapters, USB cable, test module for reference, storage case
Dimensions of the storage case	275 x 230 x 83 mm
