PHE III Voltage Detector

Nominal voltages up to 33 kV / 50 HzSafe verification of isolation from supply voltage

Reliable indication
Easy to use
Cost-effective/space-saving transport

Détails

Plugging a HV STK extension handle into an IS PHE STK insulating stick

lorem ipsum — Plugging a HV STK extension handle into an IS PHE STK insulating stick

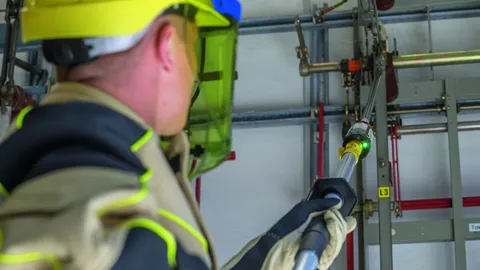

Testing with screwed-on V-shaped electrode

Nominal Voltages up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 Produits

Référence de la pièce 767798 PHE3 3.3 S SN7130

GTIN 4013364160019, Clients tariffs no (UE): 90303370, Poids brut: 1.70 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3.3 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3.3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767798 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767798 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767707 PHE3 6.6 S SN7101

GTIN 4013364131620, Clients tariffs no (UE): 90303370, Poids brut: 2.55 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6.6 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6.6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767707 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767707 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767719 PHE3 11 S SN7116

GTIN 4013364131699, Clients tariffs no (UE): 90303370, Poids brut: 2.55 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	11 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	11 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767719 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767719 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767756 PHE3 22 S SN7128

GTIN 4013364132047, Clients tariffs no (UE): 90303370, Poids brut: 2.65 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	22 kV
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	22 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Single-pole
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767756 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767756 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767757 PHE3 33 S SN7129

GTIN 4013364132054, Clients tariffs no (UE): 90303370, Poids brut: 1.83 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	33 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	33 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767757 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767757 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 33 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 Produits

Référence de la pièce 767758 PHE3 3.3 11 S SN7127

GTIN 4013364132030, Clients tariffs no (UE): 90303370, Poids brut: 1.86 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3.3 ... 11 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3.3 ... 11 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767758 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767758 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767769 PHE3 6.6 22 SN7197

GTIN 4013364139831, Clients tariffs no (UE): 90303370, Poids brut: 1.93 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6.6 ... 22 kV
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6.6 ... 22 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767769 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767769 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767773 PHE3 11 33 S SN7264

GTIN 4013364135567, Clients tariffs no (UE): 90303370, Poids brut: 1.90 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	11 ... 33 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	11 ... 33 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767773 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767773 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 33 kV / 50 Hz, switchable, M12 Thread

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3.3 kV to 11 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 Produit

Référence de la pièce 767774 PHE3 U 3.3 33 SN7108

GTIN 4013364131637, Clients tariffs no (UE): 90303370, Poids brut: 2.00 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	– 25 °C ... + 55 °C, climatic category N
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor switchgear installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
