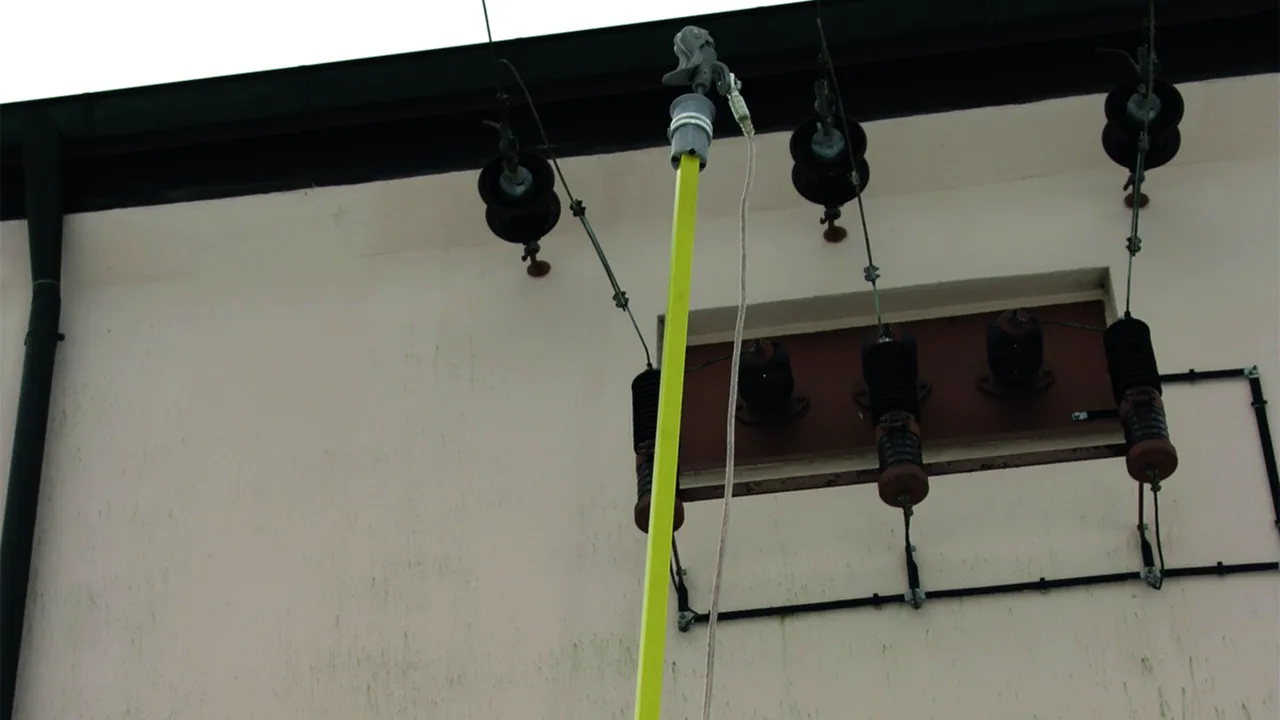

Earthing Sticks for Overhead Lines

For outdoor use
Robust aluminium cone coupling
Total lengths up to 6000 mm
Telescopic stick, length continuously adjustable by star knob
For phase screw clamps and clamps with long T pin shaft

Détails

End fitting with eye (Al/rubber) or plug-in coupling with eye (Al/rubber) for extending the handle.

lorem ipsum — End fitting with eye (Al/rubber) or plug-in coupling with eye (Al/rubber) for extending the handle.

Robust aluminium threaded coupling allows positive and non-positive connection due to the screw connection and gearing.

Earthing stick with aluminium cone coupling used for clamps with long shaft in accordance with DIN 48087.

Load values for extendible earthing sticks.

**Lockable adjusting ring**
The adjusting ring on the cone has the following functions:
– Position "AUF" (= OPEN): Stick can be removed after the clamp has been attached
– Position "ZU" (= CLOSED): Stick and clamp remain coupled even after the earthing and short-circuiting device has been attached

Telescopic, with T pin shaft

2 Produits

Référence de la pièce 769400 ESTC SQL 4000

GTIN 4013364080881, Clients tariffs no (UE): 82055980, Poids brut: 4.42 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Total length (l_{G max} / I_{G min} )	4015 / 2180 mm
Length (handle) (I_H )	1400 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Diameter	43 mm

Total length (l_{G max} / I_{G min} )	4015 / 2180 mm
Length (handle) (I_H )	1400 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling, star knob)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Earthing stick

Le produit 769400 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 769400 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 769500 ESTC SQL 5000

GTIN 4013364080904, Clients tariffs no (UE): 82055980, Poids brut: 5.02 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Total length (l_{G max} / I_{G min} )	5015 / 2680 mm
Length (handle) (I_H )	1900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Diameter	43 mm

Total length (l_{G max} / I_{G min} )	5015 / 2680 mm
Length (handle) (I_H )	1900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling, star knob)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Earthing stick

Le produit 769500 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 769500 a été ajouté au panier.

Aller à la boutique en ligne

Telescopic, with T pin shaft, plug-in coupling

1 Produit

Référence de la pièce 769300 ESTC SQL STK 3000

GTIN 4013364080867, Clients tariffs no (UE): 82055980, Poids brut: 3.80 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Total length (l_{G max} / I_{G min} )	3015 / 1760 mm
Length (handle) (I_H )	900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Diameter	43 mm

Total length (l_{G max} / I_{G min} )	3015 / 1760 mm
Length (handle) (I_H )	900 mm
Max. load on the operating head (l_{G max} / I_{G min} )	10 / 20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling, star knob)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Earthing stick

Le produit 769300 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 769300 a été ajouté au panier.

Aller à la boutique en ligne

Multi-part, top section

With aluminium bayonet coupling and aluminium threaded coupling as end fitting.

1 Produit

Référence de la pièce 769503 EST KS SQL 1500

GTIN 4013364003996, Clients tariffs no (UE): 82055980, Poids brut: 2.39 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Total length (l_G )	1600 mm
Max. load on the operating head	20 kg
Diameter	43 mm

Total length (l_G )	1600 mm
Max. load on the operating head	20 kg
Temperature range	–25 °C ... +55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling)	Aluminium alloy
Diameter	43 mm
Supporting head for	T pin shaft
Type of device	Earthing stick - top section
