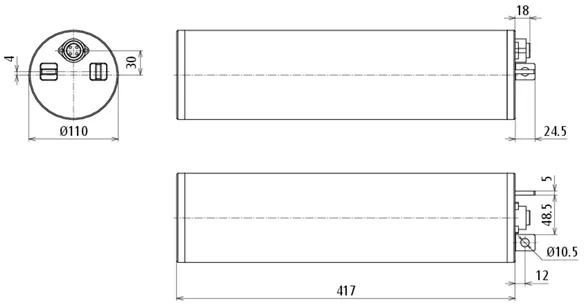

Référence de la pièce 923402 DASD 45 LP 100 T

GTIN 4013364442269, Clients tariffs no (UE): 85363030, Poids brut: 3.69 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

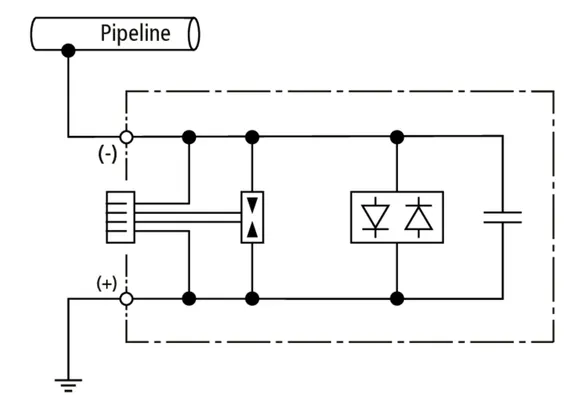

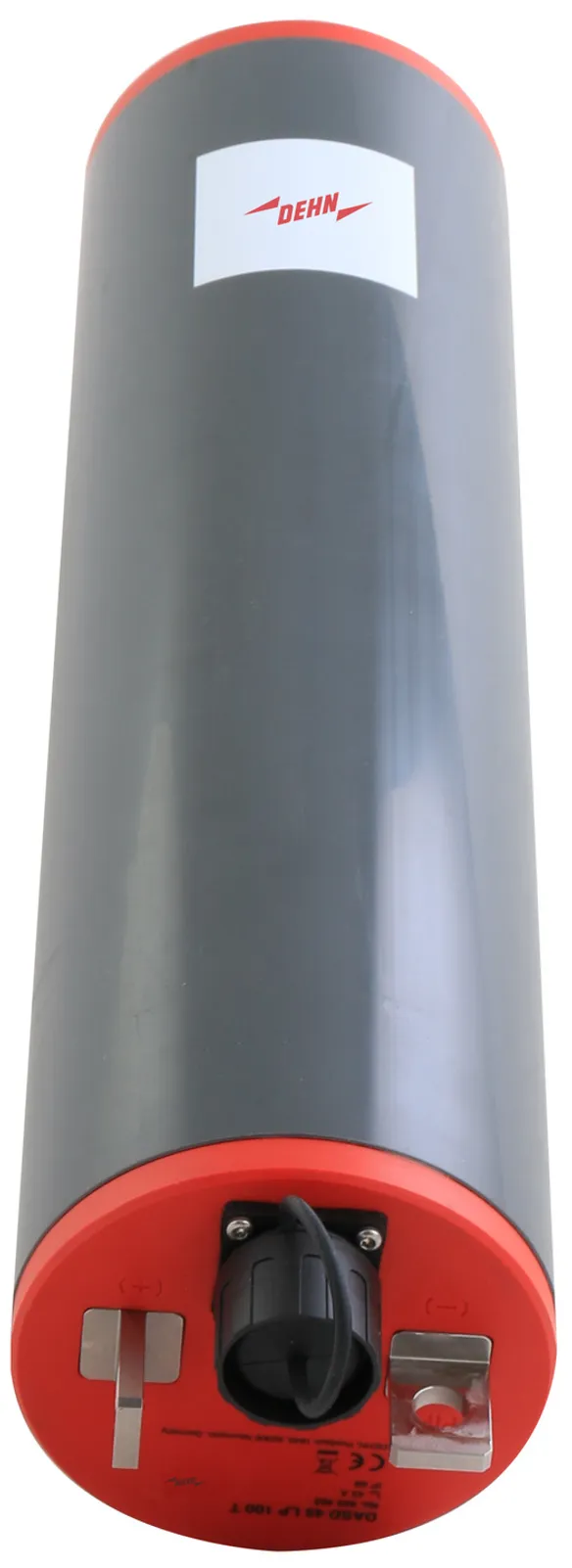

Capacitive decoupling device DASD
Capacitive decoupling device
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 75 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 3.7 kArms (up to 200 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
With integrated test socket

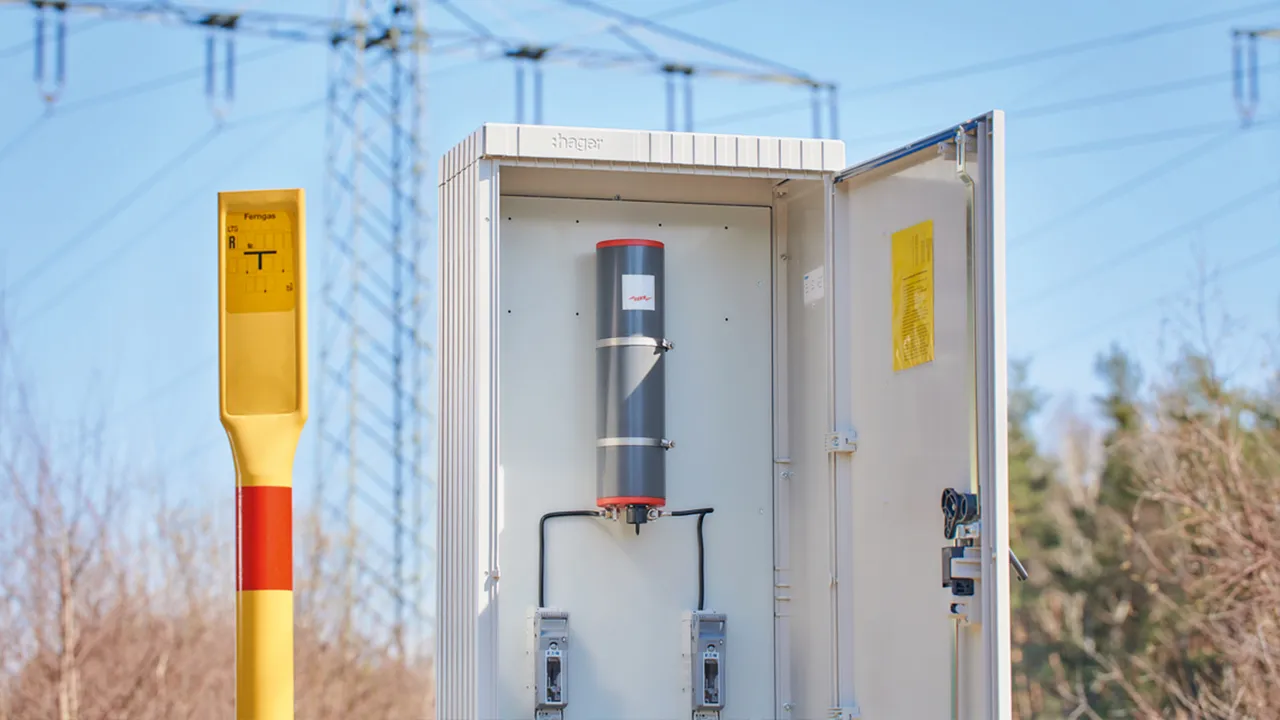

For outdoor use

Brand: DEHN
Type: DASD 45 LP 100 T
Part No.: 923402
or equivalent.

Certificats

Caractéristiques techniques

Transient discharge current (10/350 µs)	75 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	5.0 kA_rms (up to 40 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	3.7 kA_rms (up to 200 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	2.0 kA_rms(up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 1.35 kV
Long-duration limiting voltage (> 600 ms)	≤ 3 V
IECEx approvals	IECEx TUR 22.0029X
Ex marking according to EN 60079-0 and EN 60079-7	Ex ec IIC T4 Gc

Transient discharge current (10/350 µs)	75 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	5.0 kA_rms (up to 40 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	3.7 kA_rms (up to 200 ms)
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz)	2.0 kA_rms(up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 1.35 kV
Temporary limiting voltage (a.c._rms) (1 ... 600 ms)	≤ 20 V
Long-duration limiting voltage (> 600 ms)	≤ 3 V
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	- 2 V / + 1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-45 °C ... +65 °C
Enclosure material	PVC-U
Degree of protection	IP 68
Test socket	four-pole with protective cap
IECEx approvals	IECEx TUR 22.0029X
Ex marking according to EN 60079-0 and EN 60079-7	Ex ec IIC T4 Gc
Extended technical data:	---------------------------------
– Max. fault current	5 kA (600 ms)

Le produit 923402 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 923402 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 923406 DASD 45 5 LP 1 T

GTIN 4013364509504, Clients tariffs no (UE): 85363030, Poids brut: 8.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

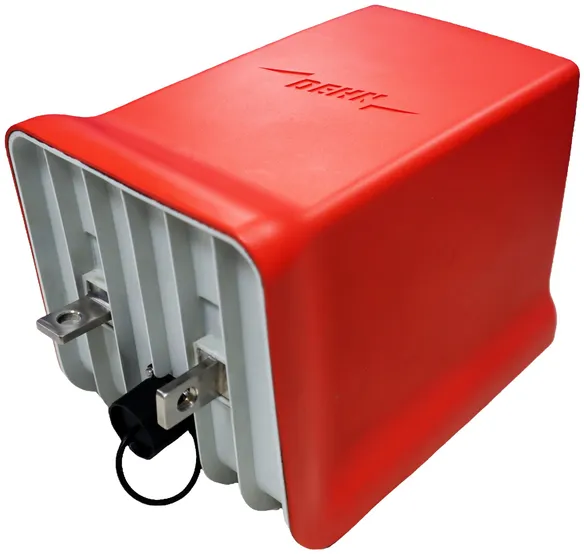

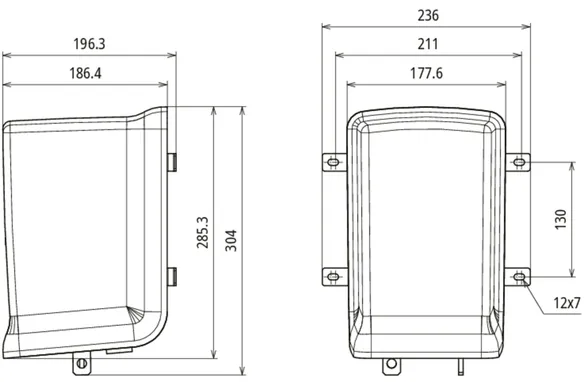

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 100 kA
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 5.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -2 V / +1 V
With integrated test socket

Brand: DEHN
Type: DASD 45 5 LP 1 T
Part No.: 923406
or equivalent.

Certificats

Caractéristiques techniques

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	- 2 V / + 1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	four-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Le produit 923406 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 923406 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 923408 DASD 45 5 LP 2 T

GTIN 4013364520783, Clients tariffs no (UE): 85363030, Poids brut: 8.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 100 kA
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 5.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -2 V / +2 V
With integrated test socket

Brand: DEHN
Type: DASD 45 5 LP 2 T
Part No.: 923408
or equivalent.

Certificats

Caractéristiques techniques

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	-2 V / +2 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Le produit 923408 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 923408 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 923409 DASD 45 5 LP 3 T

GTIN 4013364520790, Clients tariffs no (UE): 85363030, Poids brut: 8.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (10/350 us): 100 kA
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 5.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -3 V / +1 V
With integrated test socket

Brand: DEHN
Type: DASD 45 5 LP 3 T
Part No.: 923409
or equivalent.

Certificats

Caractéristiques techniques

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	100 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	5 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	-3 V / +1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (stainless steel)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Le produit 923409 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 923409 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 923410 DASD 45 10 2 T

GTIN 4013364520806, Clients tariffs no (UE): 85363030, Poids brut: 8.00 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 10.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -2 V / +2 V
With integrated test socket

Brand: DEHN
Type: DASD 45 10 2 T
Part No.: 923410
or equivalent.

Certificats

Caractéristiques techniques

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 / 60 Hz
Max. permissible voltage (d.c.)	-2 V / +2 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (Copper)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Le produit 923410 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 923410 a été ajouté au panier.

Aller à la boutique en ligne

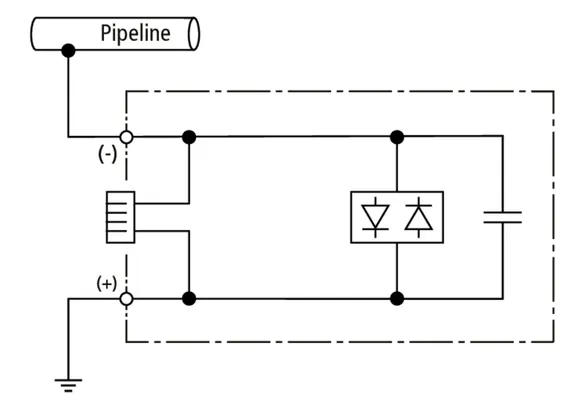

Référence de la pièce 923411 DASD 45 10 3 T

GTIN 4013364520776, Clients tariffs no (UE): 85363030, Poids brut: 5.30 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

DC decoupling device DASD
For protection in case of transient, temporary and long-duration overvoltages
Discharge current transient: (8/20 us): 100 kA
Temporary discharge current (16.7 Hz, 50 Hz, 60 Hz): 10.0 kArms (up to 600 ms)
Long-duration discharge current (16.7 Hz, 50 Hz, 60 Hz): 45 A (permanent)
Max. permissible voltage (d.c.) -3 V / +1 V
With integrated test socket

Brand: DEHN
Type: DASD 45 10 3 T
Part No.: 923411
or equivalent.

Caractéristiques techniques

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10.0 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Transient discharge current (10/350 µs)	50 kA
Transient discharge current (8/20 µs)	100 kA
Temporary discharge current (50 Hz, 60 Hz)	10.0 kA_rms (up to 600 ms)
Long-duration discharge current (50 Hz, 60 Hz)	45 A_rms
Transient limiting voltage (up to 1 ms)	≤ 5.2 kV
Frequency range (a.c.)	50 Hz / 60 Hz
Max. permissible voltage (d.c.)	-3 V / +1 V
Max. leakage current (20 °C) *	< 20 µA
Terminal (pipe / earth electrode)	M10 (Copper)
Operating temperature range (T_U )	-40°C to +60°C
Enclosure material	Grilon TSG (PA66/6)
Degree of protection	IP 68
Test socket	4-pole with protective cap
* This test is carried out to measure any leakage current via capacitor at a temperature of 20 deg C, with an applied DC voltage of 0.5V, and after a stabilzation period of 1hour.

Le produit 923411 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 923411 a été ajouté au panier.

Aller à la boutique en ligne

Decoupling device DASD 45

DASD 45 LP 100 T

Référence de la pièce 923402 DASD 45 LP 100 T

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 923402 a été ajouté au bloc-notes

Le produit 923402 a été ajouté au panier.

DASD 45 5 LP 1 T

Référence de la pièce 923406 DASD 45 5 LP 1 T

Vous nêtes pas autorisé à télécharger

Le produit 923406 a été ajouté au bloc-notes

Le produit 923406 a été ajouté au panier.

DASD 45 5 LP 2 T

Référence de la pièce 923408 DASD 45 5 LP 2 T

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 923408 a été ajouté au bloc-notes

Le produit 923408 a été ajouté au panier.

DASD 45 5 LP 3 T

Référence de la pièce 923409 DASD 45 5 LP 3 T

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 923409 a été ajouté au bloc-notes

Le produit 923409 a été ajouté au panier.

DASD 45 10 2 T

Référence de la pièce 923410 DASD 45 10 2 T

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 923410 a été ajouté au bloc-notes

Le produit 923410 a été ajouté au panier.

DASD 45 10 3 T

Référence de la pièce 923411 DASD 45 10 3 T

Vous nêtes pas autorisé à télécharger

Vous nêtes pas autorisé à télécharger

Le produit 923411 a été ajouté au bloc-notes

Le produit 923411 a été ajouté au panier.
