Ground clamp

Ground clamp

7/8 inch U-Bolt counterpoise clamp

1 Produit

GTIN 4013364518292, Clients tariffs no (UE): 85359000, Poids brut: 8.80 OZ, Prix unitaire: 10.00 pc(s)

Images

Plus d'informations

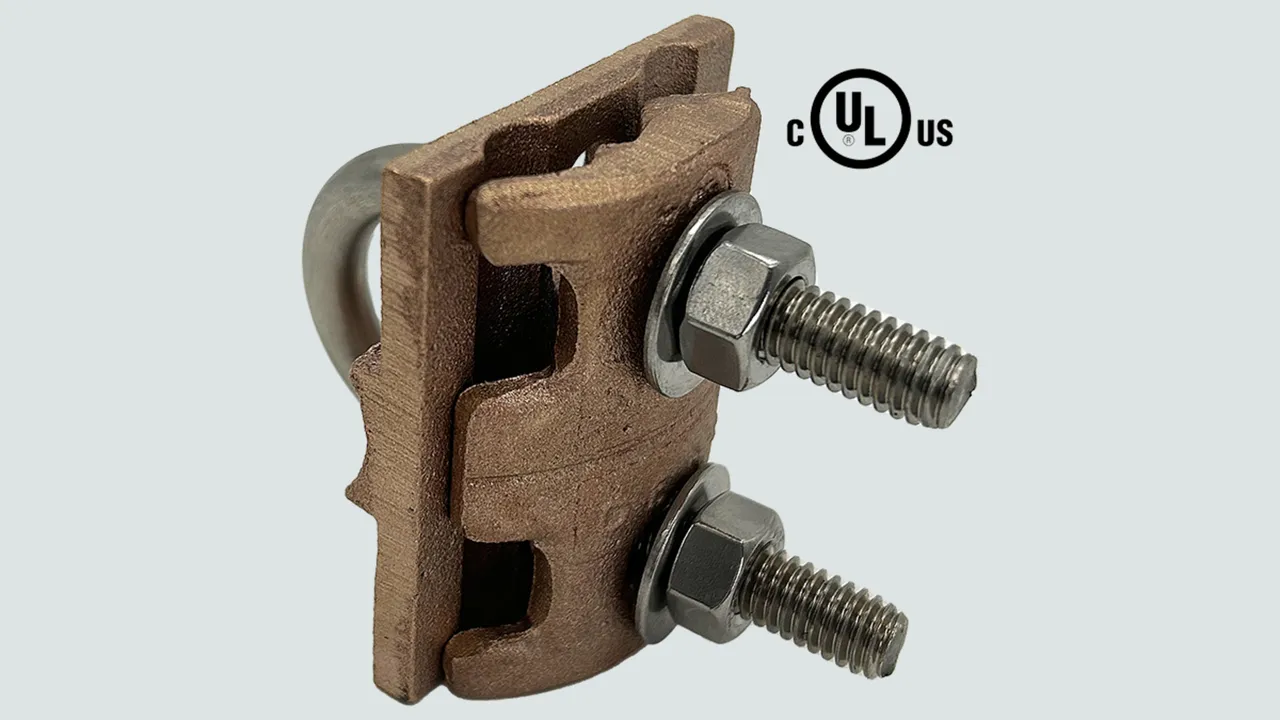

Bronze 7/8 Inch U-Bolt Counterpoise Clamp

Brand: DEHN
Type: GRC 7/8'' SSUB BZ
Part No.: 238160
or equivalent.

Caractéristiques techniques

Material	Copper (minimum 80%)
Conductor material	Copper, Stainless steel, Steel
Clamping range stranded cable	7/16-19/32 in. (50-107 mm²)
Material of U-Bolt	Stainless steel
Clamp fixings	5/16-18 U-bolt, nuts and washers
Material of clamp fixings	Stainless steel
Dimensions	1-7/8 x 2-1/4 in (4.76 x 5.71 cm)
Standards	UL 96
Classification	Class 1 + 2
Weight (Metric)	250 g

Material	Copper (minimum 80%)
Conductor material	Copper, Stainless steel, Steel
Clamping range stranded cable	7/16-19/32 in. (50-107 mm²)
Material of U-Bolt	Stainless steel
Clamp fixings	5/16-18 U-bolt, nuts and washers
Material of clamp fixings	Stainless steel
Dimensions	1-7/8 x 2-1/4 in (4.76 x 5.71 cm)
Standards	UL 96
Classification	Class 1 + 2
Weight (Metric)	250 g
