IS Insulating Sticks

Easy and safe working

Cost-effective since the application of different supporting heads allows universal use
Easy handling

Détails

IS SQ insulating stick fitted with SSK SQ switching stick head. Black knurled nut for additional locking on the insulating stick.

lorem ipsum — IS SQ insulating stick fitted with SSK SQ switching stick head. Black knurled nut for additional locking on the insulating stick.

The handle of IS STK insulating sticks can be easily extended via the plug-in coupling.

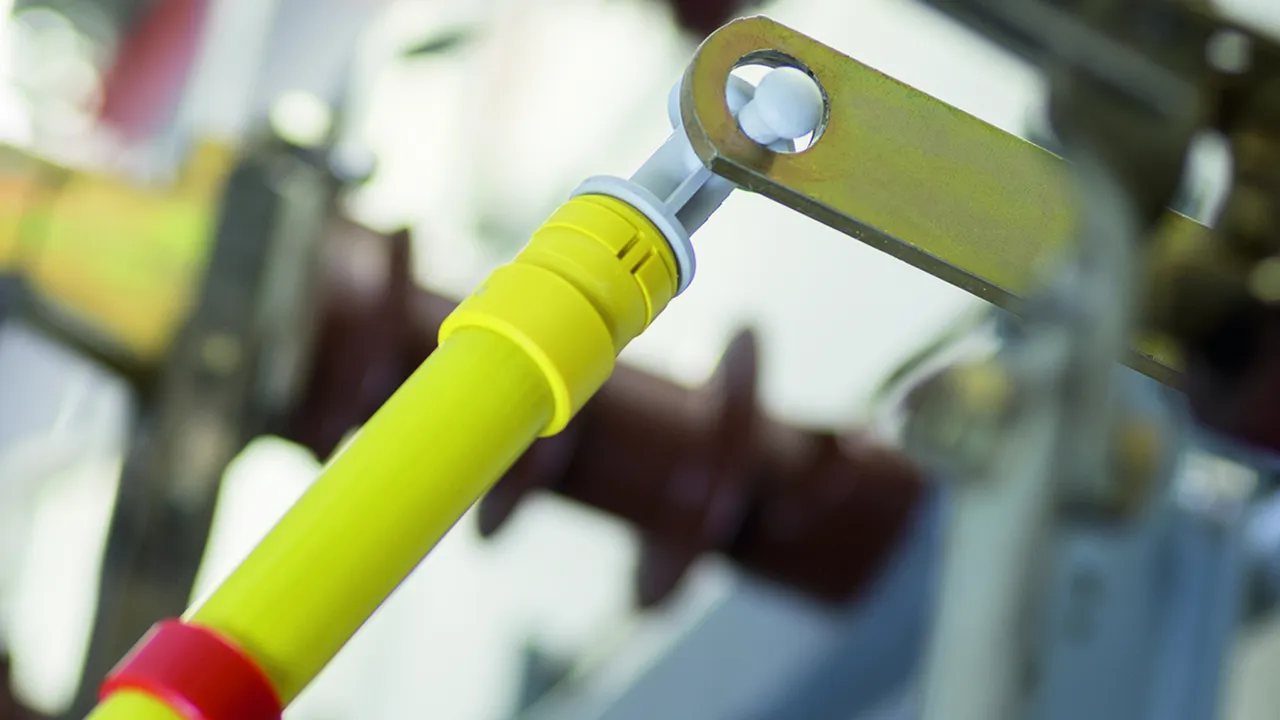

IS SK insulating stick used for clamps with hexagon shaft of earthing and short-circuiting devices.

IS SK insulating stick fitted with SSK M12 switching stick head.

Insulating Stick, Hexagon Shaft

Operating head with spring locking mechanism and M12 threaded bushing

Can be used as switching and operating stick by attaching a SSK M12 switching stick head
Can be used as earthing stick
Handle closed with end cap

2 Produits

Référence de la pièce 766001 IS 36 SK 1000

GTIN 4013364017825, Clients tariffs no (UE): 82055980, Poids brut: 916.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick

Le produit 766001 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766001 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 766002 IS 36 SK 1500

GTIN 4013364017832, Clients tariffs no (UE): 82055980, Poids brut: 1610.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1500 mm
Insertion depth (I_O )	475 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1500 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	475 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick

Le produit 766002 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766002 a été ajouté au panier.

Aller à la boutique en ligne

Insulating Stick, T Pin Shaft

Operating head with spring-loaded bayonet coupling

Can be used as switching and operating stick by attaching a SSK SQ switching stick head
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Handle closed with end cap

3 Produits

Référence de la pièce 766311 IS 36 SQ 1000

GTIN 4013364017856, Clients tariffs no (UE): 82055980, Poids brut: 919.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Le produit 766311 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766311 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 766315 IS 36 SQ 1500

GTIN 4013364008281, Clients tariffs no (UE): 82055980, Poids brut: 1620.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1525 mm
Insertion depth (I_O )	500 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1525 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	500 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Le produit 766315 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766315 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 766312 IS 72.5 SQ SN7743

GTIN 4013364311985, Clients tariffs no (UE): 82055980, Poids brut: 1040.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 72.5 kV
Total length (l_G )	1300 mm
Insertion depth (I_O )	90 mm
For use at	^
^*) Max. shutter weight when inserting insulating protective shutters

Nominal voltage (U_N )	1 ... 72.5 kV
Total length (l_G )	1300 mm
Insulating clearance (l_I )	900 mm
Handle length (I_H )	310 mm
Insertion depth (I_O )	90 mm
Standard (insulating stick)	E DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	No
Type of device	Insulating stick
^*) Max. shutter weight when inserting insulating protective shutters

Le produit 766312 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766312 a été ajouté au panier.

Aller à la boutique en ligne

Insulating Stick, Hexagon Shaft, Plug-in Coupling

Operating head with spring locking mechanism and M12 threaded bushing

Can be used as switching and operating stick by attaching a SSK M12 switching stick head
Can be used as earthing stick
Handle closed with plastic plug-in coupling for extending the handle

3 Produits

Référence de la pièce 766100 IS 36 SK STK 1000

GTIN 4013364125117, Clients tariffs no (UE): 82055980, Poids brut: 900.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Le produit 766100 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766100 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 766122 IS 123 SK STK 2000

GTIN 4013364134249, Clients tariffs no (UE): 82055980, Poids brut: 1800.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insertion depth (I_O )	200 mm
For use at	^

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insulating clearance (l_I )	1300 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	200 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Le produit 766122 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766122 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 766111 ISN 36 SK STK 1000

GTIN 4013364137295, Clients tariffs no (UE): 82055980, Poids brut: 1060.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insertion depth (I_O )	175 mm
For use at	_

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1000 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	300 mm
Insertion depth (I_O )	175 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	_
Supporting head for	Hexagon shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Le produit 766111 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766111 a été ajouté au panier.

Aller à la boutique en ligne

Insulating Stick, T Pin Shaft, Plug-in Coupling

Operating head with spring-loaded bayonet coupling

Can be used as switching and operating stick by attaching a SSK SQ switching stick head
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Handle closed with plastic plug-in coupling for extending the handle

3 Produits

Référence de la pièce 766301 IS 36 SQ STK 1000

GTIN 4013364125124, Clients tariffs no (UE): 82055980, Poids brut: 900.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	^

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Le produit 766301 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766301 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 766322 IS 123 SQ STK 2000

GTIN 4013364134256, Clients tariffs no (UE): 82055980, Poids brut: 1800.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insertion depth (I_O )	200 mm
For use at	^

Nominal voltage (U_N )	1 ... 123 kV
Total length (l_G )	2000 mm
Insulating clearance (l_I )	1300 mm
Handle length (I_H )	500 mm
Insertion depth (I_O )	200 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	^
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Le produit 766322 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766322 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 766310 ISN 36 SQ STK 1000

GTIN 4013364137318, Clients tariffs no (UE): 82055980, Poids brut: 1060.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insertion depth (I_O )	150 mm
For use at	_

Nominal voltage (U_N )	1 ... 36 kV
Total length (l_G )	1025 mm
Insulating clearance (l_I )	525 mm
Handle length (I_H )	350 mm
Insertion depth (I_O )	150 mm
Standard (insulating stick)	DIN VDE V 0681-1
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 mm
For use at	_
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick

Le produit 766310 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 766310 a été ajouté au panier.

Aller à la boutique en ligne

Insulating Stick, detachable, T Pin Shaft, Plug-in Coupling

Operating head with bayonet coupling with spring locking mechanism

Can be used as switching stick and operating stick by attaching the switching stick head SSK SQ
Can be used as operating stick for inserting insulating protective shutters
Can be used as earthing stick
Can be used as handle termination with end cap

1 Produit

Référence de la pièce 766332 ISN 123 SQ STK 2500

GTIN 4013364137325, Clients tariffs no (UE): 82055980, Poids brut: 3.08 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	110 ... 123 kV
Total length (l_G )	2495 mm
Insertion depth (I_O )	290 mm
For use at	_
^*) Max. weight of insulating shutters, for example.

Nominal voltage (U_N )	110 ... 123 kV
Max. load on the operating head ^*)	5 kg
Total length (l_G )	2495 mm
Insulating clearance (l_I )	1485 mm
Handle length (I_H )	720 mm
Insertion depth (I_O )	290 mm
For	Indoor and outdoor installations
Material	Glass-fibre reinforced polyester tube
Diameter	30 / 43 mm
For use at	_
Supporting head for	T pin shaft
Anti-rotation plug-in coupling including end fitting	Yes
Type of device	Insulating stick
^*) Max. weight of insulating shutters, for example.
