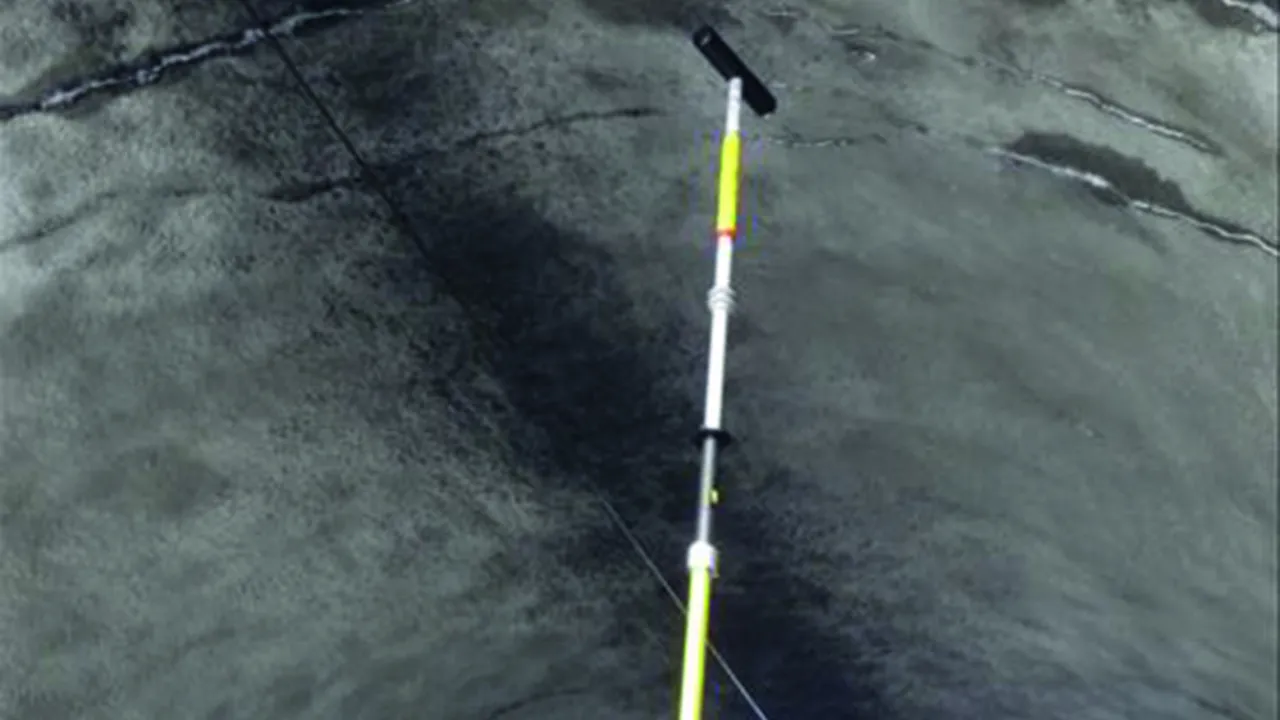

Ice Removal Rod

For removing icicles in the vicinity of live parts e.g. outdoor overhead contact lines or tunnel systems
Massive icicle removal hammer made of insulating material
Insulating stick for 15 kV / 16.7 Hz and 25 kV / 50 Hz systems
With telescopic handle up to a total length of 3420 mm to 5270 mm

Operating Head (Hammer)

With plug-in coupling.

1 Produit

GTIN 4013364139916, Clients tariffs no (UE): 96039099, Poids brut: 1.62 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Aller au bloc-notes

Aller à la boutique en ligne

With plug-in coupling for operating head (hammer).

1 Produit

GTIN 4013364139909, Clients tariffs no (UE): 82055980, Poids brut: 1060.00 g, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Nominal voltage (U_N )	1 ... 25 kV
Total length (l_G )	920 mm
Standard (insulating stick)	Based on DIN VDE 0682 - 411 and DIN VDE V 0681 - 1
For use at	_
Operating temperature range (T_U )	– 25 °C ... + 55 °C
Material (insulating tube)	Glass-fibre reinforced polyester tube
Diameter	30 mm
Type of device	Insulating stick

Aller au bloc-notes

Aller à la boutique en ligne

With plug-in coupling for the insulating stick and end fitting with eye.

1 Produit

GTIN 4013364139893, Clients tariffs no (UE): 96039099, Poids brut: 3.92 kg, Prix unitaire: 1.00 pc(s)

Images

Plus d'informations

Caractéristiques techniques

Aller au bloc-notes

Aller à la boutique en ligne

Nominal voltage (U_N )	1 ... 25 kV
Frequency	50 and 16.7 Hz
Total length (l_G )	400 mm
Dimensions (operating head)	300 x 56 mm
Standard (operating head)	Based on DIN VDE 0682 - 411 and DIN VDE V 0681 - 1
For use at	_
Material (handle)	Glass-fibre reinforced polyester tube
