Equipotential Bonding

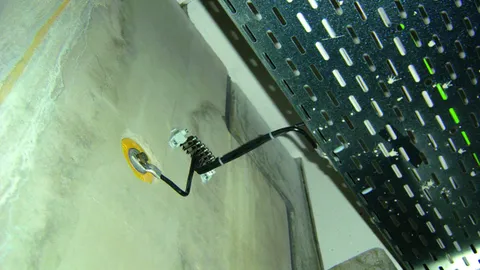

Equipotential bonding and earthing bars for equipotential bonding of extraneous conductive parts according to VDE 0100 and lightning equipotential bonding according to EN 62305-3.

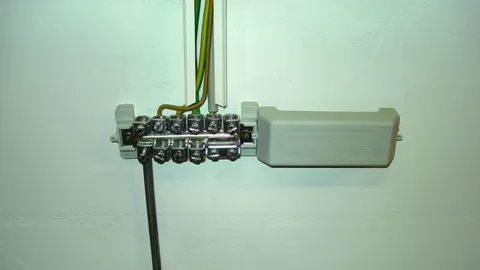

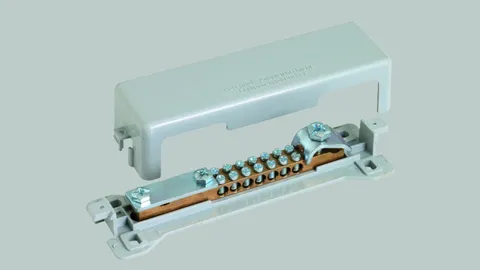

Equipotential Bonding Busbars K12 with Snap-on Terminals

Equipotential bonding busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3.
  • Tested according to DIN VDE 0618-1
  • VDE sign
  • CE sign
  • Fixing frames and plastic cover, grey or black (halogen-free)
  • Sealable / labelable cover
  • Snap-on terminals, St/gal Zn
  • With 12 contact studs
Assignment: For Rd one contact stud eachFor Fl two contact studs each

Equipotential Bonding Busbar MS

For equipotential bonding.
Terminals for:
7 conductors 2.5-25 mm² (solid / stranded).
1 conductor Rd Ø7-10 mm.
1 conductor Fl up to 30 x 3.5 mm or Rd Ø8-10 mm.

Equipotential Bonding Busbars R15 with Terminal Block System / Kit

Equipotential bonding busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3
  • Tested according to DIN VDE 0609
  • 15 modules
  • Grey plastic bar frames and cover (halogen-free)
  • Sealable / labelable cover
  • Terminal block, St/gal Zn

Equipotential Bonding Busbar with Miniature Terminal Block System

Equipotential bonding busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 in small installations.
  • Tested according to DIN EN 60999-2
  • Terminal block, St/gal Zn

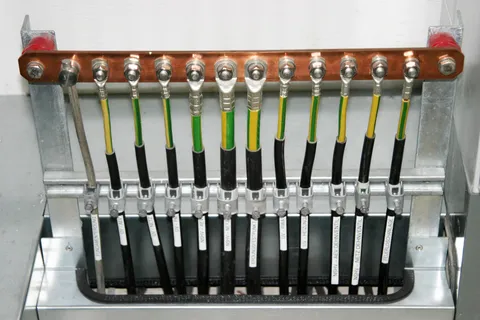

Equipotential Bonding Busbars Industry

Equipotential bonding busbars for the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.Also for use in potentially explosive atmospheres (secured against self-loosening of screws).
  • With spring washer
  • Insulator UP (duroplastic, red) with M10 thread
  • UV-stabilised and halogen-free

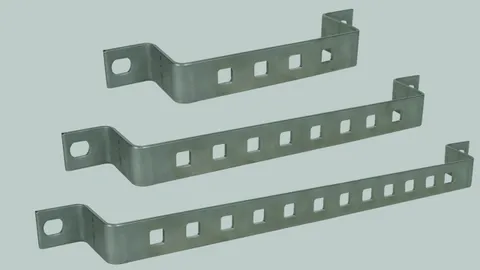

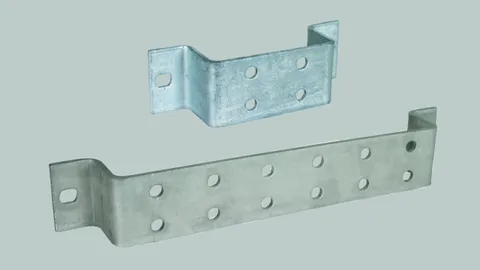

Single-Row Earthing Busbars

Earthing busbars for screwing on steel contructions, hole spacing 35 mm.Connection possibilities:
  • Flat strip with hole: with M10 flat head screws (with anti-rotation protection), nuts and spring washer
  • Round conductor: with KS connector, e.g. Part No. 301 000 / 301 019 or with clamping frame, e.g. Part No. 390 150

Two-Row Earthing Busbars

Earthing busbars for screwing on steel constructions, hole spacing 50 mm.Connection possibilities:
  • Flat strip with hole: with hexagon screws M10, nuts and spring washer
  • Flat strip (-40 mm) without hole: with clamping plate of disconnecting clamps, e.g. Part No. 454 100
  • Round conductor: with KS connector, e.g. Part No. 301 000 / 301 019 or with clamping piece, e.g. Part No. 390 150

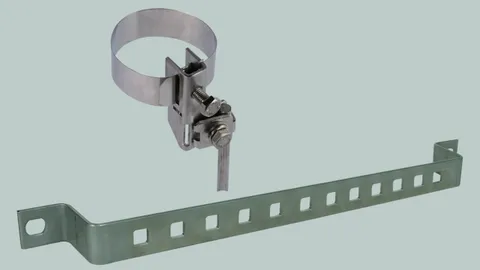

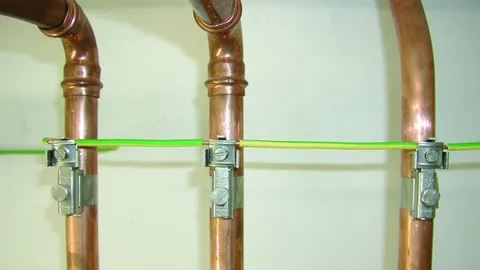

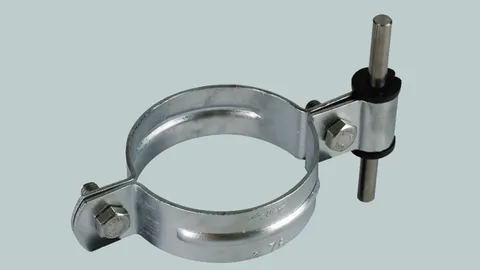

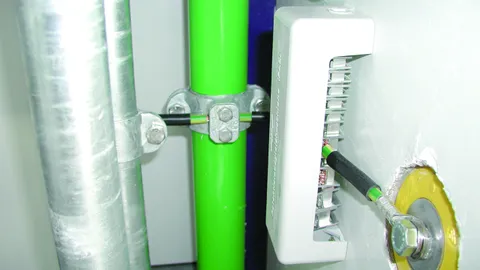

Earthing Pipe Clamps

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/5-54, with continuously adjustable tensioning strap.

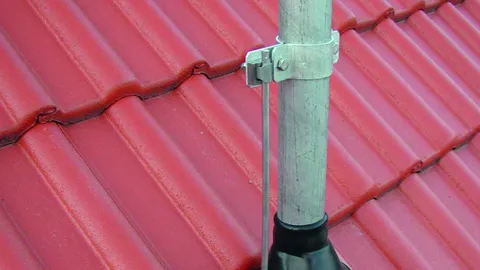

Antenna Earthing

Pipe clamp for lightning equipotential bonding of pipes (e.g. antenna poles) according to IEC/EN 62305-3.

With gradually adjustable tensioning strap, for connecting one or two conductors and suitable for through-wiring.

Lightning Protection Pipe Clamp with Tines

Pipe clamp for the integration of pipes with surface protection into the lightning equipotential bonding according to IEC/EN 62305-3.
For use on surfaces (e.g. varnished or powder-coated) with a coating thickness up to 0.2 mm.

The special tines penetrate the surface protection and provide the necessary contact so that it is not necessary to remove the surface protection.

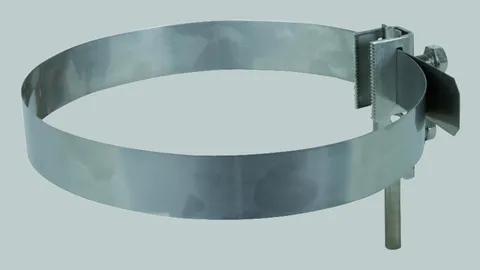

Lightning Protection Earthing Pipe Clamps

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3.

The clamping range (specified in mm and inch) refers to the outer diameter according to DIN EN ISO 228-1 of the pipes.

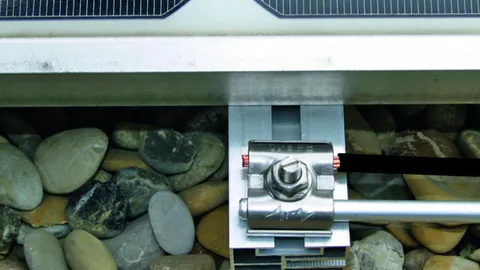

UNI Saddle Clamp

For integrating mounting systems, e.g. of PV installations, in the functional equipotential bonding / functional earthing (black conductor possible) and lightning equipotential bonding.

The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.

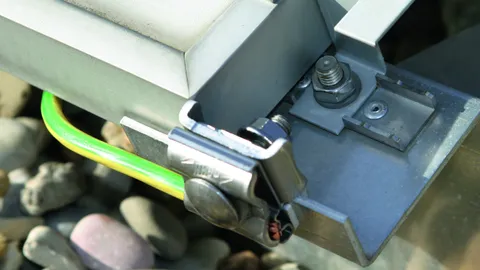

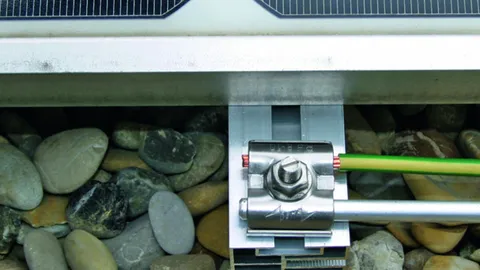

UNI Earthing Clamps

For integrating the mounting systems, e.g. of PV installations in the functional equipotential bonding / functional earthing (black conductor possible) and lightning equipotential bonding.
The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt ) to be connected to the usual mounting systems, e.g. to aluminium, without the risk of contact corrosion.

Protective Spark Gap

Protective spark gap in closed design with plastic sheath for indirect connection of an overhead line roof pole to the external lightning protection system.

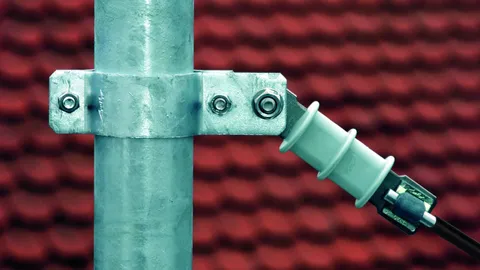

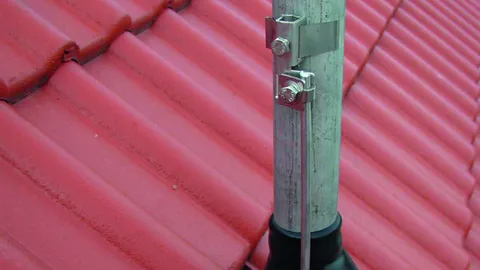

Pipe Clamps for Service Entry Masts

For connecting spark gaps with service entry masts

Conductor Holders for Service Entry Masts

For fixing round conductors to service entry masts, insulated with clamp bush.

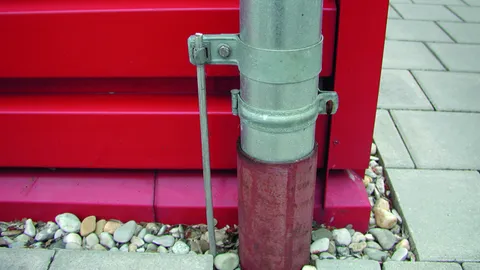

Downpipe Clamps

Pipe clamps for connecting downpipes to the lightning equipotential bonding according to IEC/EN 62305-3.
Connection possibilities for Rd, e.g. with KS connector (Part No. 301 000) or with clamping piece (Part No. 390 150) (depending on material).

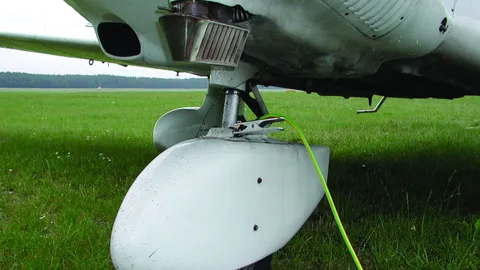

Earthing Tongs

  • For connection to tank vehicles, aircraft, etc.
  • For discharging static charge
  • For use in hazardous areas

Flat Strip / Round Conductor Holders with Thrust Piece

For wall mounting.
Thrust piece with M8 screw for installing flat strips up to 11 mm and round conductors 6-10 mm.

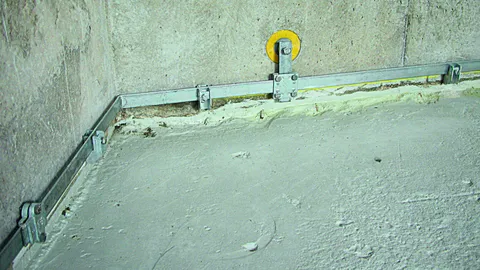

Conductor Holder

Conductor holder for installing round and flat conductors for equipotential bonding,e.g. in transformer stations, processor rooms.
Insulated conductor holder.

Connection Clamp

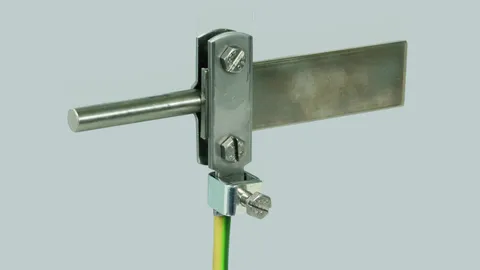

For universal connection to the ring equipotential bonding for St/tZn, copper or stainless steel (StSt).

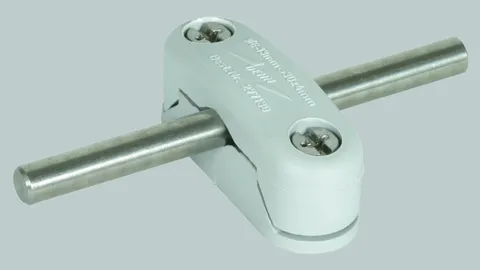

Mounting set with direct clamping of round material
