PHE III Voltage Detector

Safe verification of isolation from supply voltage

Reliable indication
Easy to use
Cost-effective / space-saving transport

Détails

Universal gear coupling allows to adjust the angle of the voltage detector

Plugging a HV STK extension handle into an IS PHE STK insulating stick

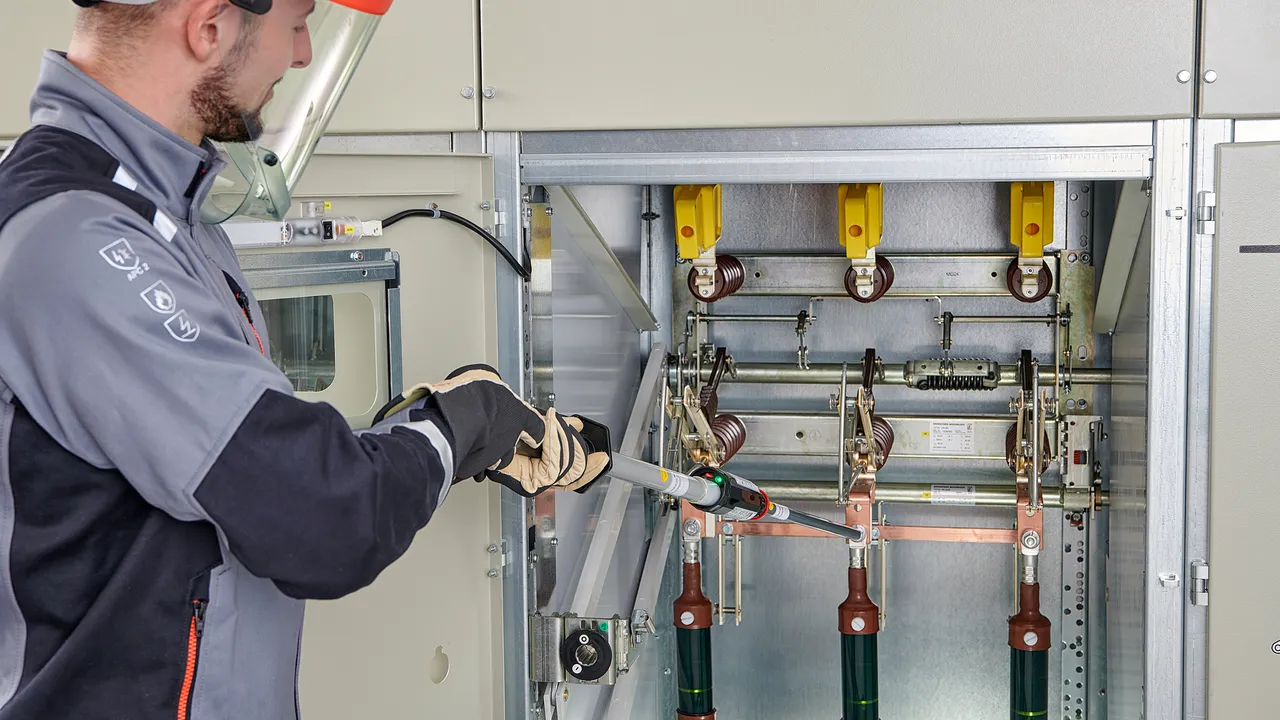

Testing with screwed-on V-shaped electrode

Nominal Voltages up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

5 Produits

Référence de la pièce 767703 PHE3 3 S

GTIN 4013364070899, Clients tariffs no (UE): 90303370, Poids brut: 1.71 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767703 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767703 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767706 PHE3 6 S

GTIN 4013364070837, Clients tariffs no (UE): 90303370, Poids brut: 1.71 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767706 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767706 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767710 PHE3 10 S

GTIN 4013364070851, Clients tariffs no (UE): 90303370, Poids brut: 1.71 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	10 kV
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1080 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767710 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767710 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767720 PHE3 20 S

GTIN 4013364070844, Clients tariffs no (UE): 90303370, Poids brut: 1.89 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	20 kV
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1230 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767720 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767720 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767730 PHE3 30 S

GTIN 4013364070813, Clients tariffs no (UE): 90303370, Poids brut: 1.83 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	30 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767730 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767730 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread

Category "S" for switchgear installations and overhead lines.

3 Produits

Référence de la pièce 767711 PHE3 3 10 S

GTIN 4013364070820, Clients tariffs no (UE): 90303370, Poids brut: 1.86 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1415 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767711 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767711 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767721 PHE3 6 20 S

GTIN 4013364070868, Clients tariffs no (UE): 90303370, Poids brut: 1.93 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1575 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767721 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767721 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767731 PHE3 10 30 S

GTIN 4013364070875, Clients tariffs no (UE): 90303370, Poids brut: 1.99 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767731 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767731 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 30 kV / 50 Hz, M12 Thread, switchable

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of 3 kV to 10 kV. The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

1 Produit

Référence de la pièce 767733 PHE3 U 3 30 S

GTIN 4013364070882, Clients tariffs no (UE): 90303370, Poids brut: 1.99 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1675 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor switchgear installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767733 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767733 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltages up to 25 kV / 50 Hz

For the overhead contact lines of electric railways.
Category "S" for single-ended monophase systems.

1 Produit

Référence de la pièce 767125 PHE3 25 S 50 1P

GTIN 4013364130319, Clients tariffs no (UE): 90303370, Poids brut: 1.96 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	25 kV
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	25 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1680 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Outdoor installations
Application	Overhead contact lines of electric vehicles
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767125 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767125 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltages up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

5 Produits

Référence de la pièce 767903 PHE3 3 S ZK

GTIN 4013364134737, Clients tariffs no (UE): 90303370, Poids brut: 1692.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	3 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767903 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767903 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767906 PHE3 6 S ZK

GTIN 4013364134744, Clients tariffs no (UE): 90303370, Poids brut: 1692.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	6 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767906 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767906 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767910 PHE3 10 S ZK

GTIN 4013364134751, Clients tariffs no (UE): 90303370, Poids brut: 1692.00 g, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	10 kV
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm

Nominal voltage (U_N )	10 kV
Type of voltage	a.c.
Category	S 60
Total length (l_G )	1150 mm
Insertion depth (I_O )	285 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767910 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767910 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767920 PHE3 20 S ZK

GTIN 4013364134768, Clients tariffs no (UE): 90303370, Poids brut: 1.80 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	20 kV
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm

Nominal voltage (U_N )	20 kV
Type of voltage	a.c.
Category	S 61
Total length (l_G )	1300 mm
Insertion depth (I_O )	435 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767920 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767920 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767930 PHE3 30 S ZK

GTIN 4013364134775, Clients tariffs no (UE): 90303370, Poids brut: 1.87 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	30 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	30 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767930 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767930 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 30 kV / 50 Hz, Gear Coupling

Category "S" for switchgear installations and overhead lines.

3 Produits

Référence de la pièce 767941 PHE3 3 10 S ZK

GTIN 4013364134782, Clients tariffs no (UE): 90303370, Poids brut: 1.87 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3 ... 10 kV
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm

Nominal voltage (U_N )	3 ... 10 kV
Type of voltage	a.c.
Category	S 62
Total length (l_G )	1485 mm
Insertion depth (I_O )	620 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767941 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767941 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767951 PHE3 6 20 S ZK

GTIN 4013364134799, Clients tariffs no (UE): 90303370, Poids brut: 1.96 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63
Total length (l_G )	1645 mm
Insertion depth (I_O )	780 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767951 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767951 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767961 PHE3 10 30 S ZK

GTIN 4013364134805, Clients tariffs no (UE): 90303370, Poids brut: 2.02 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767961 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767961 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 36 kV / 50 Hz, Gear Coupling, switchable

The nominal voltage selector switch allows to switch between two nominal voltage ranges. For safety reasons, the voltage detector can only be switched on if the selector switch is switched to the most sensitive range of (3 kV to 10 kV or 6 kV to 20 kV). The switch snaps into the relevant position, thus providing protection against inadvertent switching. A magnetically operated, wear-resistant reed switch changes the switching position.

Category "S" for switchgear installations and overhead lines.

2 Produits

Référence de la pièce 767960 PHE3 U 3 30 S ZK

GTIN 4013364134812, Clients tariffs no (UE): 90303370, Poids brut: 2.02 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	3 ... 10 / 10 ... 30 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767960 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767960 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767944 PHE3 U 6 36 S SN7728

GTIN 4013364277731, Clients tariffs no (UE): 90303370, Poids brut: 2.16 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm

Nominal voltage (U_N )	6 ... 20 / 20 ... 36 kV
Type of voltage	a.c.
Category	S 64
Total length (l_G )	1745 mm
Insertion depth (I_O )	880 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767944 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767944 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Thread M12

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 Produits

Référence de la pièce 767740 PHE3 6 20 SL

GTIN 4013364071063, Clients tariffs no (UE): 90303370, Poids brut: 2.15 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1575 / 980 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767740 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767740 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767750 PHE3 10 30 SL

GTIN 4013364071070, Clients tariffs no (UE): 90303370, Poids brut: 2.21 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1675 / 980 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Switchgear installations and overhead lines
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767750 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767750 a été ajouté au panier.

Aller à la boutique en ligne

Nominal Voltage Ranges up to 30 kV / 50 Hz, Test Kit, Gear Coupling

With two test prods of Category "S" for switchgear installations and overhead lines and of Category "L" for overhead lines.

2 Produits

Référence de la pièce 767940 PHE3 6 20 SL ZK

GTIN 4013364134829, Clients tariffs no (UE): 90303370, Poids brut: 2.09 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	6 ... 20 kV
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm

Nominal voltage (U_N )	6 ... 20 kV
Type of voltage	a.c.
Category	S 63 / L 71
Total length (l_G )	1650 / 1050 mm
Insertion depth (I_O )	780 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767940 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767940 a été ajouté au panier.

Aller à la boutique en ligne

Référence de la pièce 767950 PHE3 10 30 SL ZK

GTIN 4013364134836, Clients tariffs no (UE): 90303370, Poids brut: 2.14 kg, Prix unitaire: 1.00 pc(s)

Images

Open PDF

Plus d'informations

Certificats

Caractéristiques techniques

Nominal voltage (U_N )	10 ... 30 kV
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm

Nominal voltage (U_N )	10 ... 30 kV
Type of voltage	a.c.
Category	S 64 / L 71
Total length (l_G )	1750 / 1050 mm
Insertion depth (I_O )	880 / 185 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	-25 °C ... +55 °C, climatic category N
Design	Complete
For use at	_
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines or overhead lines
Design	Single-pole
Indication	Acoustic and visual
Self-testing element	Yes
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube

Le produit 767950 a été ajouté au bloc-notes

Aller au bloc-notes

Le produit 767950 a été ajouté au panier.

Aller à la boutique en ligne
